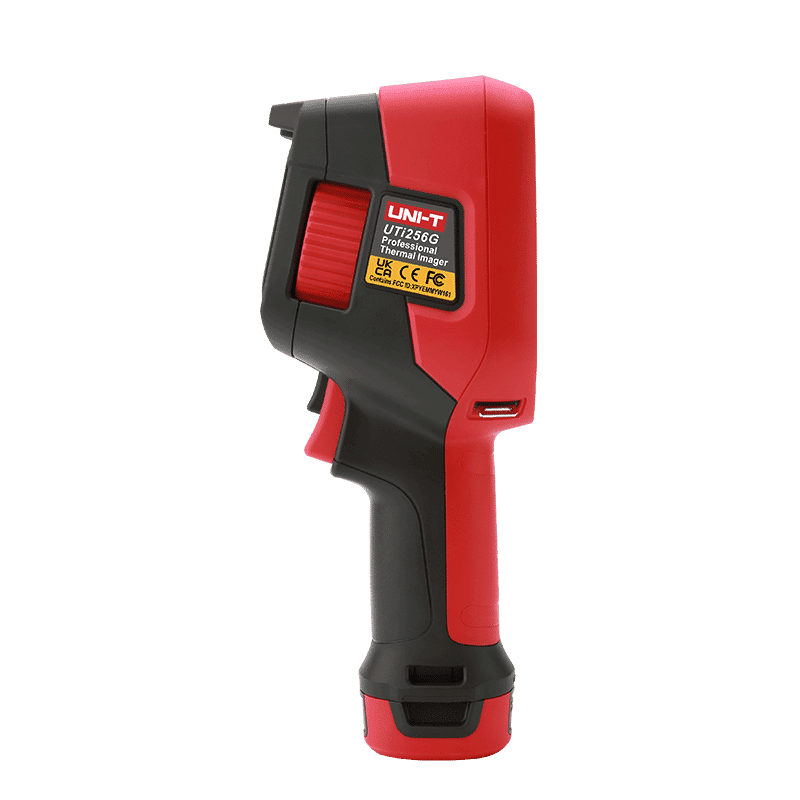

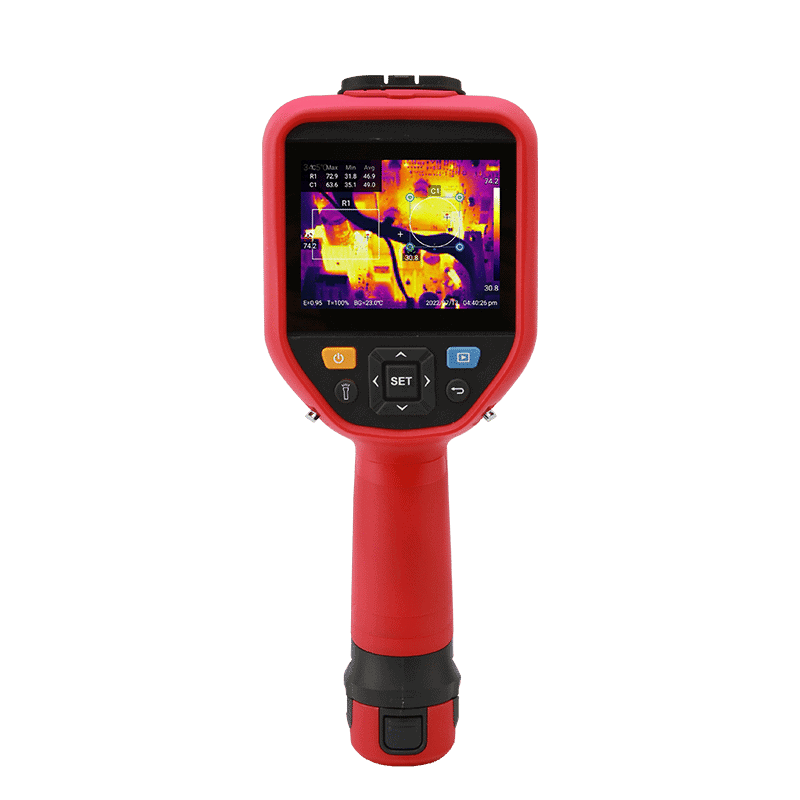

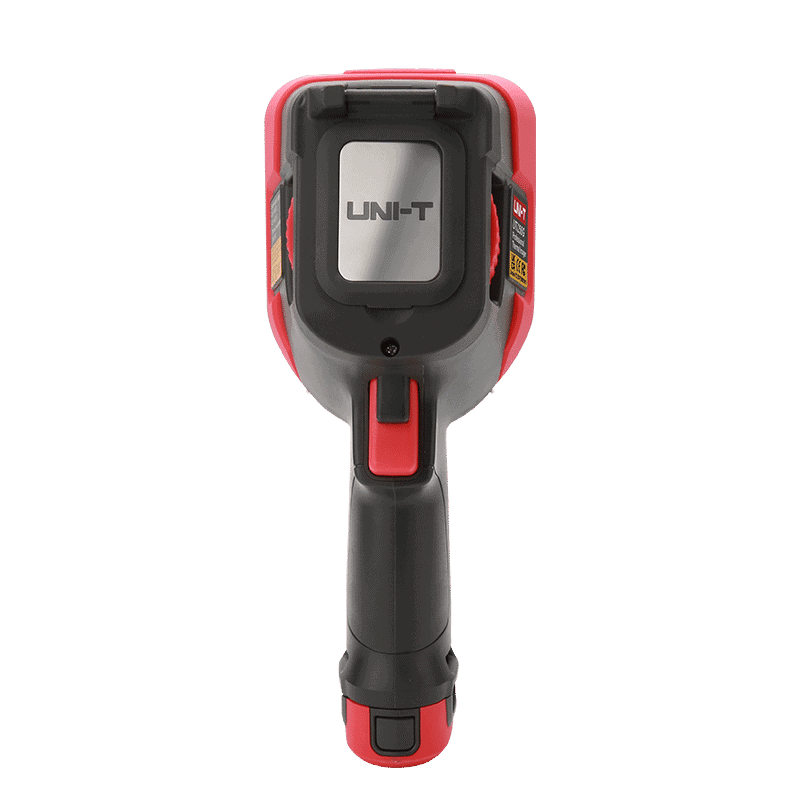

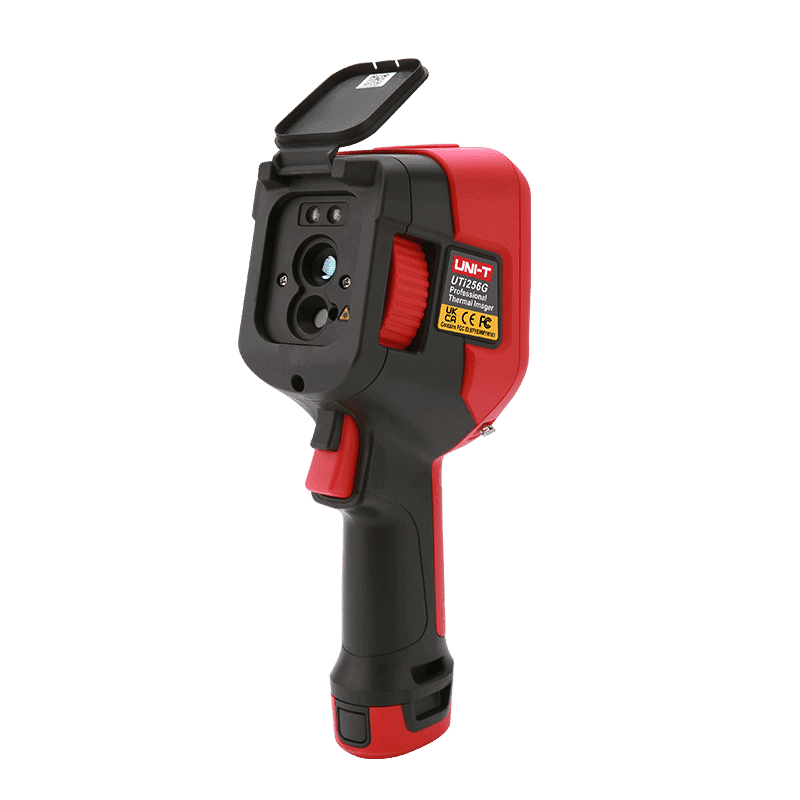

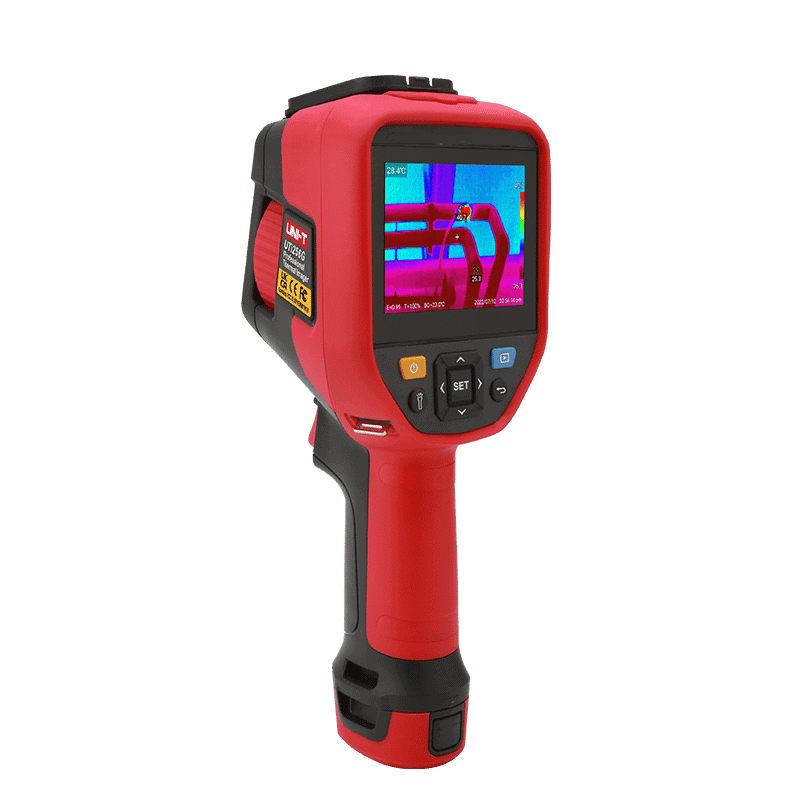

Uni-T UTi256G Professional Enhanced Thermal Camera

SKU: UTI256G
Where To BuyRequest A Quote

Use in solar panel inspection, electric power tower inspection, electricity facilities inspection, automotive maintenance,mechanical equipment inspection, heating equipment inspection, building&HVAC inspection and other wide range applications: petrochemical,metallurgy,industry etc.

SKU: UTI256G Categories: ,

Description

UTi256G is a professional enhanced thermal camera specially designed for industrial use with high IR resolution 256×192 and wide temperature range:-20℃~550℃. The professional manual focus lens can flexibly adjust the focal length according to different objective distances and provide high-quality images. The 3.5’’ large IPS touch screen take more efficient and convenient operation experience for users. UTi256G also supports various outstanding functions: such as Wi-Fi, voice recording, laser pointer, on-screen analyzer, etc. They are perfect troubleshooting tools for many industrial applications.

APPLICATIONS:

  • Solar panel inspection, electric power tower inspection, electricity facilities inspection, automotive maintenance, mechanical equipment inspection, heating equipment inspection, building&HVAC inspection and other wide range applications: petrochemical, metallurgy, industry etc.

FEATURES:

  • 3.5″ IPS touchscreen (640×480)
  • IR resolution:256×192
  • Temperature measurement range: -20℃to 550℃
  • On-screen analyzer :3 Points/3 Lines/3 Rectangles/3 Circles
  • Digital camera resolution: 5MP
  • Focus: Manual focus
  • Digital zoom: 2x, 4x
  • Wi-Fi and Bluetooth connection through Mobile App
  • PC software: analysis and real-time image projection
  • Voice recording
  • Image modes: Thermal, Visual image, Fusion,PIP
  • Color palettes: 7(White hot, Black hot, Red hot, Ironbow, HC Rainbow, Rainbow, Lava)
  • Isotherm: 5(Auto/Manual/Above/Below/Section)
  • 5200mAh replaceable battery pack (Type-C rechargeable)
  • IP54
  • 2m drop proof.

INCLUDES:
1 x  UTi256G, 1 x Micro SD card, 1 x Type-C USB cable, 1 x Wrist strap, 2 x Li-ion battery, Documents download operation guide card, English manual and 12-month warranty

SPECIFICATIONS:

Technical Data
IR resolution (Pixels) 256×192
Display 3.5‘’ Touch (640×480)
Field of view(FOV) 28°×20°
Thermal sensitivity(NETD) ≤40mK
Spatial resolution(IFOV) 1.91mrad
Frame rate ≤30Hz
Spectral range 7.5~14µm
Focus Manual
Temperature measurement range   -20℃~550℃
Accuracy ±2℃ or ±2% whichever is greater
Emissivity 0.01~1.00 adjustable (0.95 default)
Functions
Colour palettes 7
(White hot, Black hot, Red hot, Ironbow, Rainbow HC, Rainbow, Lava)
Image modes Thermal, Visual image, Fusion, PIP
On-screen analyzer 3 Points/3 Lines/3 Rectangles/3 Circles
Digital camera resolution 5MP
Digital zoom 2x, 4x
Hi/Lo temperature alarm Icon
Isotherm Auto/Manual/Above/Below/Section
Software analysis PC+APP
Voice recording
Wi-Fi / Bluetooth √/√
Laser pointer
General Characteristics
Battery Detachable Li-ion battery pack(3.7V 5200mAh)
Battery operation time About 5 hours (with Wi-Fi off)
USB Type-C
IP rating IP54
Drop-proof 2m
Storage 8GB Internal
32GB External
Image storage format JPEG
Certificates CE,UKCA,FCC,RoHS
Product net weight 880g
Product size 261mm×104mm×97mm
Packing Details
Standard accessories Micro SD card, Type-C USB cable, Wrist strap, English manual, Li-ion battery pack×2, Documents download operation guide card
Standard individual packing Toolbox,box

Documents

Uni-T UTi256G Professional Enhanced Thermal Camera PC Software User Manual

Uni-T UTi256G Professional Enhanced Thermal Camera English Manual
