Description

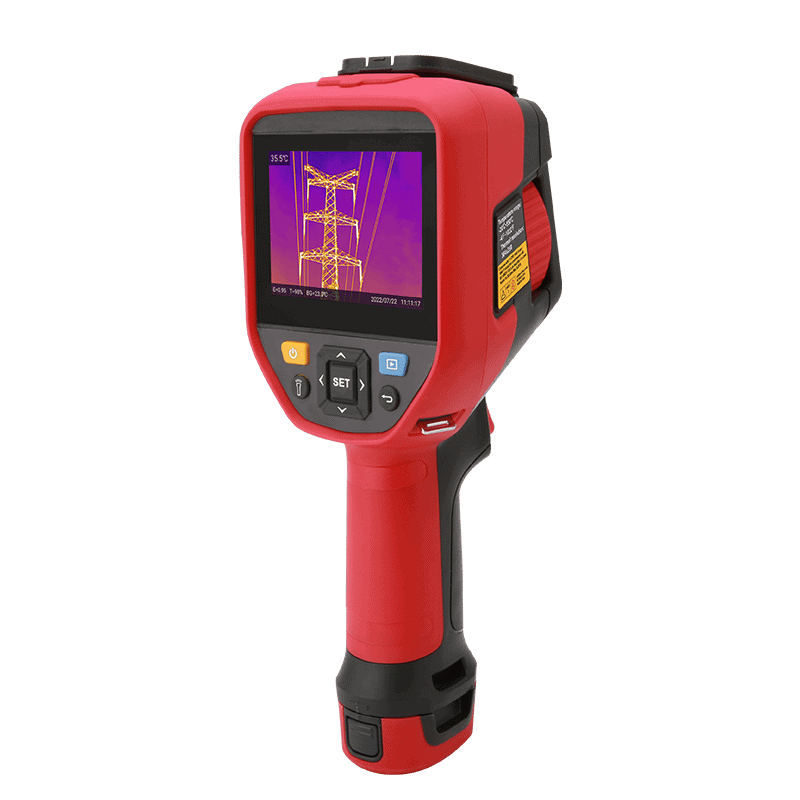

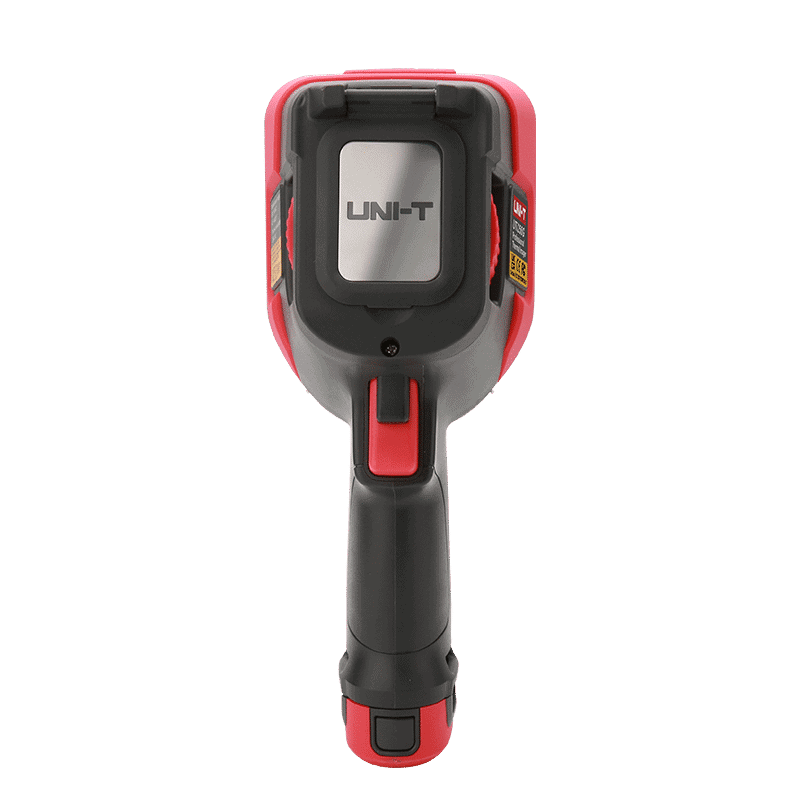

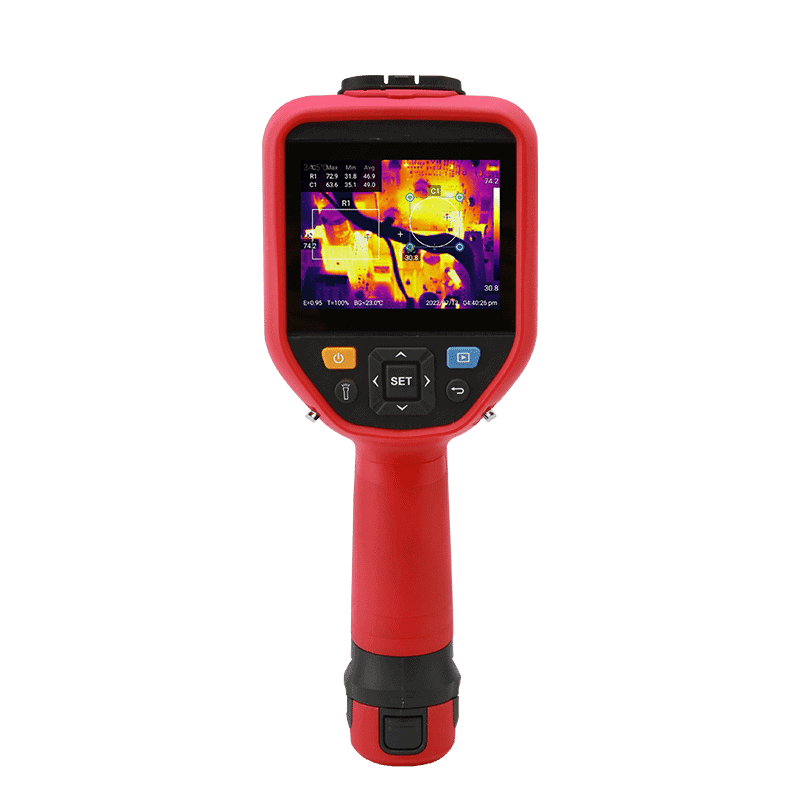

UTi384G is a professional enhanced thermal camera that specially designed for industrial use with high IR resolution 384×288 and wide temperature range:-20℃~550℃. The professional manual focus lens can flexibly adjust the focal length according to different objective’s distances and provide high quality image. The 3.5’’ large IPS touch screen take more efficient and convenient operation experience for users. UTi384G also supports various outstanding functions: such as Wi-Fi, voice recording, video recording, laser pointer, on-screen analyzer, Isotherm,etc. They are perfect troubleshooting tools for many industrial applications.
APPLICATIONS:
- Solar panel inspection, electric power tower inspection, electricity facilities inspection, automotive maintenance， mechanical equipment inspection, heating equipment inspection, building&HVAC inspection and other wide range applications: petrochemical, metallurgy, industry etc.
FEATURES:
- 3.5″ IPS touchscreen (640×480)
- IR resolution:384×288
- Temperature measurement range: -20℃ to 550℃
- On-screen analyzer:5 Points/5 Lines/5 Rectangles/5 Circles
- Digital camera resolution: 5MP
- Focus: Manual focus
- Digital zoom: 2x, 4x
- Wi-Fi and Bluetooth connection through Mobile App
- PC software: analysis and real-time image projection
- Video recording
- Voice recording
- Image modes: Thermal, Visual image, Fusion, PIP
- Color palettes: 7(White hot, Black hot, Red hot, Ironbow, HC Rainbow, Rainbow, Lava)
- Isotherm: 5(Auto/Manual/Above/Below/Section)
- 5200mAh replaceable battery pack (Type-C rechargeable)
- IP54
- 2m drop proof.
INCLUDES:
1 x UTi384G, 1 x Micro SD card, 1 x Type-C USB cable, 1 x Wrist strap, 2 x Li-ion battery, Documents download operation guide card, 1 x English manual and 12-month warranty.
SPECIFICATIONS:
| Technical Data | |
| IR resolution (Pixels) | 384×288 |
| Display | 3.5‘’ Touch (640×480) |
| Field of view(FOV) | 42°×30° |
| Thermal sensitivity(NETD) | ≤40mK |
| Spatial resolution(IFOV) | 1.91mrad |
| Frame rate | ≤30Hz |
| Spectral range | 7.5~14µm |
| Focus | Manual |
| Temperature measurement range | -20℃~550℃ |
| Accuracy | ±2℃ or ±2% whichever is greater |
| Emissivity | 0.01~1.00 adjustable (0.95 default) |
| Functions | |
| Colour palettes | 7 (White hot, Black hot, Red hot, Ironbow, Rainbow HC, Rainbow, Lava) |
| Image modes | Thermal,Visual image,Fusion,PIP |
| On-screen analyzer | 5 Points/5 Lines/5 Rectangles/5 Circles |
| Digital camera resolution | 5MP |
| Digital zoom | 2x, 4x |
| Hi/Lo temperature alarm | Icon |
| Isotherm | Auto/Manual/Above/Below/Section |
| Software analysis | PC+APP |
| Video recording | √ |
| Voice recording | √ |
| Wi-Fi / Bluetooth | √/√ |
| Laser pointer | √ |
| General Characteristics | |
| Battery | Detachable Li-ion battery pack(3.7V 5200mAh) |
| Battery operation time | About 5 hours (with Wi-Fi off) |
| USB | Type-C |
| IP rating | IP54 |
| Drop-proof | 2m |
| Storage | 8GB Internal 32GB External |
| Image/Video storage format | pic: JPEG; video: MP4/irgd |
| Certificates | CE,UKCA,FCC,RoHS |
| Product net weight | 880g |
| Product size | 261mm×104mm×97mm |
| Packing Details | |
| Standard accessories | Micro SD card, Type-C USB cable, Wrist strap, English manual, Li-ion battery pack×2, Documents download operation guide card |
| Standard individual packing | Toolbox, box |
