Description

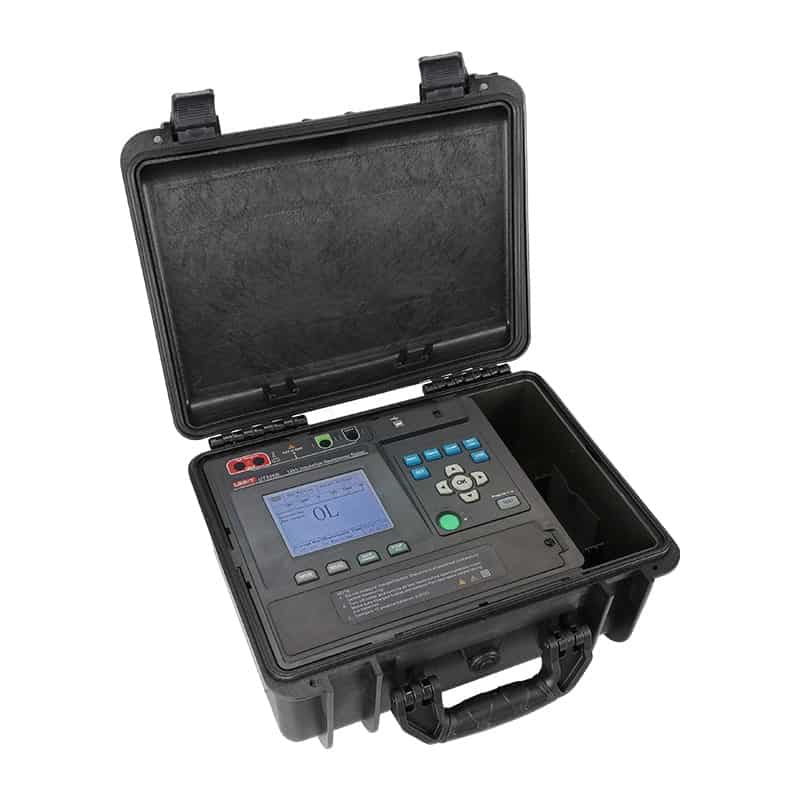

The UT516B is a digital high-voltage insulation resistance tester with 6 ranges: 500V, 1000V, 2500V, 5000V, 10000V and 12000V. Fine adjustment of voltage with 10% step at each range (except 12000V) is available. Test data can be saved in the tester memory and transferred to a PC via the dedicated USB cable, or be transferred to a PC in real-time. The tester, with high performance and easy operation, is widely used in the measurement and maintenance of power equipment and power supply circuits.
FEATURES:
- AC/DC voltage
- USB data transfer
- Low battery indication
- Data storage
- LCD backlight
- Polarization Index
- Over-range alarm
- 9999 Max display
- Comparative measurement
- Measurement time selection.
INCLUDES:

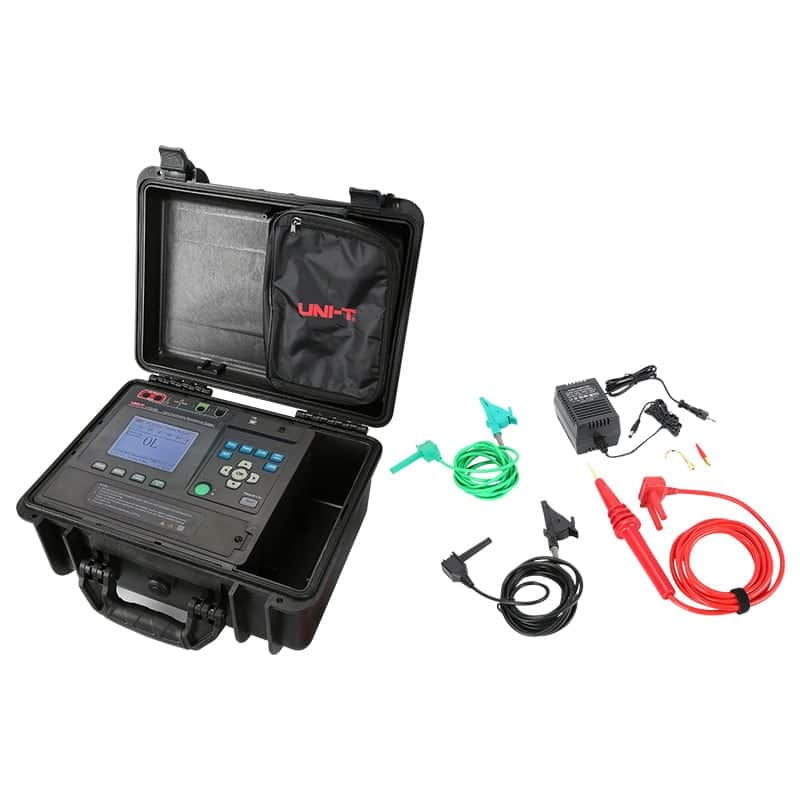

1 x UT516B, Test leads (red/black/green 1 each), USB cable, power adaptor, 1.5V alkaline batteries, 1 x English manual and 12-month warranty.
SPECIFICATIONS:
| Specifications | Range | UT516B | |
| Insulation Resistance Measurement | 500V | 0.50MΩ~4.99G | ±(5%+5) |
| 5.00G-49.9GΩ | ±(10%+10) | ||
| 50.0GΩ-500GΩ | for reference only | ||
| 1000V | 1.00MΩ-9.99GΩ | ±(5%+5) | |
| 10.0G-99.9GΩ | ±(15%+10) | ||
| 100GΩ-1000GΩ | for reference only | ||
| 2500V | 2.50MΩ-24.9GΩ | ±(5%+5) | |
| 25.0G-249GΩ | ±(15%+10) | ||
| 250GΩ-2.5TΩ | for reference only | ||
| 5000V | 5.00MΩ-49.9GΩ | ±(5%+5) | |
| 50G-499GΩ | ±(15%+20) | ||
| 500GΩ-5.0TΩ | for reference only | ||
| 10000V | 10.0MΩ-99.9GΩ | ±(10%+10) | |
| 100G-999GΩ | ±(20%+20) | ||
| 1000GΩ-10TΩ | for reference only | ||
| 12000V | 12.0MΩ-99.9GΩ | ±(10%+10) | |
| 100G-999GΩ | ±(20%+20) | ||
| 1000GΩ-10TΩ | for reference only | ||
| Output voltage | 500V | 0~+10% | |
| 1000V | 0~+10% | ||
| 2500V | 0~+10% | ||
| 5000V | 0~+10% | ||
| 10000V | -5~+10% | ||
| 12000V | -5~+10% | ||
| Load current | 500V (R=500KΩ) 1mA | 0%—+20% | |
| 1000V (R=1MΩ) 1mA | 0%—+20% | ||
| 2500V (R=2.5MΩ) 1mA | 0%—+20% | ||
| 5000V (R=5MΩ) 1mA | 0%—+20% | ||
| 10000V (R=10MΩ) 0.15~1.2mA | 0%—+20% | ||
| 12000V (R=12MΩ) 0.15~1.2mA | 0%—+20% | ||
| DC voltage measurement | 30V~1000V | ±(3%+5) | |
| AC voltage measurement | 30V~750V (50~60Hz) | ±(3%+5) | |
| Features | |||
| PC software for data analysis | √ | ||
| Backlight Function | √ | ||
| Data storage | 999 sets of date | √ | |
| Dielectric Absorption Ratio (DAR) | 0.00~999 | √ | |
| Polarization Index (PI) | 0.00~999 | √ | |
| General Characteristics | |||
| Power | 1.5V alkaline batteries (LR14) X 10, power adapter | ||
| Product colour | Red and grey | ||
| Product net weight | 6.6kg | ||
| Product size | 410*342*204mm | ||
| Standard accessories | User manual, Test leads (red/black/green 1 each), USB cable, power adaptor, 1.5V alkaline batteries, | ||
| Standard individual packing | Box, toolbox | ||
