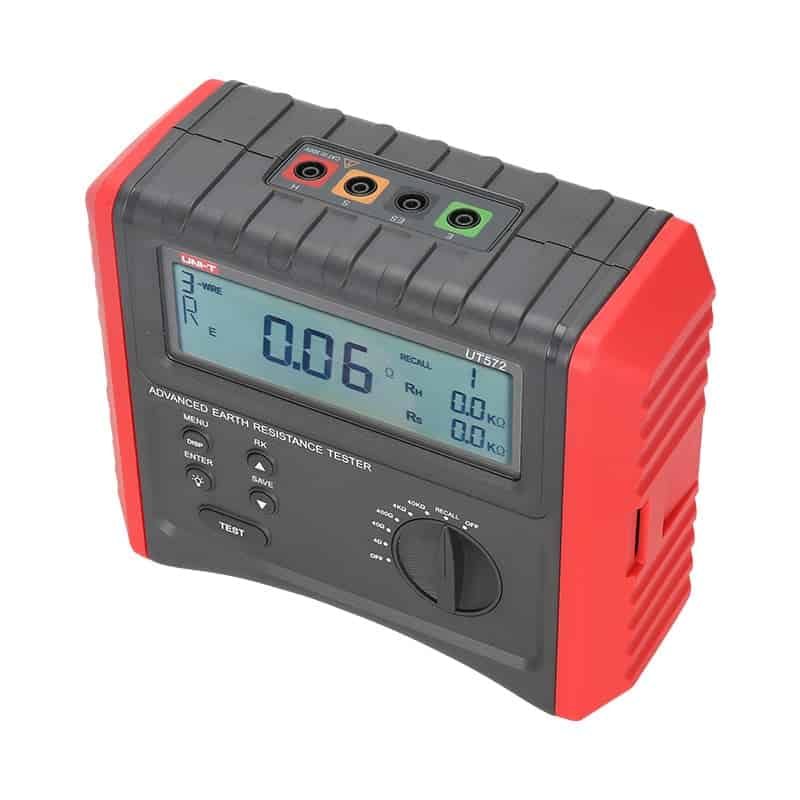

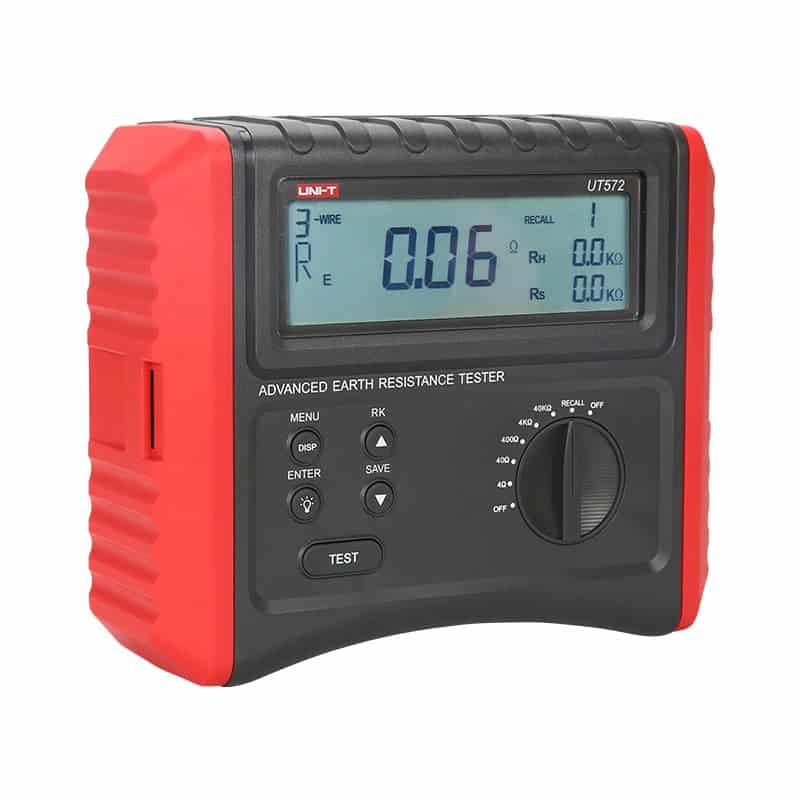

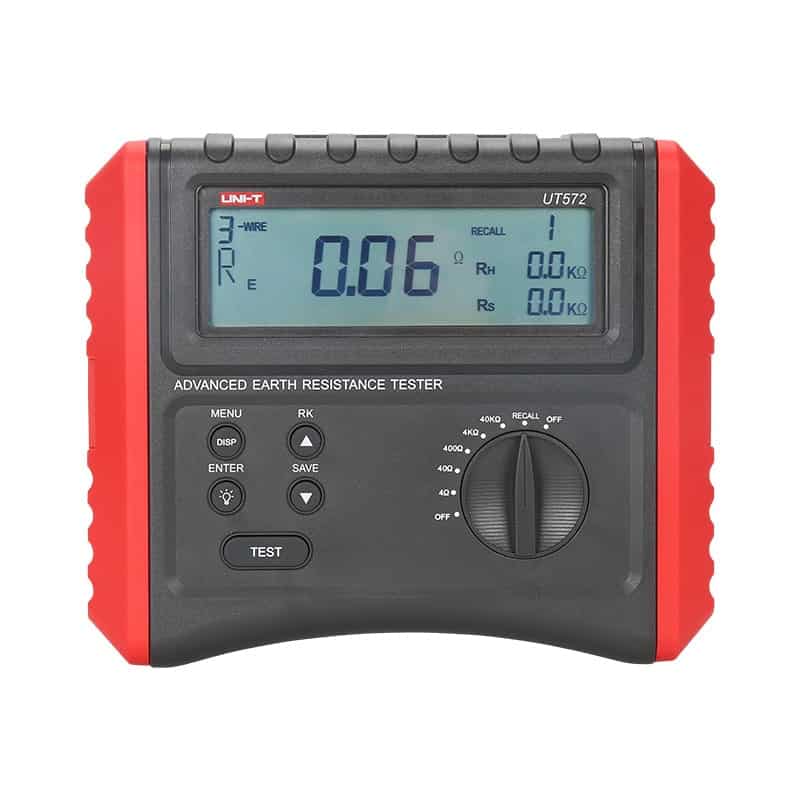

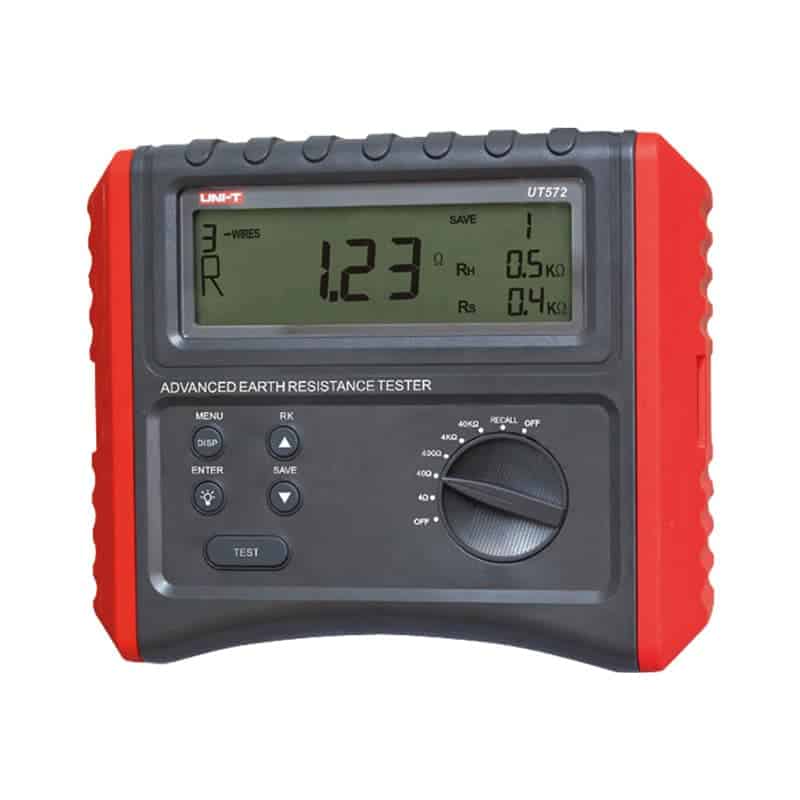

Uni-T UT572 Advanced Earth Resistance Tester

SKU: UT572
Where To BuyRequest A Quote

UT572 is for measuring earth resistance and soil resistivity.

Description

UT572 is for measuring earth resistance and soil resistivity. It can automatically check interface connection and detect interference voltage/frequency, with data hold and indication functions. It can perform 2/3/4-wire measurements for different on-site applications, such as power equipment wiring and lightning protection equipment.

FEATURES:

  • Large 4-digit LCD Display, 5s sampling time
  • 2/3/4-wire earth resistance and soil resistivity measurements
  • Selectable test frequencies (94Hz/128Hz)
  • Disturbance voltage (Ust) and frequency (Fst) measurement
  • Earth resistance, RH and RS measurements
  • LCD backlight; auto power off
  • Data hold
  • 20 sets of data storage
  • Double insulation
  • Compensating resistance RK measurement.

INCLUDES:
1 x  UT572, Batteries, simple test leads with alligator clips(double plugs x 1, single plug x 1), earth spike x 4, standard test leads with alligator clips (40m red x 1, 20m red x 1, 20m black x 1, 10m yellow x 1, 5m green x 1), gallus, 1 x English manual and 12-month warranty.

SPECIFICATIONS:

Specifications Range UT572
Earth resistance (Re) ±(3%+15)
40Ω ±(3%+5)
400Ω
4kΩ
40kΩ
Soil resistivity (ρ) ρ=2×π×L×Re (Depending on the test result
of Re)
40Ω
400Ω
4kΩ
40kΩ
Disturbance voltage (Ust) 50V (DC voltage/40Hz~500Hz) ±(3%+3)
Disturbance frequency (Fst) 40Hz~500Hz ±(1%+2)
Features
2/3/4-wire test
Earth resistance test frequency 94/128Hz
Soil resistivity test distances 1~40m
Earth resistance RH and RS test
Compensating resistance RK test
Data hold
Data storage 20
LCD backlight
Auto power off Around 5 minutes
Low battery indication ≤9.5V
General Characteristics
Power 1.5V battery (LR6) x 8
Display 125mm x 37mm
Product colour Red and grey
Product net weight 1100g
Product size 210mm x 175mm x 90mm
Standard accessories Batteries, simple test leads with alligator clips(double plugs x 1, single plug x 1), earth spike x 4, standard test leads with alligator clips (40m red x 1, 20m red x 1, 20m black x 1, 10m yellow x 1, 5m green x 1), gallus
Standard individual packing Box, carrying bag, toolbox, English manual

Documents

Uni-T UT572 Advanced Earth Resistance Tester English Manual

Uni-T UT572 Advanced Earth Resistance Tester Product Flyer
