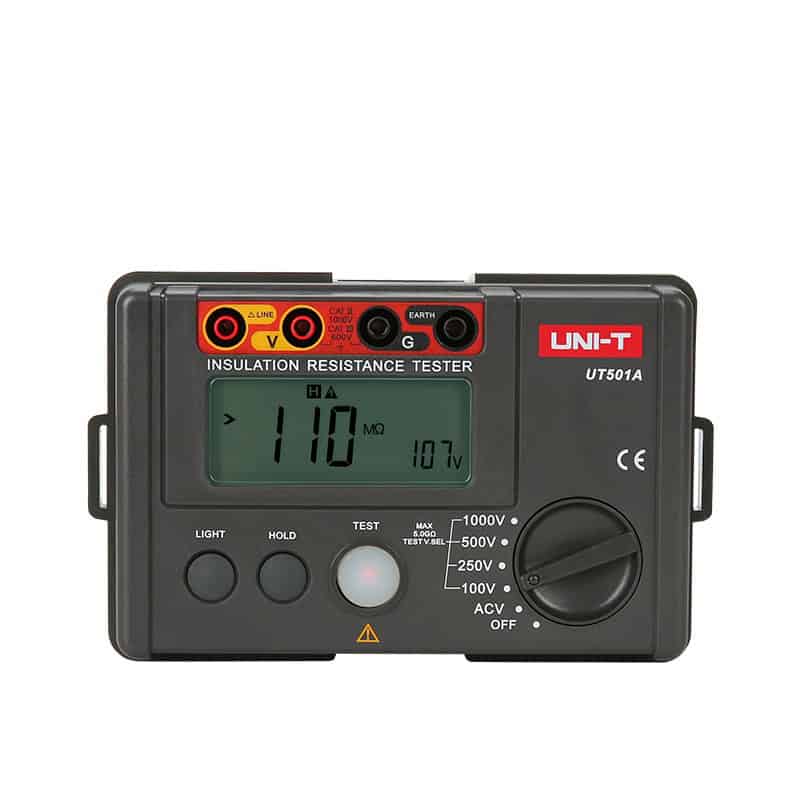

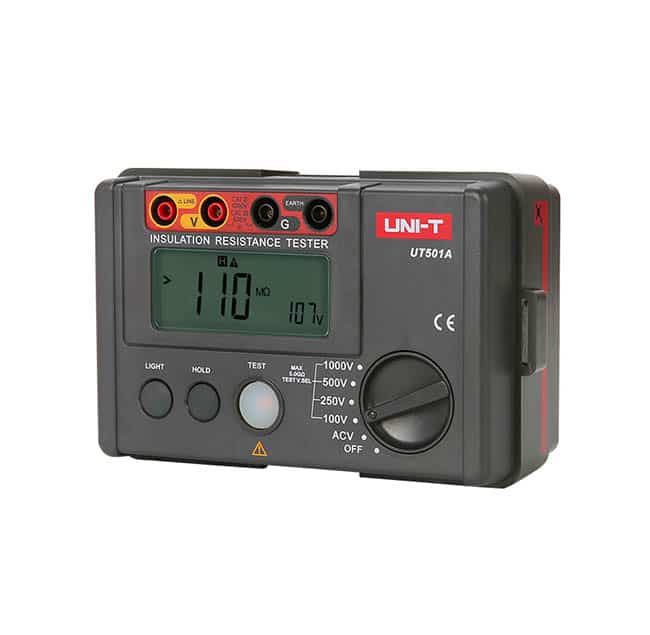

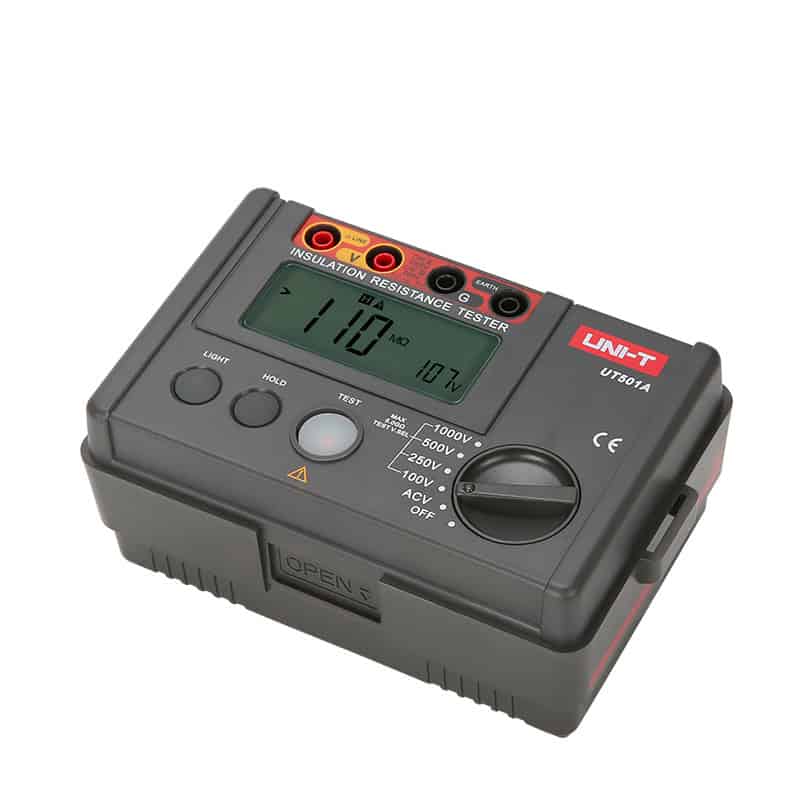

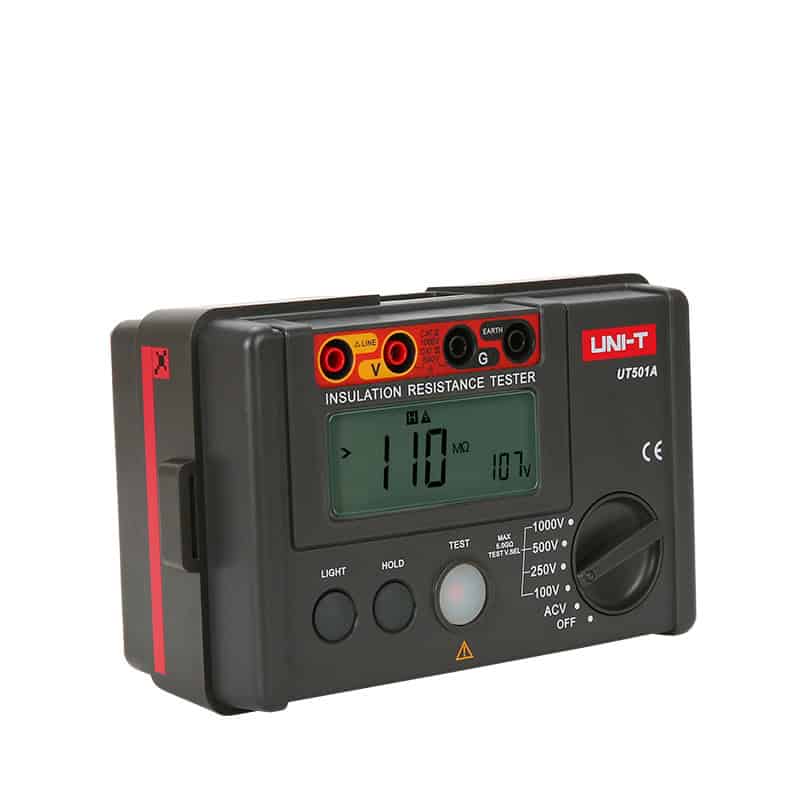

UT501 100V-1000V Insulation Resistance Meter Ground Tester
UT500 series insulation testers are used to measure the insulation resistance of electrical equipment and household appliances. This is done by measuring the insulation resistance between electrical circuits or between circuits and ground. UT500 series can measure insulation resistance, AC Voltage, low resistance, PI (Polarization Index) and DAR (Dielectric Absorption). These are ideal tools for ensuring transformers, generators, high voltage motors, power capacitors, power cables, arresters and other electrical equipment that can operate in a safe and accurate manner.
- 100-1000V
- 2000 count LCD display
- Overload indication
- LCD Backlight
- AC voltage measurement
- Alarm Light Display
- Alarm Buzzer
- High Voltage Indication
- Auto power off
- Auto discharge
- Continuous measurements mode, red warning light and buzzer function
- Test Voltage Vice Display
- Automatic measurement
- Low Battery Indication
- 10MΩ internal resistance test
- Auto Discharge.
INCLUDES:
1 x UT501A, 1 x Batteries 1 x Test Leads, 1 x carry case, 1 x set alligator clips, 1 x gallus, 1 x English user manual and 12-month warranty.
SPECIFICATIONS:
| Specifications | Range | UT501A | UT501B | UT502A | |
| Insulation resistance (Ω) | Test voltages | 100V/250V/500V/1000V | 0%~10% | ||
| 250V/500V/1000V | 0%~10% | ||||
| 500V/1000V/2500V | 0%~10% | ||||
| 100V | 0MΩ~100MΩ | ±(3%+5) | |||
| 250V | 0MΩ~99.9MΩ | ±(3%+5) | ±(3%+5) | ||
| 100MΩ~5GΩ | ±(5%+5) | ±(5%+5) | |||
| 500V | 0MΩ~99.9MΩ | ±(3%+5) | ±(3%+5) | ±(3%+5) | |
| 100MΩ~5GΩ | ±(5%+5) | ±(5%+5) | ±(5%+5) | ||
| 1000V | 0MΩ~99.9MΩ | ±(3%+5) | ±(3%+5) | ±(3%+5) | |
| 100MΩ~5GΩ | ±(5%+5) | ±(5%+5) | ±(5%+5) | ||
| 2500V | 0MΩ~99.9MΩ | ±(3%+5) | |||
| 100MΩ~9.9GΩ | ±(5%+5) | ||||
| 10GΩ~20GΩ | ±(10%+5) | ||||
| Load current | 50V (R=50kΩ) 1mA | 0%~10% | 0%~10% | 0%~10% | |
| 100V (R=100kΩ) 1mA | 0%~10% | 0%~10% | 0%~10% | ||
| 250V (R=250kΩ) 1mA | 0%~10% | 0%~10% | 0%~10% | ||
| 500V (R=500kΩ) 1mA | 0%~10% | 0%~10% | 0%~10% | ||
| 1000V (R=1MΩ) 1mA | 0%~10% | 0%~10% | 0%~10% | ||
| 2500V (R=1MΩ) 1mA | 0%~10% | ||||
| Short-circuit current | <2mA | <2mA | <2mA | ||
| Low resistance (Ω) | 0.01Ω~200Ω (about 5.0V/>200mA） | ±(2%+3) | ±(2%+3) | ||
| AC voltage (V) | 30V~750V | ±(2%+3) | |||
| 30V~600V | ±(2%+3) | ±(2%+3) | |||
| Features | |||||
| Display count | 2000 | 2000 | 2000 | ||
| DAR | 60s/15s and 60s/30s | √ | √ | ||
| PI | √ | √ | |||
| Auto range/Low battery indication | √ | √ | √ | ||
| LCD backlight/Light alarm | √ | √ | √ | ||
| Buzzer alarm/High voltage indication | √ | √ | √ | ||
| Overload indication/Auto discharge | √ | √ | √ | ||
| Test voltage secondary display | √ | √ | √ | ||
| 10MΩ internal resistance test | √ | √ | √ | ||
| Meets IEC 61557 | 61557-1:2007; 61557-2:2007; 61557-4:2007 (UT502A only) | ||||
| General Characteristics | |||||
| Power | 1.5V battery (LR6) x 6 | ||||
| Display | 70.6mm x 34mm | ||||
| Product colour | Red and grey | ||||
| Product net weight | 500g | ||||
| Product size | 150mm x 100mm x 71mm | ||||
| Standard accessories | Batteries, test leads, alligator clips, gallus, test probes (UT502A) | ||||
| Standard individual packing | Box, carrying bag, English manual | ||||
