Uni-T UT309C Professional Dual Laser Infrared Thermometer

SKU: UT309C
Where To BuyRequest A Quote

UT309 series professional infrared thermometer can determine surface temperature through the energy radiated by the target surface.

Description

Professional Dual Infrared Laser Thermometer (-35 ~ 650°C)

UT309 series professional infrared thermometer can determine surface temperature through the energy radiated by the target surface. It is designed to meet some of the highest protection ratings in UNI-T’s product line, IP65 and 3m drop-proof. With a rapid response rate of 250ms, high measurement accuracy, and multiple scanning modes.

The UT309 proves to be a necessary tool for engineers and technicians working in various fields such as electrical distribution inspection, HVACR maintenance, transportation equipment inspection, instrument repair, and many more.

FEATURES:

  • 3m drop-proof
  • IP65
  • Large LED display with backlight
  • MAX/MIN/AVG/DIF mode
  • High/Low-temperature alarm with LED indication
  • Lock measurement
  • Data hold/auto power-off
  • °C/°F selection/Laser switch
  • Display hold(s) 8
  • Low battery indication
  • Lock measurement
  • Tripod mounting hole.

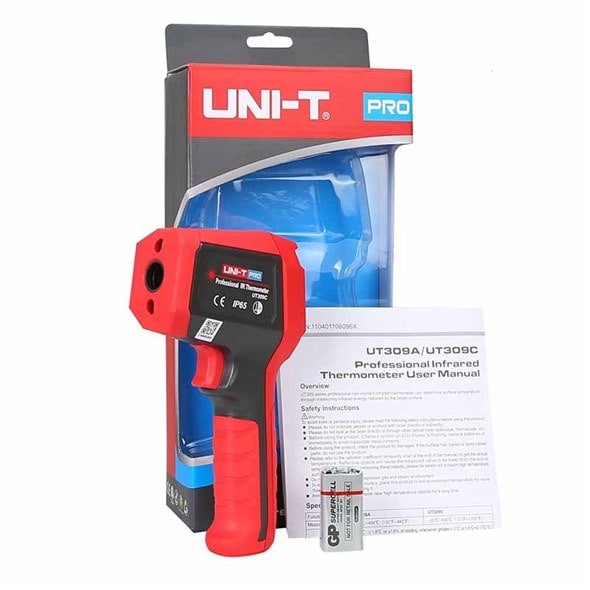

INCLUDES:
1 x UT309C, 1 x carrying bag, 1 x  PC software CD, 1 x English manual and 12-month warranty.

SPECIFICATIONS:

Specifications UT309C
Temperature range -35℃~650℃
-31℉~1202℉
Accuracy ≥0°C: ±1.8°C or ±1.8%
<0°C: ±(1.8°C+0.1°C/°C)
≥32°F: ±3.6°F or ±1.8%
<32°F: ±(3.6°F+0.1°F/°F)
Resolution 0.1°C/0.1°F
D:S ratio 12:01
Response time 250ms (95% of reading)
Emissivity 0.10~1.0 adjustable
Number of lasers Dual lasers
Laser type Class 2
Laser power <1mW
Laser wavelength 630nm~670nm
Spectral response 8μm~14μm
Features
°C/°F selection/Laser switch
Display hold(s) 8
Data hold/Auto power off
Low battery indication
Lock measurement
MAX/MIN/AVG/DIFF mode
High alarm (red LED)
Low alarm (blue LED)
LCD backlight
Tripod mounting hole
General Characteristics
Power 9V battery (6F22)
Display 32mm x 29mm
Product colour Red and grey
Product net weight 292g
Product size 189mm x 118mm x 55mm
Standard accessories PC software CD, carrying bag
Standard individual packing box, blister, English manual

Documents

UT309C Professional Dual Laser Infrared Thermometer English Manual

UT309C Professional Dual Laser Infrared Thermometer Flyer
