Uni-T UT300S Non-Contact Infrared Thermometer

SKU: UT300S
Where To BuyRequest A Quote

Lightweight Infrared Thermometer -32℃~400℃.

Description

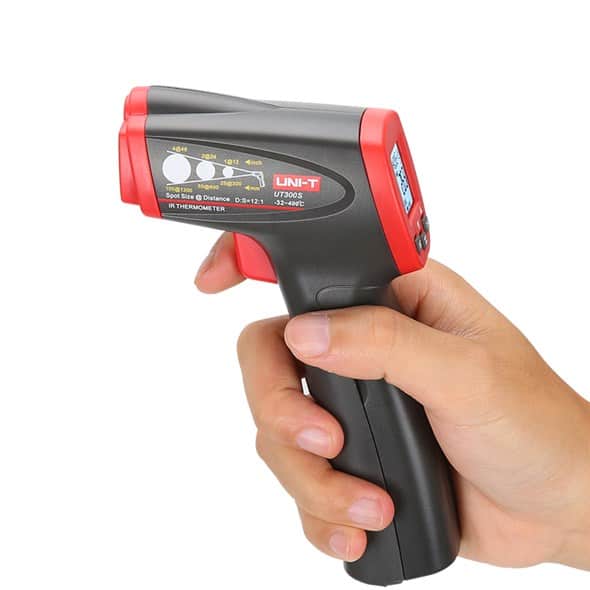

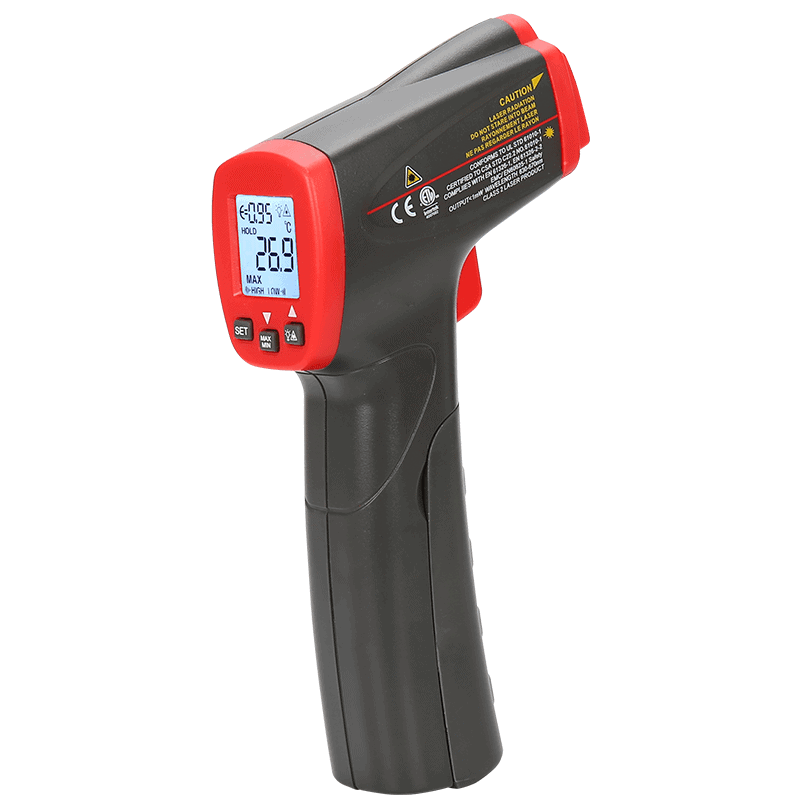

UNI-T UT300S Handheld Digital Non-Contact IR Infrared Thermometer Temperature Gun with LCD Backlight

The UT300S from UNI-T is an infrared thermometer that can measure the temperature of surfaces without having to touch it. With a deviation of only 2%, this thermometer is very accurate and very affordable. The thermometer has an adjustable’ emissivity’ which makes it possible to compensate for the material being measured. The meter can measure temperatures from -32°C to 400°C and has a measuring point-size ratio of 10:1. This means that at a distance of 10 metres, the thermometer performs a measurement over a surface with a diameter of 1 metre.

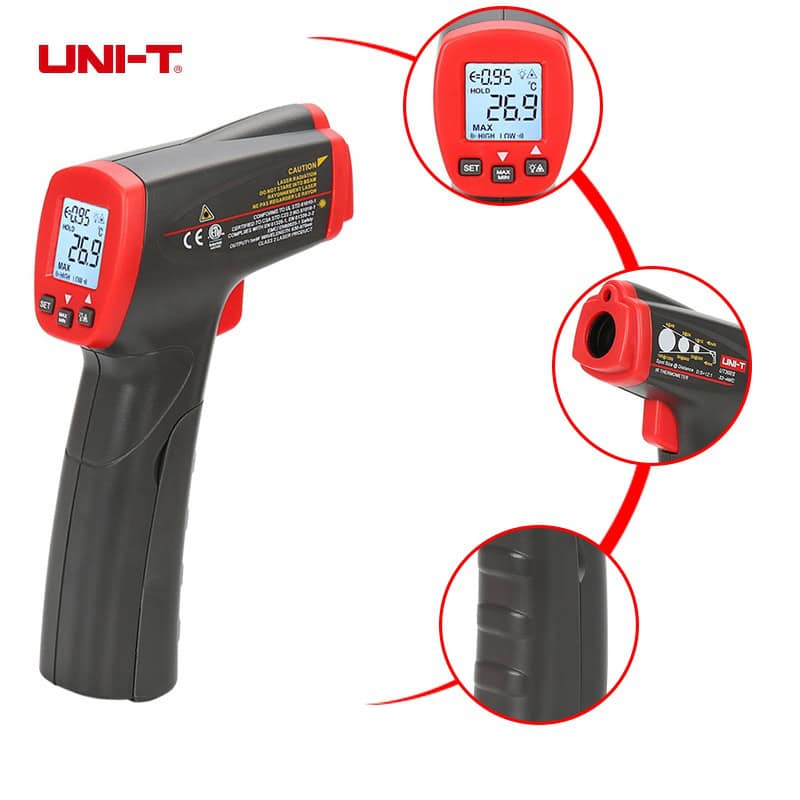

The meter’s display is equipped with a backlight, so you can also read off the screen in the dark. It is also possible to display and maintain Min and Max values during measurements. You can also switch between Celsius or Fahrenheit with just one touch of a button. The laser pointer can also be switched on or off if necessary.

UT300 series infrared thermometers are lightweight and small. Objects can be quickly and accurately measured from a distance with 0.1°C resolution. These devices consume very little power, suitable for indoor and outdoor use.

Applications:
Product quality control and inspection, Industrial machinery, HVAC, Home, and Automobile



FEATURES:

  • Dual display (real-time/MAX, real-time/MIN)
  • ℃/℉ options
  • Laster on/off
  • Display Hold (8s)
  • LCD backlight
  • Auto power off
  • Low battery indication
  • Auto data hold
  • Optional (on/off) laser pointer.

INCLUDES:
1 x UT300S, box, English manual, batteries and 12-month warranty.

SPECIFICATIONS:

Specifications Range
Model UT300S
Temperature Range -32°C~400°C
-25.6°F~752°F
Accuracy ±2°C or ±2%
Repeatability ±0.5°C or ±0.5%
Resolution 0.1°C/0.1°F
Distance to Spot Size 12:01
Response Time 500ms
Emissivity 0.10~1.00 Adjustable
Laser Type Class 2
Laser Power <1mW
Laser Wavelength 630nm ~670nm
Spectral Response 8μm~14μm
Features
°C/°F Selection
Laser switch
Display Hold (s) 8 seconds
Data Hold
Auto Power Off
Low Battery Indication
MAX Mode
MIN Mode
High Alarm
Low Alarm
LCD Backlight
General Characteristics
Power 9V Battery (6F22)
LCD Size 22mm X 22mm
Product Color Red and grey
Product Net Weight 185g
Product Size 153mm X 108mm X40mm
Standard Accessories Battery
Standard Individual Packing Blister, English Manual

Documents

UT300S Non-Contact Infrared Thermometer English Manual
