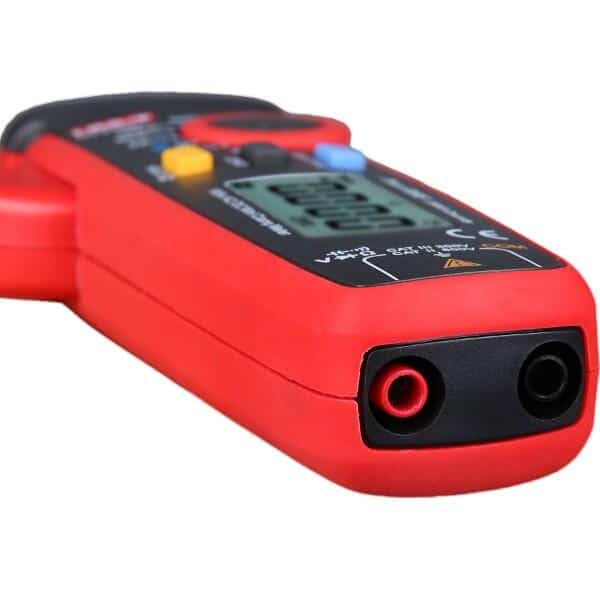

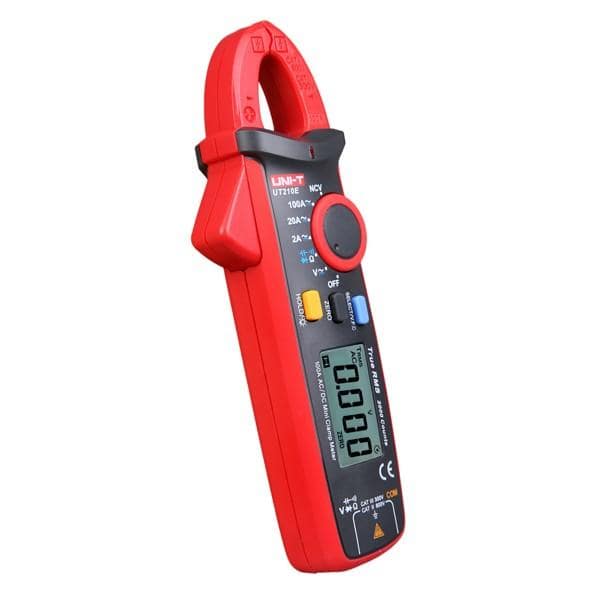

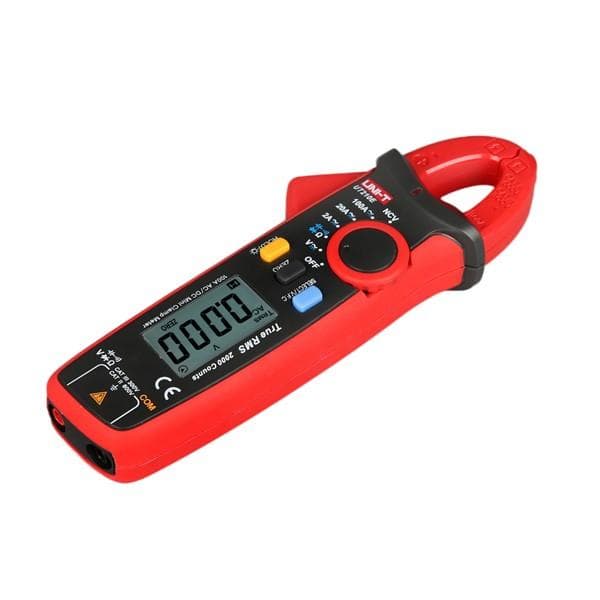

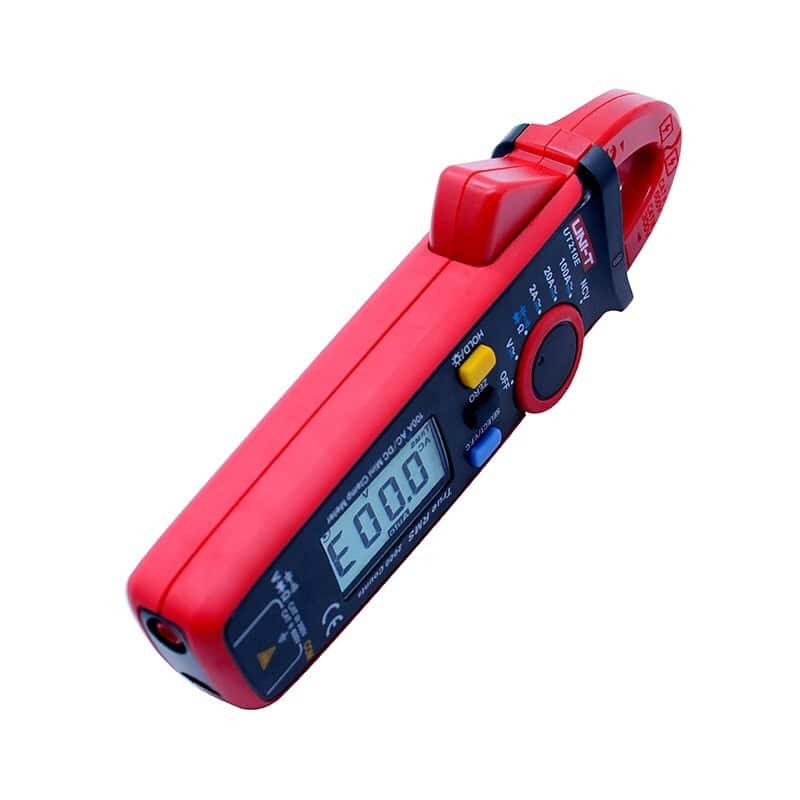

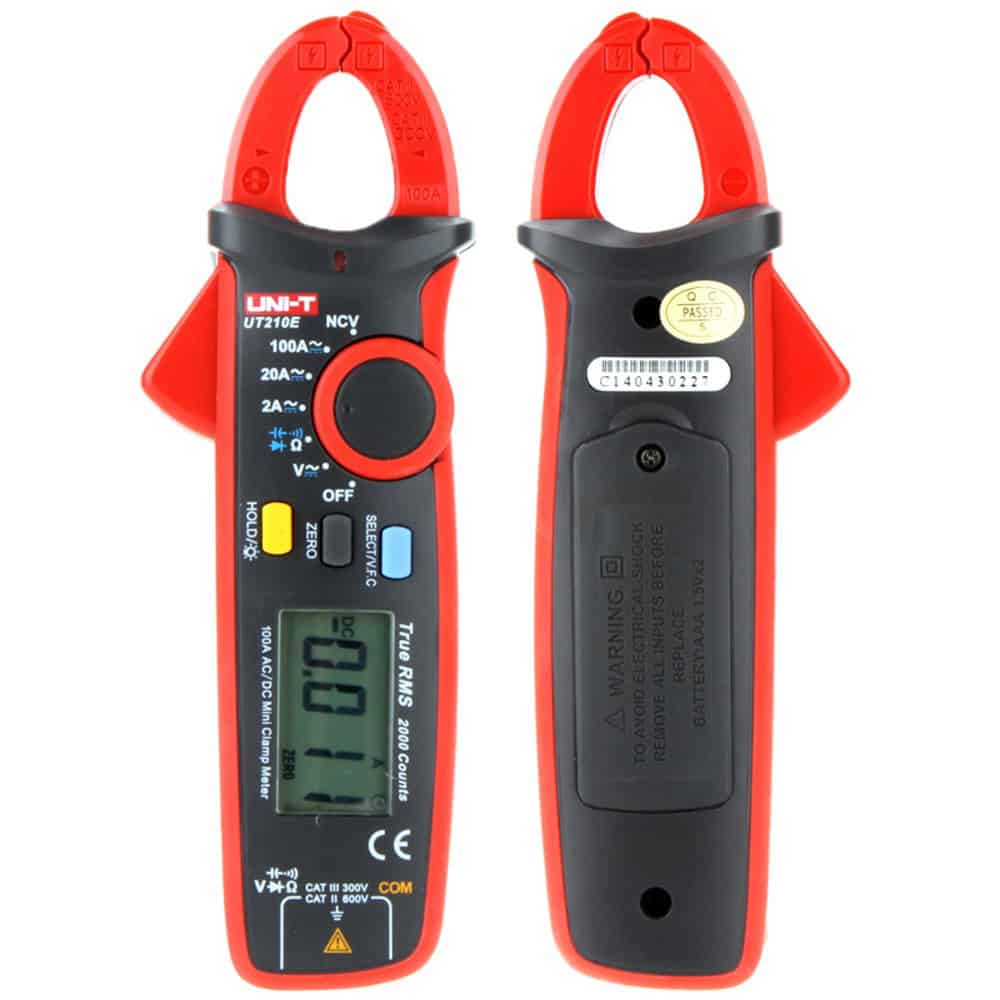

Uni-T UT210D Mini 100A True RMS Digital Clamp Meter

SKU: UT210D
Where To BuyRequest A Quote

Mini 100A True RMS Digital Clamp Meter with Auto Range.

SKU: UT210D Categories: ,

Description

UNI T UT210D TRUE RMS Digital Clamp Meter AC DC Multimeter Auto range Current Clamp Pincers Voltmeter Ammeter Ohmmeter VFC NCV

The Uni-Trend UT210D is an affordable function-packed mini clamp meter. Complete with a protective case, test probes and batteries, it is ready-to-go and can measure voltages and resistances/diodes by direct probing, as well as current up to 100A by clamp. It also includes a non-contact voltage detector.

UT210D mini clamp meters are designed to work well in limited space environments. These are essential tools for mechanical and electrical equipment maintenance, home appliance installation and electrician duties.

FEATURES:

  • CAT II 600V / CAT III 300V rating
  • Display Count 2000
  • Auto Range
  • Jaw Opening 17mm
  • TRMS
  • Diode Test
  • NCV
  • Data Hold
  • MAX/MIN mode
  • Zero mode
  • Display Backlight
  • Auto Power Off
  • Continuity Buzzer
  • Low Battery Indication
  • Input Protection.

INCLUDES:

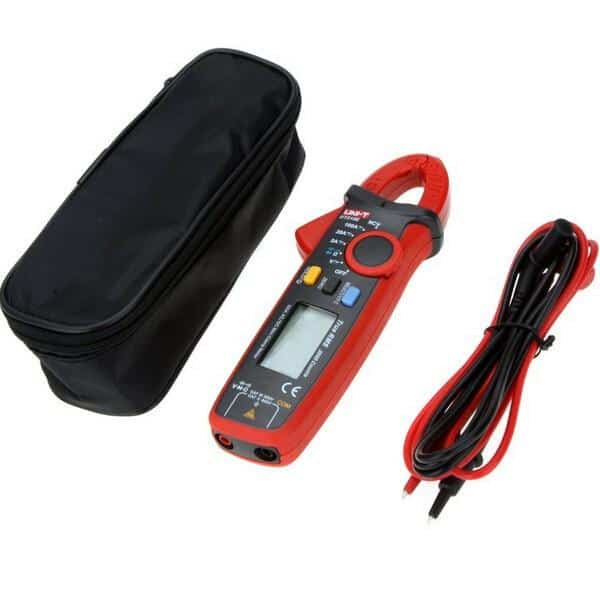

1 x UT210D, box, English manual, carrying bag, batteries, test leads, and 12-month warranty.

SPECIFICATIONS:

Specifications Range UT210A UT210D UT210E
AC current (A) 200A ±(2.5%+20) ±(2.5%+8)
100A ±(2.5%+5)
DC current (A) 200A ±(2%+3)
100A ±(2%+3)
AC voltage (V) 600V ±(1%+3) ±(1%+3)
DC voltage (V) 600V ±(0.7%+3) ±(0.7%+3)
Resistance (Ω) 20MΩ ±(1%+2) ±(1%+2)
Frequency (Hz) 60kHz ±(0.1%+4)
Capacitance (F) 20mF ±(4%+5) ±(4%+5)
Temperature -40~1000℃ ±(1%+3)
-40~1832℉ ±(1.5%+5)
Features
Display count 2000 2000 2000
Continuity buzzer
Auto range
Jaw opening 16mm 17mm 17mm
Diode test Around 3.0V
General Characteristics
Power AAA (R03) x 2
Display 39.3mm x 26.5mm
Product colour Red and grey
Product net weight UT210A: 150g (batteries included); UT210D/E: 170g
Product size UT210A: 158mm x 60mm x 33.5mm; UT210D/E: 175mm x 60mm x 33.5mm
Standard accessories Batteries, test leads (UT210D/UT210E), point contact temperature probe (/UT210D)
Standard individual packing Box, English manual, carrying bag (UT210D/UT210E)

Documents

UT210E Mini 100A True RMS Digital Clamp Meter English Manual

UT210E Mini 100A True RMS Digital Clamp Meter Flyer
