Description

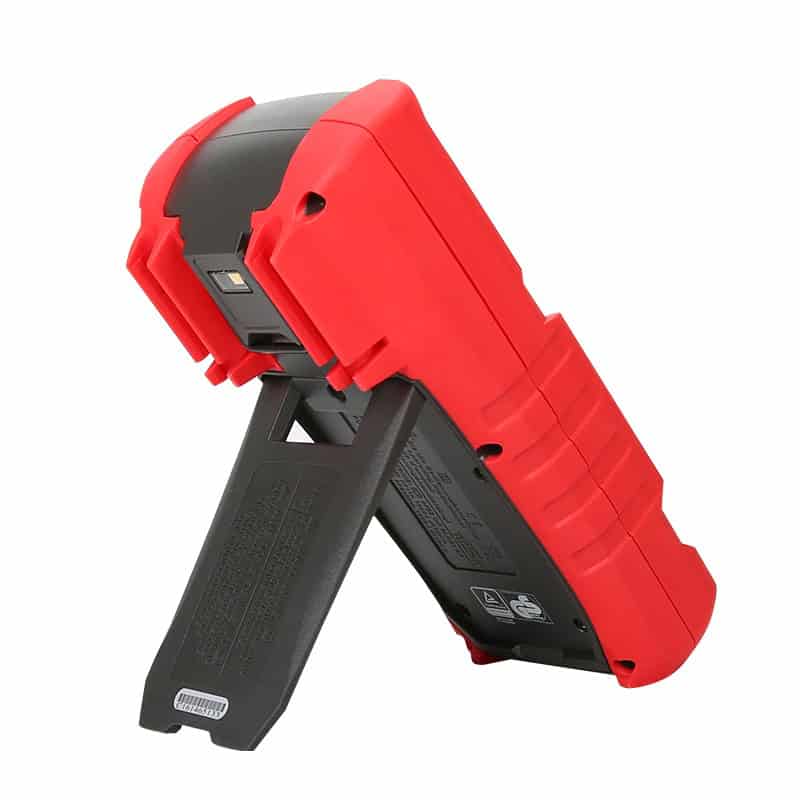

The UT195 is UNI-TRENDs series of handheld industrial digital multimeters with IP65 and 2-meter drop-proof. It can be used in mines, oilfields and other harsh environments.
Compared to traditional multimeters, the UT195M troubleshooting capability, resolution and precision are improved to find issues related to motor drive, factory equipment, maintenance, electrical distribution, and more. It is exquisitely designed and easy to operate.
FEATURES:
- CAT III 1000V / CAT IV 600V rating
- 6000 Display count
- LCD display interface
- Measurement sampling rate times/s 3
- True RMS
- AC voltage frequency response 45~1kHz
- AC current frequency response 45~1kHz
- 3-phase motor sequence test 600V
- Diode/Continuity test 3V
- Auto/Manual range
- Continuity buzzer
- Low battery indication
- Data hold
- Auto power off
- MAX/MIN
- Function selection
- Flashlight/Auto backlight.
INCLUDES:
1 x UT195M, box, English manual, test probes, battery, carrying bag, point contact temperature probe, and 12-Month warranty.
SPECIFICATIONS:
| Specifications | Range | UT195E | UT195M | UT195DS |
| DC voltage (V) | 1000V | ±(0.5%+3) | ±(0.5%+3) | ±(0.5%+3) |
| AC voltage (V) | 1000V | ±(1.0%+3) | ±(1.0%+3) | ±(1.0%+3) |
| AC+DC | 600V | ±(1.5%+4) | ||
| LoZ ACV | 600V | ±(2%+3) | ±(2%+3) | ±(2%+3) |
| DC current (A) | 20A | ±(0.8%+3) | ±(0.8%+3) | ±(0.8%+3) |
| AC current (A) | 20A | ±(1%+3) | ±(1%+3) | ±(1%+3) |
| Resistance (Ω) | 60MΩ | ±(0.8%+2) | ±(0.8%+2) | ±(0.8%+2) |
| Capacitance | 60mF | ±(3%+5) | ±(3%+5) | ±(3%+5) |
| Frequency | 60Hz~10MHz | ±(0.1%+4) | ||
| 60Hz~40MHz | ±(0.1%+4) | ±(0.1%+4) | ||
| Duty cycle | 0.1%~99.9% | ±(2%+5) | N/A | ±(2%+5) |
| Temperature (°C) | -40°C~1000°C | ±(1.5%+4) | ||
| Temperature (°F) | -40°F~1832°F | ±(2%+5) | ||
| Features | ||||
| Display count | 6000 | 6000 | 6000 | |
| Display interface (LCD) | Single | Single | Dual | |
| Measurement sampling rate | times/s | 3 | 3 | 5 |
| Analog bar sampling rate | times/s | 10 | 20 | |
| Analog bar | 31 sections | √ | √ | |
| True RMS | √ | √ | √ | |
| AC voltage frequency response | 45~400Hz | 45~1kHz | 45~5kHz | |
| AC current frequency response | 45~400Hz | 45~1kHz | 45~5kHz | |
| 3-phase motor sequence test | 600V | √ | √ | |
| Low pass filter | 1kHz 3dB attenuation | √ | ||
| Diode/Continuity test | 3.5V | 3V | 3V | |
| Peak hold | 250μs | √ | ||
| Auto/Manual range | √ | |||
| Continuity buzzer | √ | |||
| Low battery indication | √ | |||
| Data hold/Auto power off | √ | |||
| MAX/MIN | √ | |||
| Function selection | √ | |||
| Flashlight/Auto backlight | √ | |||
| General Characteristics | ||||
| Power | 9V battery | |||
| LCD size | 66mm x 51mm | |||
| Product colour | Red and grey | |||
| Product net weight | 437g | |||
| Product size | 195mm x 95 mm x 58mm | |||
| Standard accessories | Test probes, battery, carrying bag, point contact temperature probe (UT195M) | |||
| Standard individual packing | Box, English manual | |||
