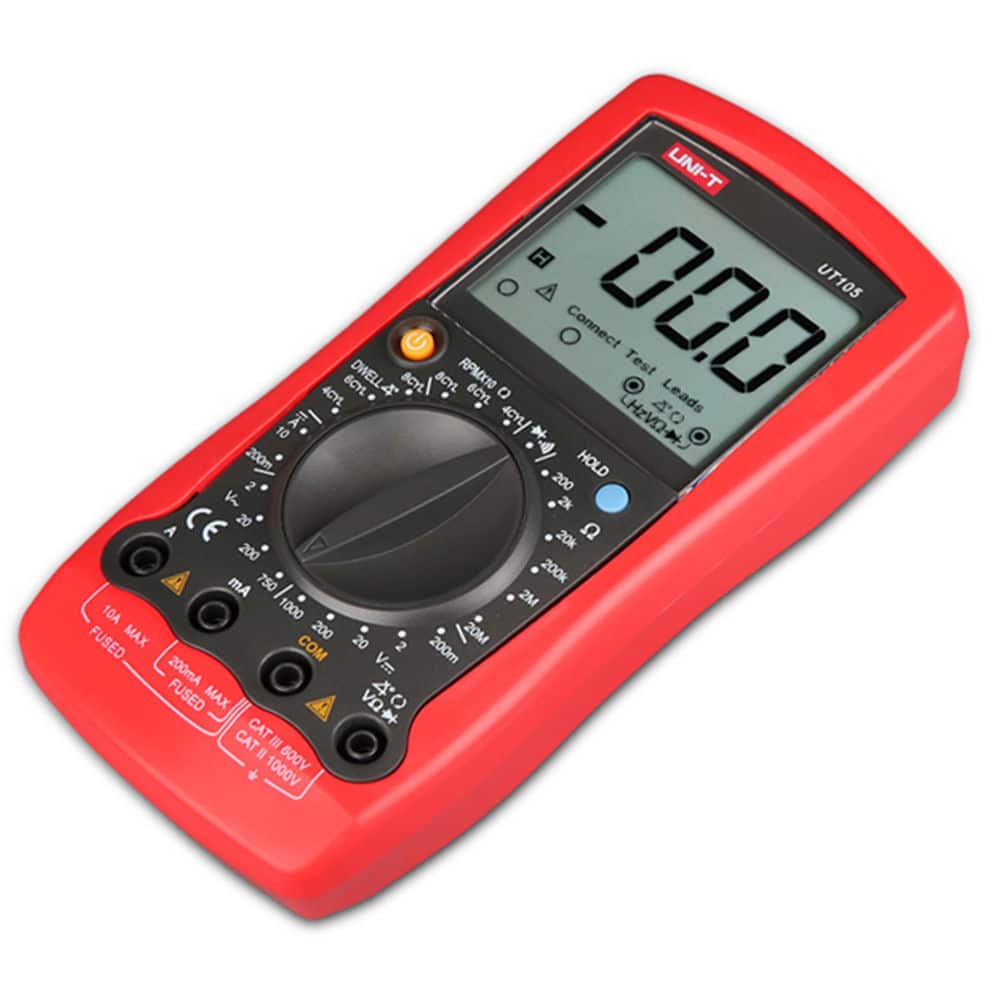

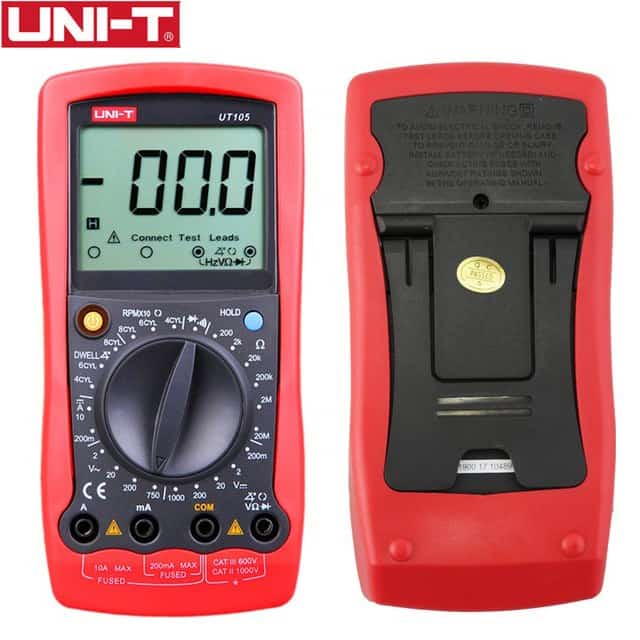

Uni-T UT105 Automotive Digital Multimeter

SKU: UT105
Where To BuyRequest A Quote

UNI-T UT105 is an automotive digital multimeter for DC current, AC/DC voltage, resistance, tach and dwell measurements, continuity check and diode test.


THE UT105 is specially designed for automotive diagnostic.

It combines RPM, DWELL, and other multimeter functions. The series is useful for automobile maintenance personnel to diagnose traditional vehicles and hybrid electric vehicles. Its applications include working on a fuse, switch, solenoid, relay, charging system, fuel system, engine sensing plus many more special functions.


  • CAT III 600V / CAT II 1000V rating
  • Fused 10A range
  • Diode
  • Continuity buzzer
  • Low battery display
  • Data Hold
  • Full icon display
  • Input Protection
  • 12 Month Warranty.

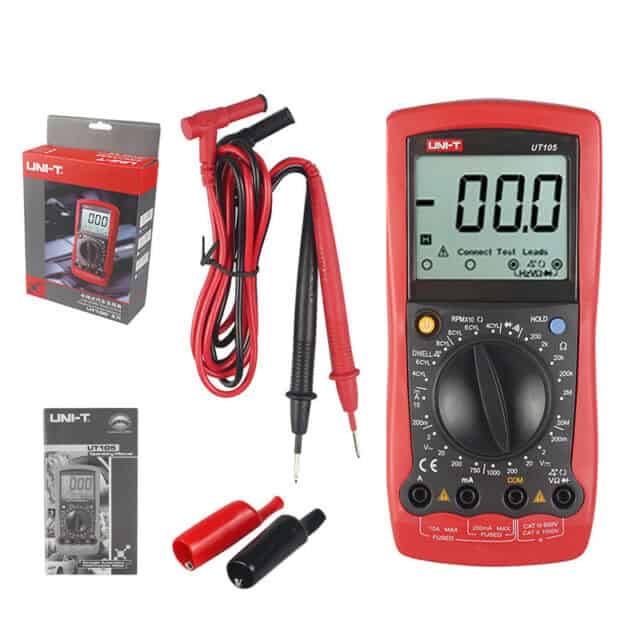

1 x UT105, box, English manual, battery, test leads, holster and 12-month warranty.


Specifications Range UT105
DC voltage (V) 200mV/2V/20V/200V/1000V ±(0.5%+5)
AC voltage (V) 2V/20V/200V/750V ±(0.8%+5)
DC current (A) 200mA/10A ±(0.8%+5)
Resistance (Ω) 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ ±(0.8%+5)
Display count 2000
Manual range
Input impedance for DCV Around 10MΩ

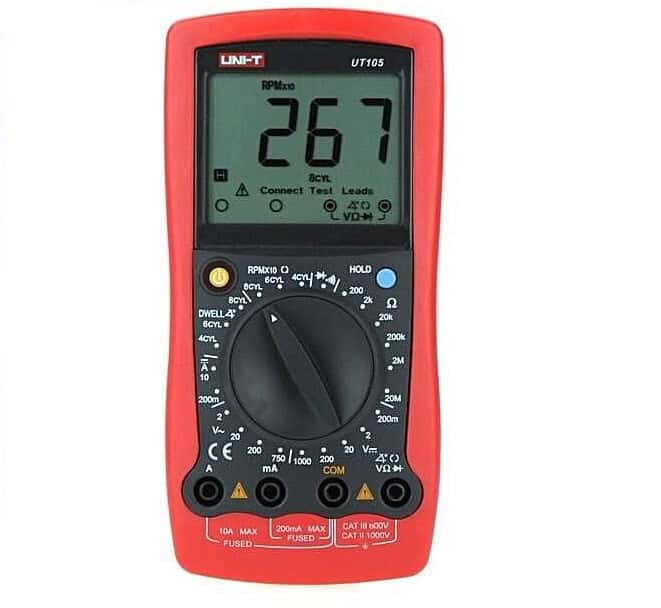

Dwell/Tach 4CYL/6CYL/8CYL ±(3%+5)
General Characteristics
Power 9V battery (6F22)
Display 60mm x 54mm
Product colour Red and grey
Product net weight 351g (including holster)
Product size 179mm x 88mm x 39mm
Standard accessories Battery, test leads, holster
Standard individual packing  Box, English manual


UT105 Automotive Digital Multimeter English Manual

UT105 Automotive Digital Multimeter Flyer
