Description

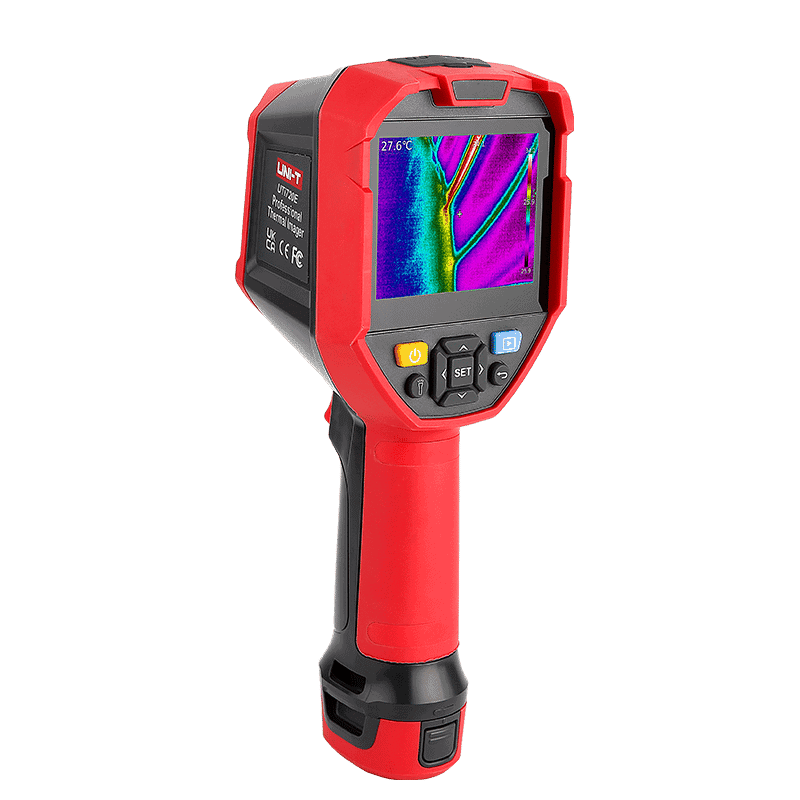

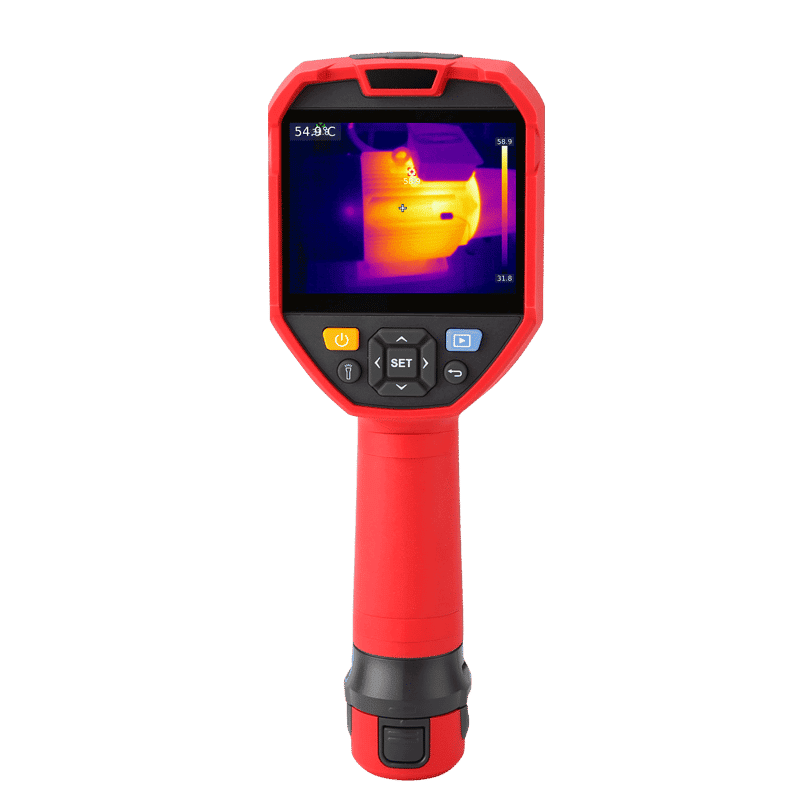

UTi720E is an advanced thermal camera with Wi-Fi capability. Its large 3.5” IPS display screen can clearly display 256×192 thermal resolution 2MP visual camera, or a blended image of both. It can measure temperature from -20℃ to 550℃. UTi720E’s 5200mAh detachable battery pack is convenient for easy and quick battery change, allowing continuously work for long periods of time.
FEATURES:
- 3.5” IPS display screen (640×480 Pixels)
- IR resolution: 256×192
- Temperature measurement range: -20℃ to 550℃ / -4℉ to 1022 ℉
- Auto alarm for high/low temperature
- Auto tracking for hot spot/cold spot
- On-screen analyzer : Point 5/Line 1/Rectangle 3/Circle 3
- Image capture
- Digital camera resolution: 2MP
- Digital zoom: 2x, 4x
- Image modes: Thermal, Visual image, Fusion,PIP
- Colour palettes: 7 (White hot, Black hot, Red hot, Ironbow, HC Rainbow, Rainbow, Lava)
- Isotherm (Auto/Ratio/Below/Above/Section/Manual)
- LED flashlight
- Wi-Fi connection through Mobile App
- QR Code – photo management
- PC software: analysis and real-time image projection

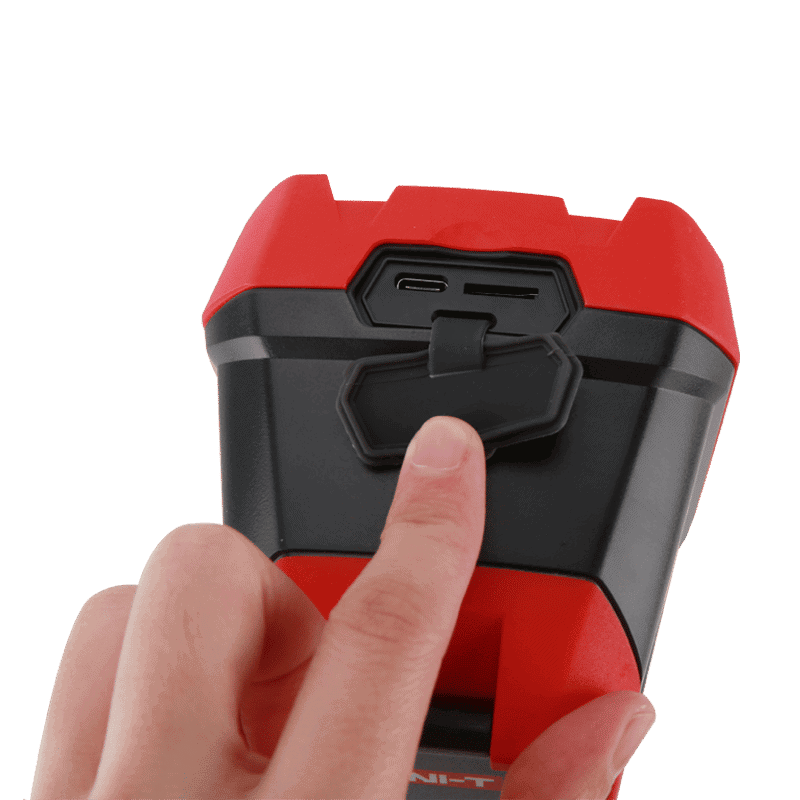

- 5200mAh replaceable battery pack (Type C rechargeable)

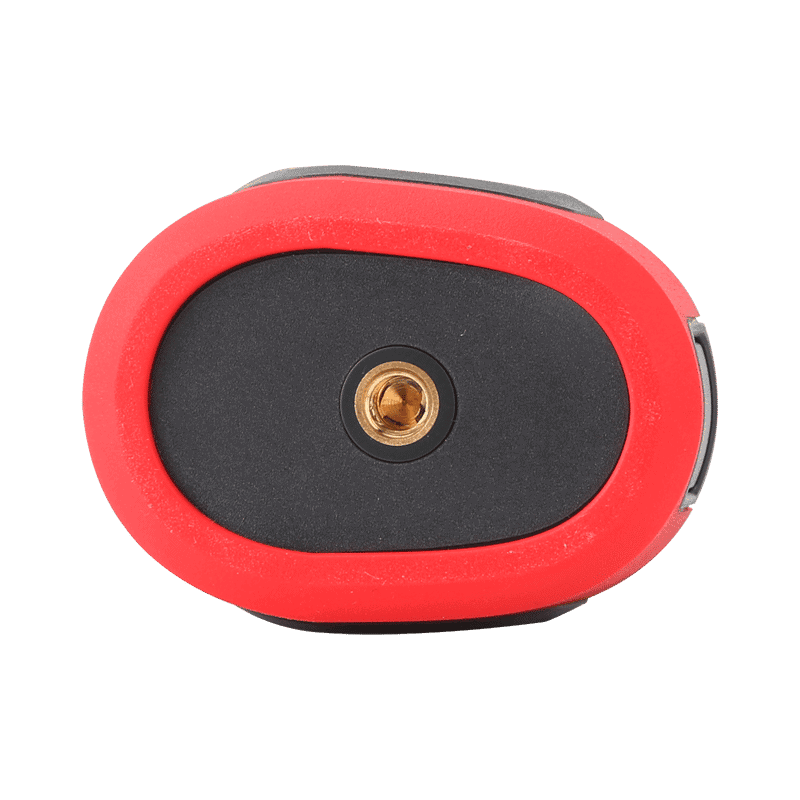

- 1/4” tripod mounting hole
- IP54
- 2m drop proof.
APPLICATIONS:
- PCBA inspection, motor inspection, automotive maintenance, solar panel inspection, power distribution cabinet inspection, electricity facilities inspection, mechanical equipment inspection, heating equipment inspection, building&HVAC inspection etc.
INCLUDES:
1 x UTi720E, Micro SD card, Type-C USB cable, English manual, Li-ion battery pack, 1 x English manual and 12-month warranty.
SPECIFICATIONS:
| Technical Data | |
| IR resolution (Pixels) | 256×192 |
| Display | 3.5‘’IPS (640*480) |
| Field of view(FOV) | 56°×42.2° |
| Thermal sensitivity(NETD) | ≤50mK @25℃ |
| Spatial resolution(IFOV) | 3.8mrad |
| Frame rate | ≤25Hz |
| Focus | Focus Free |
| Temperature measurement range | -20℃~550℃ |
| Accuracy | ±2℃ or ±2% whichever is greater |
| Emissivity | 0.01~1.00 adjustable (0.95 default) |
| Functions | |
| Color palettes | 7 (White hot, Black hot, Red hot, Ironbow, Rainbow HC, Rainbow, Lava) |
| Image modes | Thermal,Visual image,Fusion,PIP |
| On screen analyzer | Point 5/Line 1/Rectangle 3/Circle 3 |
| Digital camera resolution | 2MP |
| Digital zoom | 2x, 4x |
| Hi/Lo temperature alarm | Icon,LED flashlight |
| Isotherm | 6 (Auto/Ratio/Below/Above/Section/Manual) |
| PC software analysis | √ |
| Wi-Fi | √ |
| General Characteristics | |
| Battery | Detachable Li-ion battery pack(3.7V 5200mAh) |
| Battery operation time | ≥ 4 hours (without Wi-Fi) |
| USB | Type-C |
| IP rating | IP54 |
| Drop proof | 2m |
| Storage | 16GB Micro SD card |
| Image/Video storage format | JPEG |
| Certificates | CE,UKCA,FCC,RoHS |
| Product net weight | 630g |
| Product size | 260mm×97mm×99mm |
| Packing Details | |
| Standard accessories | Micro SD card, Type-C USB cable, English manual, Li-ion battery pack |

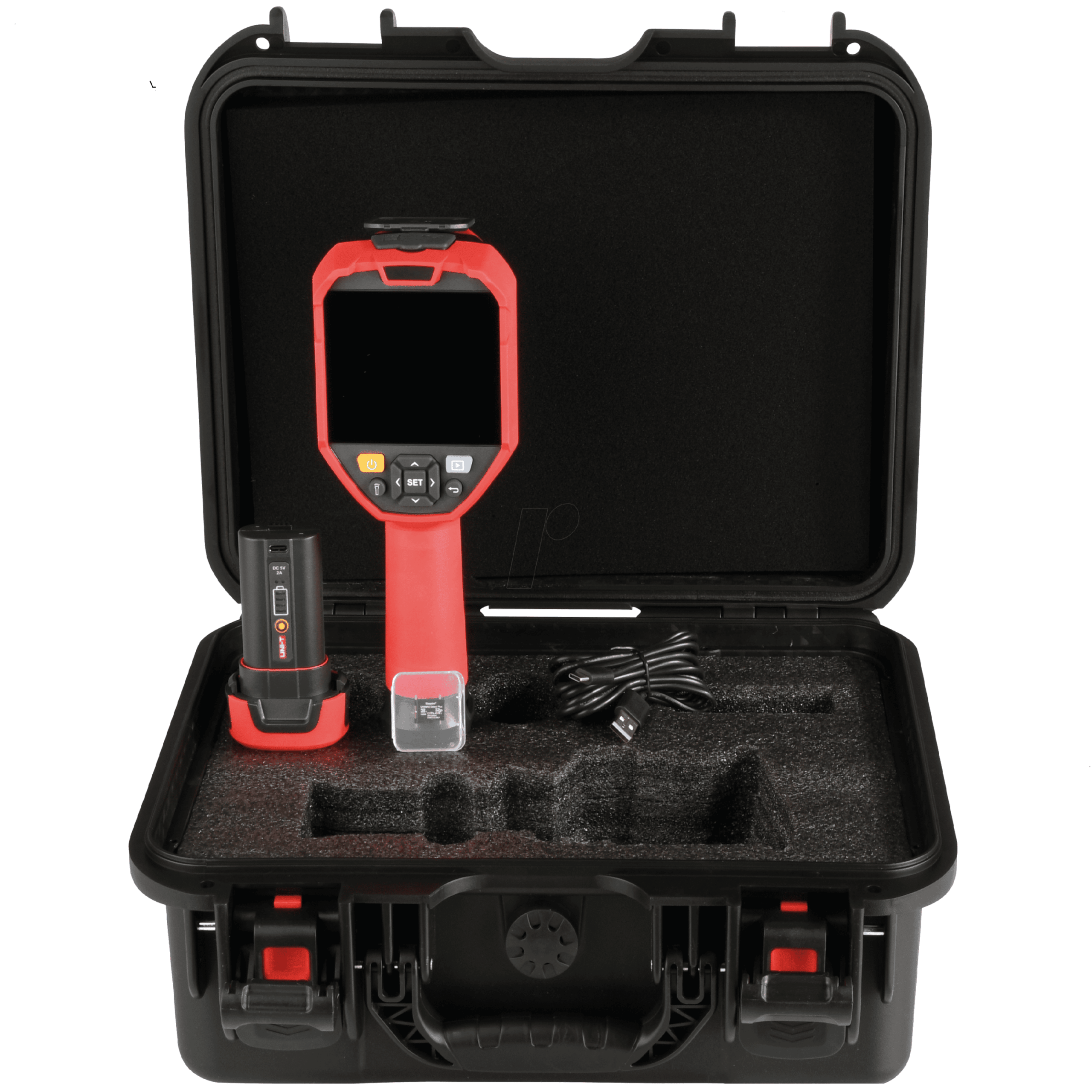

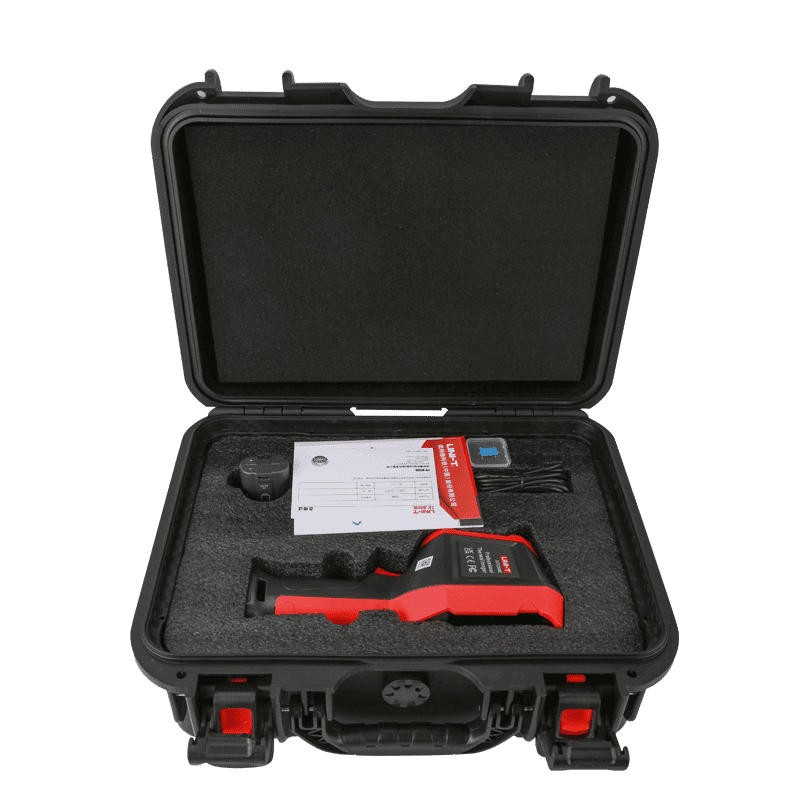

| Standard individual packing | Toolbox,box |
