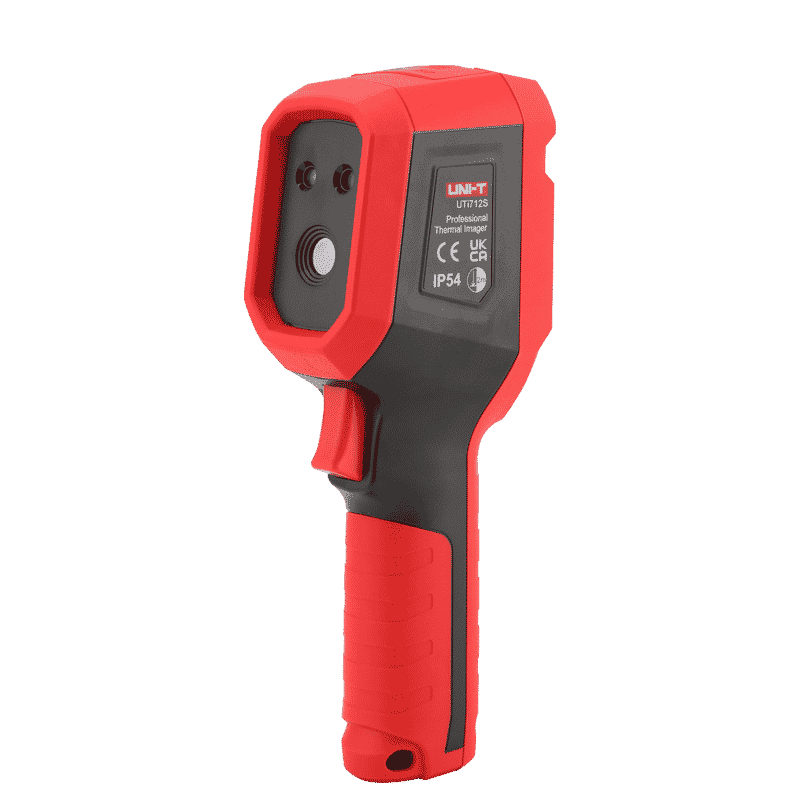

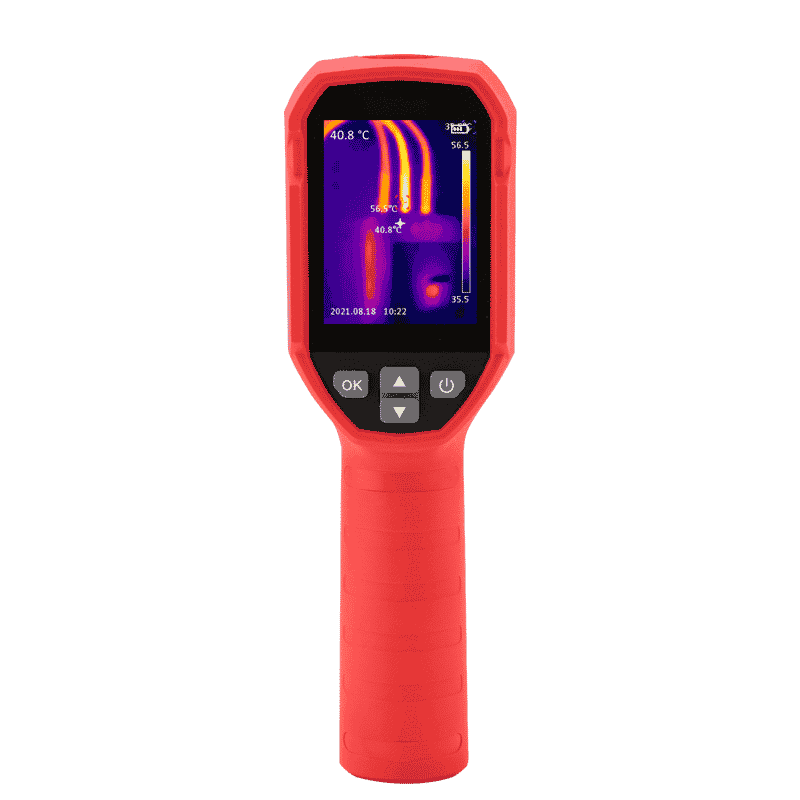

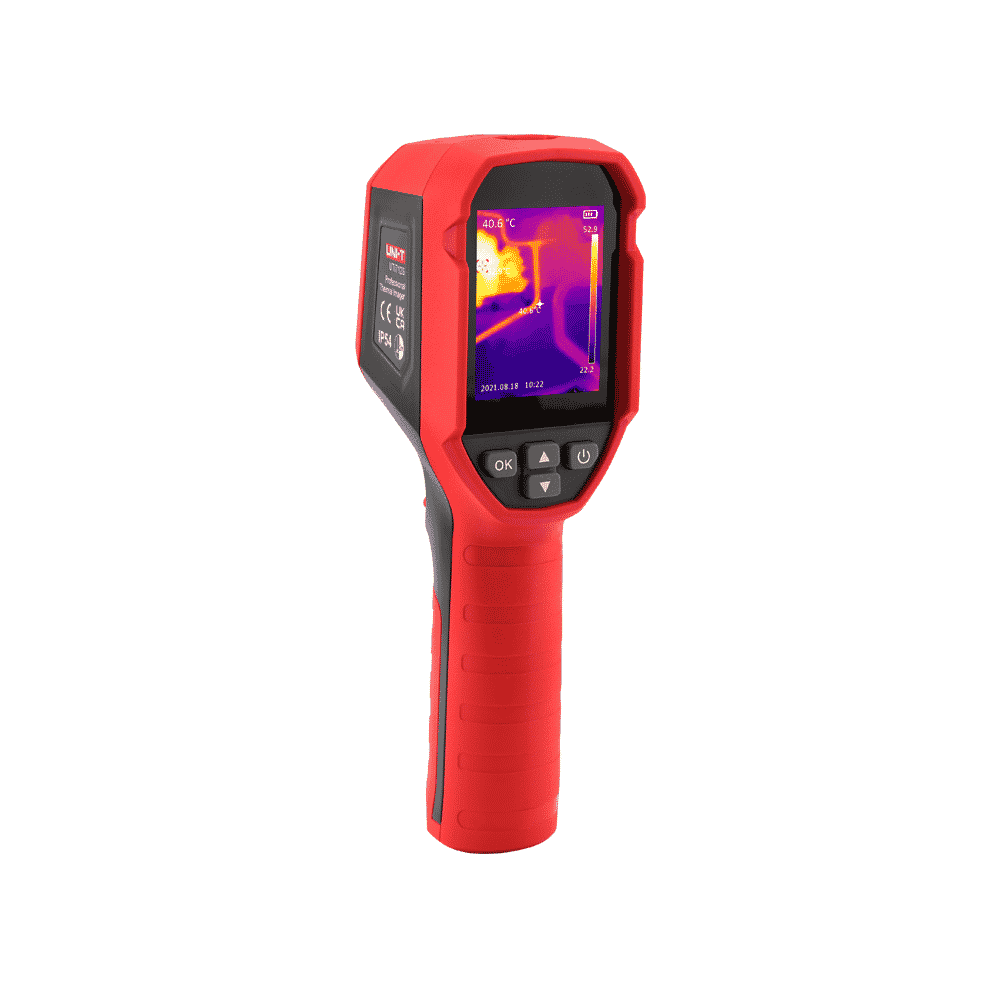

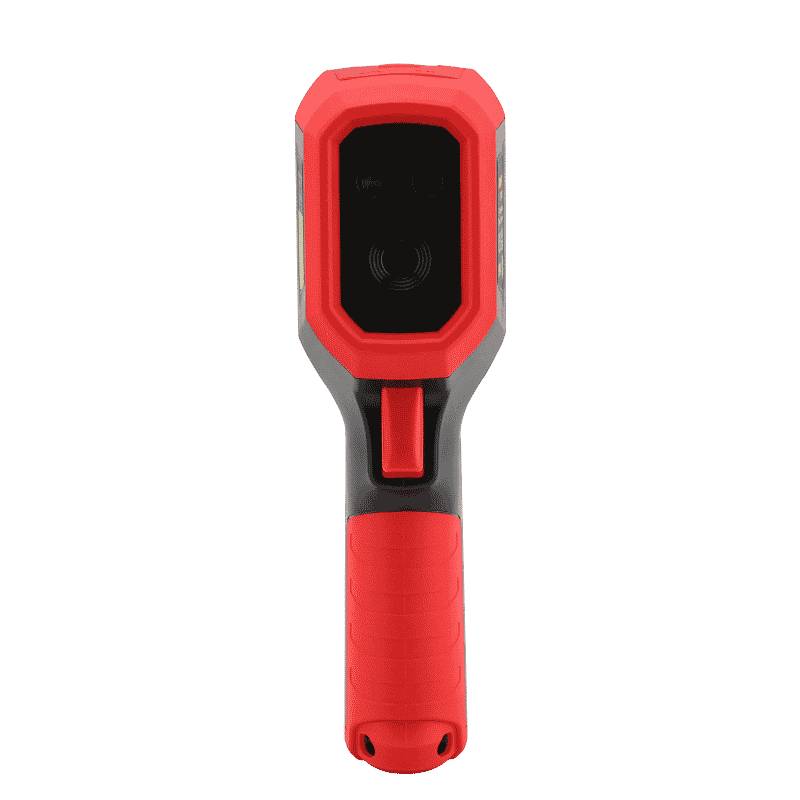

Uni-T UTi712S Value Thermal Camera 320×240 Pixels

Where To BuyRequest A Quote

Features include temperature compensation (which allows more accurate readings under different temperature environments).

SKU: UTI712S Categories: ,


UTi712S is a cost-effective and highly recommendable thermal camera with a quality build. Some special features include temperature compensation (allows more accurate readings under different temperature environments), laser pointer, and longer battery operation time (more than 9 hours). This rugged thermal camera has IP54 protection and can withstand 2 meters drop. UTi712S also supports 5 languages: English, German, French, Russian, and Spanish.


  • 4” TFT Screen (320×240 Pixels)
  • IR resolution: 120×90
  • Temperature measurement range: -20℃ to 400℃ / -4℉ to 752 ℉
  • Auto alarm for high/low temperature
  • Auto tracking for hot spot/cold spot
  • Image capture
  • Colour palettes: 6(White hot, Black hot, Ironbow, Rainbow HC, Rainbow, Lava)
  • Buzzer alarm
  • Laser pointer
  • LED flashlight
  • PC software analysis
  • Rechargeable Li-ion battery

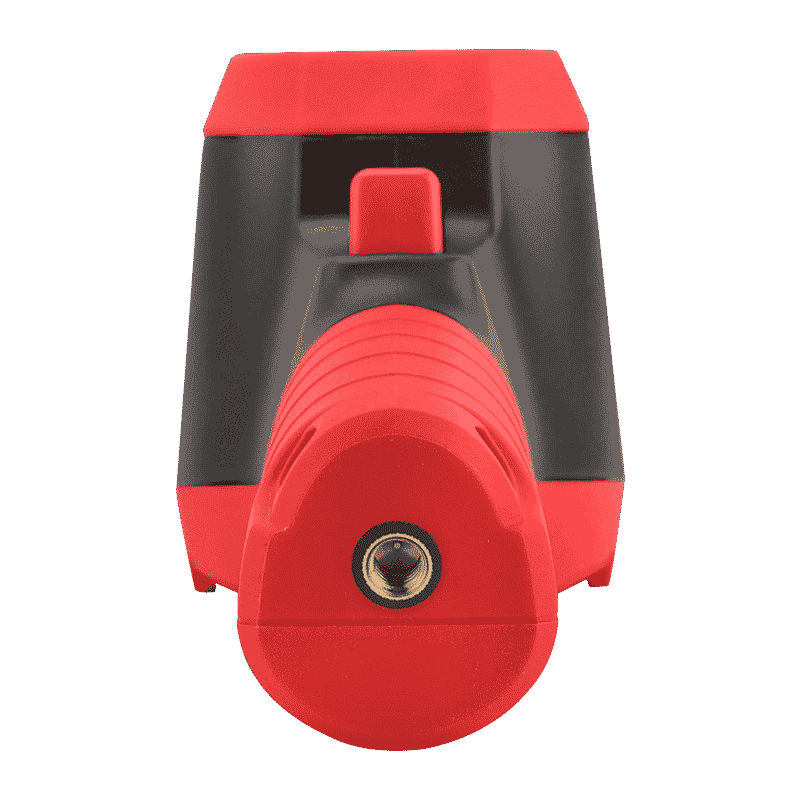

  • 1/4” tripod mounting hole
  • IP54
  • 2m drop proof


1 x Ui712S, hand strap, micro SD card, type-C USB cable, English manual and 12-month warranty.


Technical Data
IR resolution (Pixels) 120×90
Display 2.4” TFT LCD (320×240)
Field of view(FOV) 50°×38°
Thermal sensitivity(NETD) ≤60mK
Spatial resolution(IFOV) 7.3mrad
Frame rate ≤25Hz
Focus Focus Free
Temperature measurement range  -20℃~400℃
Accuracy ±2℃ or ±2%
whichever is greater
Emissivity 0.01~1.00 adjustable
(0.95 default)
Color palettes 6
(White hot, Black hot, Ironbow, Rainbow HC , Rainbow, Lava)
Image modes Thermal
Hi/Lo temperature alarm Icon,LED flashlight,Buzzer
PC software analysis
Laser pointer
General Characteristics
Battery Fixed Li-ion battery (3.7V 2600mAh)
Battery operation time  ≥8 hours
USB Type-C
IP rating IP54
Drop proof 2m
Storage 16GB Micro SD card
Image/Video storage format BMP
Certificates CE,UKCA,FCC,RoHS
Product net weight 310g
Product size 197mm×72mm×60mm
Packing Details
Standard accessories Hand strap, Micro SD card, Type-C USB cable, English manual
Standard individual packing Box



Uni-T i712S Value Thermal Camera English Manual
