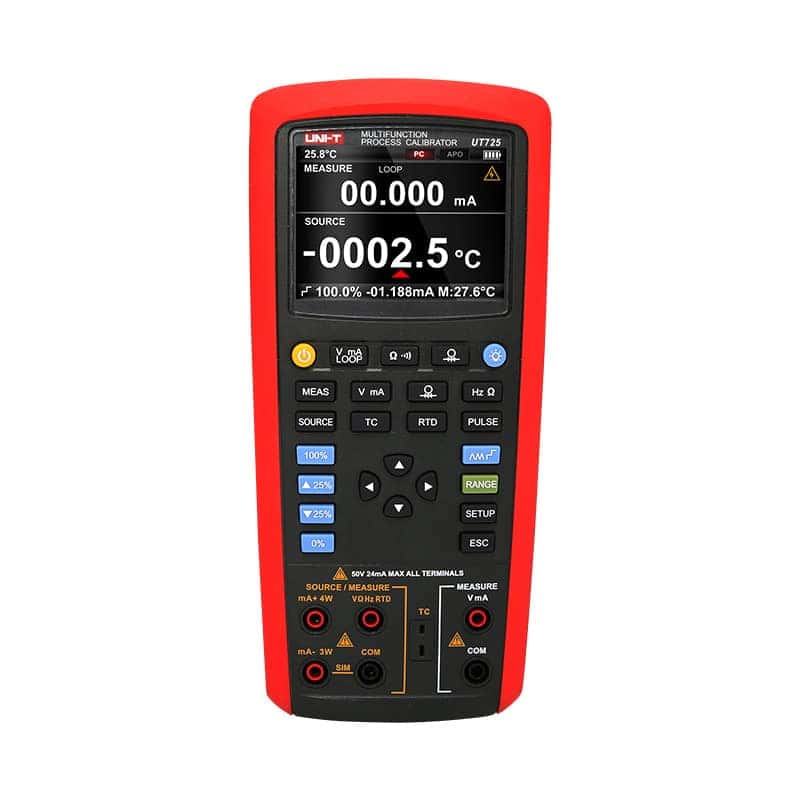

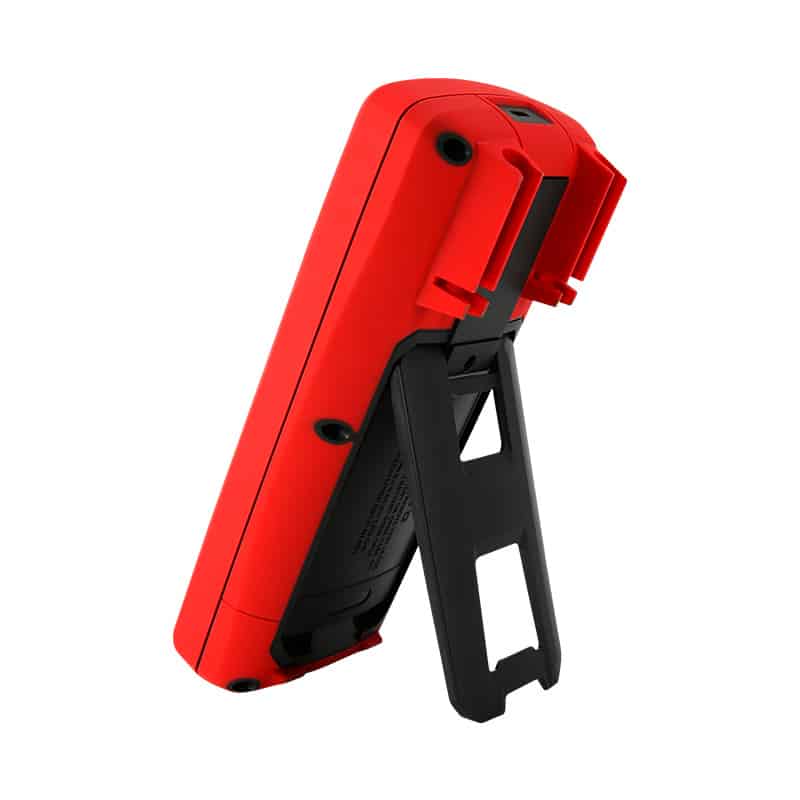

Uni-T UT725 Multifunction Process Calibrator

SKU: UT725
Where To BuyRequest A Quote

UT725 multifunction process calibrator combines with the temperature process calibrator and loop process calibrator function.

Description

The UT725 multifunction process calibrator combines with the temperature process calibrator and loop process calibrator function. You can easily measure and source most of the process parameters: mA, volts, temperature, frequency, ohms in one tool.

FEATURES:

  • Step/ramp functions
  • Source and measure accuracy up to 0.02%
  • Rechargeable battery
  • Contrast adjustment
  • Auto power off (Time adjustable)
  • Stores and recalls setups
  • USB communication
  • Simultaneously measure and output different process signal in real time
  • Pressure measure with specified pressure modules, and sourcing pressure
  • Provides 24V loop power to transmitter while conducting mA current measurement at the same time.

INCLUDES:
1 x  UT725, Test lead, USB cable, power adapter, temperature probe, 1 x English manual and 12-month warranty.

SPECIFICATIONS:

Specifications Range UT725
Measurement
DC voltage (V) 50mV/500mV/50V ±(0.02%+2)
DC current (mA) 20mA ±(0.02%+2)
Loop current (mA) 20mA ±(0.02%+2)
Resistance (Ω) 500Ω/5000Ω ±(0.05%+10)
Frequency (Hz) 100Hz/1kHz/10kHz/100kHz ±(0.01%+1)
Thermocouples R,S,K,E,J,T,N,B,L,U,XK,BP
RTDs Pt100/Pt200/Pt500/Pt1000/Cu10/Cu50/Cu100/Pt100-392/Pt100-JIS/Ni120
Continuity test
Pulses (Hz) 1~15kHz (1~100000 periods)
Source accuracy
DC voltage (V) 100mV/1000mV/10V ±(0.02%+10)
DC current (A) 20mA/20mA(SIM) ±(0.02%+2)
Resistance (Ω) 400Ω/4000Ω/40kΩ ±(0.05%+10)
Frequency (Hz) 200Hz/2000Hz/20kHz/100kHz ±(0.01%+1)
Pulses (Hz) 100Hz/1kHz/10kHz ±1
Thermocouples R,S,K,E,J,T,N,B,L,U,XK,BP
RTDs Pt100-385/Pt100-392/Pt100-JIS/Pt200-385/P500-385/Pt1000-385/Cu10/Cu50/Cu100/Ni120
Display count 20000
Operation temperature  -10°C~55°C
General Characteristics
Power 1.2V x 6 AA rechargeable battery
Product net weight 650g
Product size 195mm x 95mm x 58mm
Standard accessory Test lead, USB cable, power adapter, temperature probe, English manual
