Description

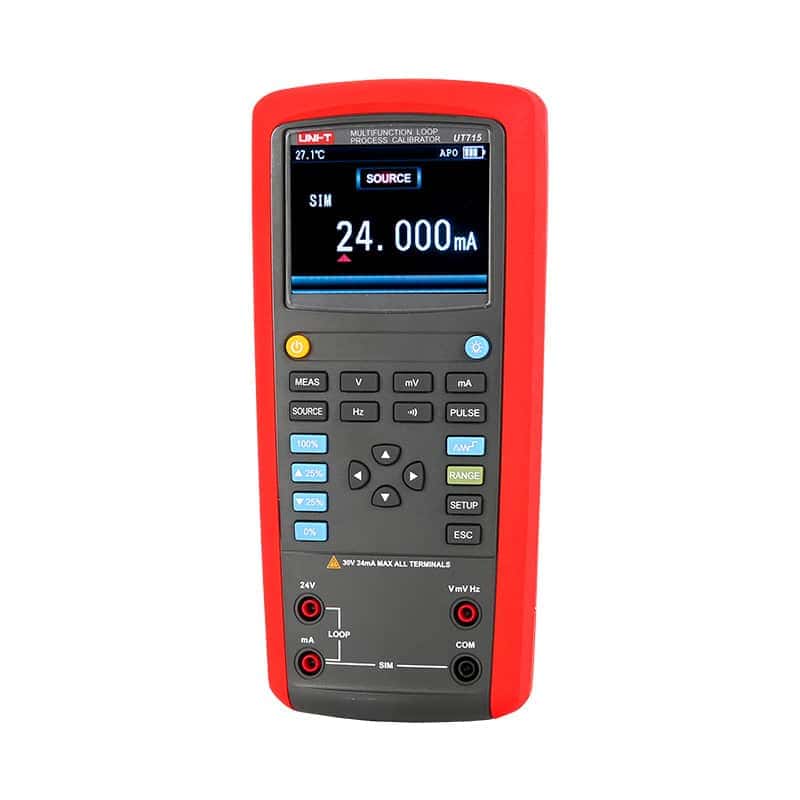

The UT715 multifunction loop process calibrator, measures and sources loop current and voltage. It is designed with 0.02% accuracy, adjustable backlight and auto power off. It is a powerful tool for the calibration, repair, and maintenance of mA loops.
FEATURES:
- Step/ramp functions
- Source and measure accuracy up to 0.02%
- Rechargeable battery
- Contrast adjustment
- Auto power off (Time adjustable)
- Stores and recalls setups
- USB communication
- Provides 24V loop power to the transmitter while conducting mA current measurement at the same time.
INCLUDES:
1 x UT715, Test lead, USB cable, power adapter, 1 x English manual and 12-month warranty.
SPECIFICATIONS:
| Specifications | Range | UT715 |
| Measurement | ||
| DC voltage (V) | 200mV/30V | ±(0.02%+2) |
| DC current (mA) | 20mA | ±(0.02%+2) |
| Loop current (mA) | 20mA | ±(0.02%+2) |
| Frequency (Hz) | 100Hz/1kHz/10kHz/100kHz | ±(0.01%+1) |
| Continuity test | √ | |
| Source | ||
| DC voltage (V) | 100mV/1000mV/10V | ±(0.02%+10) |
| DC current (mA) | 20mA/20mA (SIM) | ±(0.02%+2) |
| Frequency (Hz) | 200Hz/2000Hz/20kHz | ±(0.01%+1) |
| Pulses (Hz) | 100Hz/1kHz/10kHz | ±1 |
| Loop power output | 24V | ±10% |
| Display count | 20000 | |
| Operation temperature | -10°C~55°C | |
| General Characteristics | ||
| Power | 1.2V x 6 AA rechargeable battery | |
| Product net weight | 650g | |
| Product size | 195mm x 95mm x 58mm | |
| Standard accessory | Test lead, USB cable, power adapter, English manual | |
