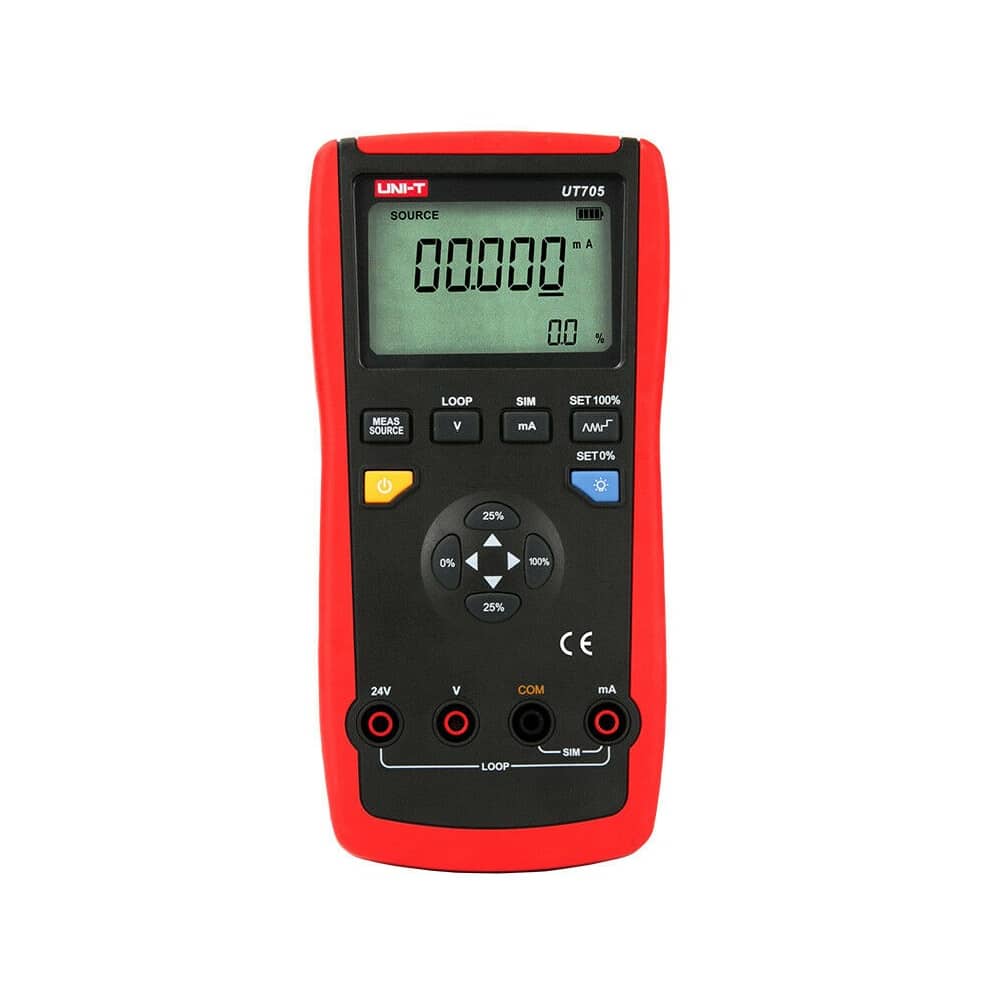

Uni-T UT705 Current Loop Calibrator

SKU: UT705
Where To BuyRequest A Quote

The UT705 is a high-performance device for process loop calibration and maintenance.

Description

The UT705 is a high-performance device for process loop calibration and maintenance.

Designed with high-accuracy DC current and transmitter analogue current outputs, UT705 has DC voltage/current and loop current measurement functions with button settings, selectable steps and ramp outputs to help users work more efficiently and accurately.

It features an LCD backlight display, auto power-off and is 1-metre drop-proof.

FEATURES:

  • Measures: DC voltage, DC current, 4-20mA loop current
  • Output functions: DC current, analogue transmitter, 24V loop
  • Up to 0.02% output and measurement accuracy
  • Compact and ergonomic design, easy to carry
  • Solid and reliable, suitable for on-site use
  • Auto stepping and ramping output for fast linearity detection
  • Conduct mA measurement while providing loop power to the transmitter
  • Save frequently-used settings for future use
  • Adjustable backlight display brightness
  • Convenient battery replacement.

INCLUDES:

1 x UT705, Test leads, battery and 12- Month warranty.

SPECIFICATIONS:

Specifications Range Accuracy
Measure accuracy
DC voltage (V) 30.000V ±(0.02+2)
DC current (A) 24.000mA ±(0.02+2)
Loop current 24.000mA ±(0.02+2)
Source accuracy
DC current (source) 24.000mA ±(0.02+2)
DC current (simulate) 24.000mA ±(0.02+2)
Features
Loop power function Voltage: 24V
Accuracy: 10%
Ramp functions Source functions: Voltage, resistance, temperature
Ramps: Slow ramp, fast ramp, 25% step-ramp
Step functions Source functions: Voltage, resistance, temperature
Steps: 25% of range, 100% of range
General Characteristics
Power 9V battery (6F22)
Display 63mm x 40mm
Product colour Red and grey
Product net weight 410g
Product size 96mm x 193mm x 47mm
Standard accessories Test leads, battery

Documents

Uni-T UT705 Current Loop Calibrator NZ English Manual
