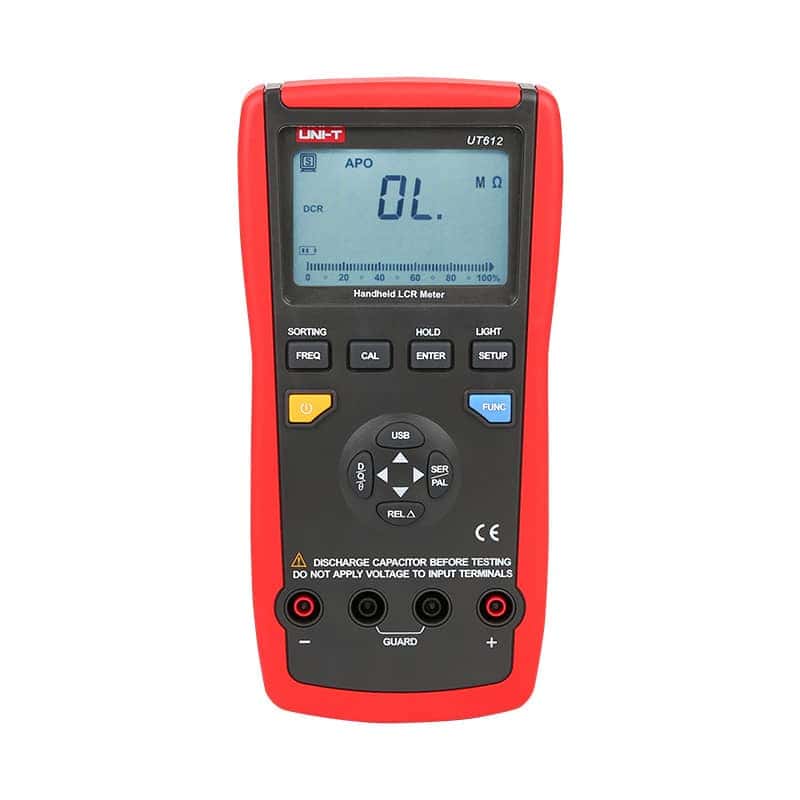

Uni-T UT612 LCR Meter

SKU: UT612
Where To BuyRequest A Quote

UT612 can be used in production lines, component inspection and electronic maintenance.

SKU: UT612 Categories: ,

Description

UT612 LCR meter is used to measure inductance, capacitance and resistance. Advanced features include series/parallel measurement modes, quality factor/loss/phase angle measurements, equivalent/DC resistance measurements and 5 selectable frequencies in AC mode. UT612 can be used in production lines, component inspection and electronic maintenance.

FEATURES:

  • Auto power off
  • Data hold
  • Relative mode
  • USB interface
  • LCD backlight
  • Deviation ratio measurement
  • Comparison function
  • Calibration funtion
  • Output impedance: 120Ω
  • Auto LCR check and measurement
  • Low battery indication: ≤6.8V.

INCLUDES:
1 x  UT612, Battery, SMD test clamp, USB interface cable, multi-purpose socket, PC software CD, 1 x English manual and 12-month warranty.

SPECIFICATIONS:

Specifications Range UT612
Inductance (H) 20uH~2000H ±(0.5%+5)
Capacitance (F) 200pF~20mF ±(0.5%+5)
Resistance (Ω) 20Ω~200MΩ ±(0.3%+5)
Test frequency (Hz) 100Hz/120Hz/1kHz/10kHz/100kHz
Operating voltage 0.6Vrms
Test parameters L/C/R/DCR/Q/D/θ/ESR
Features
Display count 20000
D/Q display count 2000
D/Q resolution 0.001
Auto range
Test frequency real-time display
Measurement mode Series/Parallel
Auto power off
Low battery indication ≤6.8V
Data hold
Relative mode
USB interface
USB interface/PC data records 60000
LCD backlight
Analog bar graph 26
Deviation ratio measurement
Comparison function
Calibration function
Output impedance 120Ω
Auto LCR check and measurement
General Characteristics
Power 9V battery (6F22) or USB
Display 40mm x 63mm
Product colour Red and grey
Product net weight 374g
Product size 96mm x 193mm x 47mm
Standard accessories Battery, SMD test clamp, USB interface cable, multi-purpose socket, PC software CD
Standard individual packing Box, English manual

Documents

Uni-T UT612 LCR Meter English Manual

Uni-T UT612 LCR Meter Software Instruction

Uni-T UT612 LCR Meter Product Flyer
