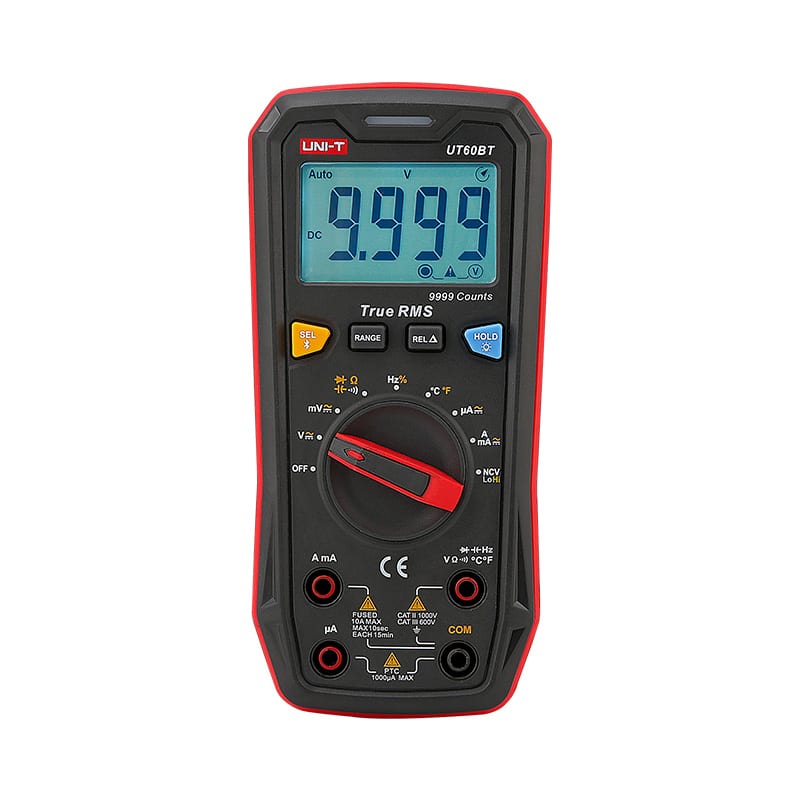

Uni-T UT60BT BlueTooth True RMS Digital Multimeter

SKU: UT60BT
Where To BuyRequest A Quote

UT60BT digital multimeters provide True-RMS measurement, 9999-count resolution, and non-contact voltage detection.

Description

UT60BT digital multimeters provide True-RMS measurement, 9999-count resolution, non-contact voltage detection and many convenient features for users’ testing needs. These auto-ranged meters can measure up to 1000V AC/DC voltage, 10A AC/DC current and 100MΩ resistance. The easy-to-use interface with a backlight enables you to detect equipment quickly even in dark places. This CE-certified meter meets CAT II 1000V/CAT III 600V safety rating with rugged double-injection housing.

FEATURES:

  • 9999 counts
  • True RMS
  • Bluetooth
  • Duty cycle
  • Diode/Continuity test
  • Temperature
  • Non-contact voltage
  • Analog bar/Data hold
  • Backlight/Relative mode
  • Auto/Manual range
  • Low battery indication
  • Three-color LED light indicator.

INCLUDES:

1 x UT60BT, Thermocouple and 12-month warranty.

SPECIFICATIONS:

Specification Range UT60EU UT60BT UT60S
DC Voltage 9.999mV/99.99mV/999.9mV/
9.999V/99.99V/999.9V
±(0.5%+3) ±(0.5%+3) ±(0.5%+3)
AC Voltage 9.999mV/99.99mV/999.9mV/
9.999V/99.99V/999.9V
±(0.8%+3) ±(0.8%+3) ±(0.8%+3)
DC Current 999.9uA/999.9mA/9.999A/10A ±(0.8%+3) ±(0.8%+3) ±(0.8%+3)
AC Current 999.9uA/999.9mA/9.999A/10A ±(1.0%+3) ±(1.0%+3) ±(1.0%+3)
Resistance 999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ/9.999MΩ/99.99MΩ ±(0.8%+2) ±(0.8%+2) ±(0.8%+2)
Capacitor 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF ±(4.0%+5) ±(4.0%+5) ±(4.0%+5)
Frequency 99.99Hz~9.999MHz ±(0.1%+5) ±(0.1%+5) ±(0.1%+5)
Duty Cycle 0.1~99.9% ±(3%+5) ±(3%+5) ±(3%+5)
Temperature –40℃~1000℃/–40°F~1832°F ±4℃/±5℉ ±4℃/±5℉ ±4℃/±5℉
Features
Bluetooth
Display Count 9999 9999 9999
Auto Range
REL
NCV
Diode
Continuity Test
Acousto-optic Indication (NCV/continuity/battery power)
Low Battery Indication ≤3.6V
Data Hold
Auto Power Off 15Min
Operation Temperature 0℃~40℃
Safety CAT II 1000V/CAT III 600V
General Characteristics
Battery 1.5V AAA x 3
Product Color Red and Gray
Product Net Weight 290g
Product Size 169mm x 81mm x 46mm
Standard Individual Packing Box, Manual, Thermocouple

Documents

Uni-T 60BT BlueTooth True RMS Digital Multimeter English Manual

Uni-T 60BT BlueTooth True RMS Digital Multimeter Flyer
