Description

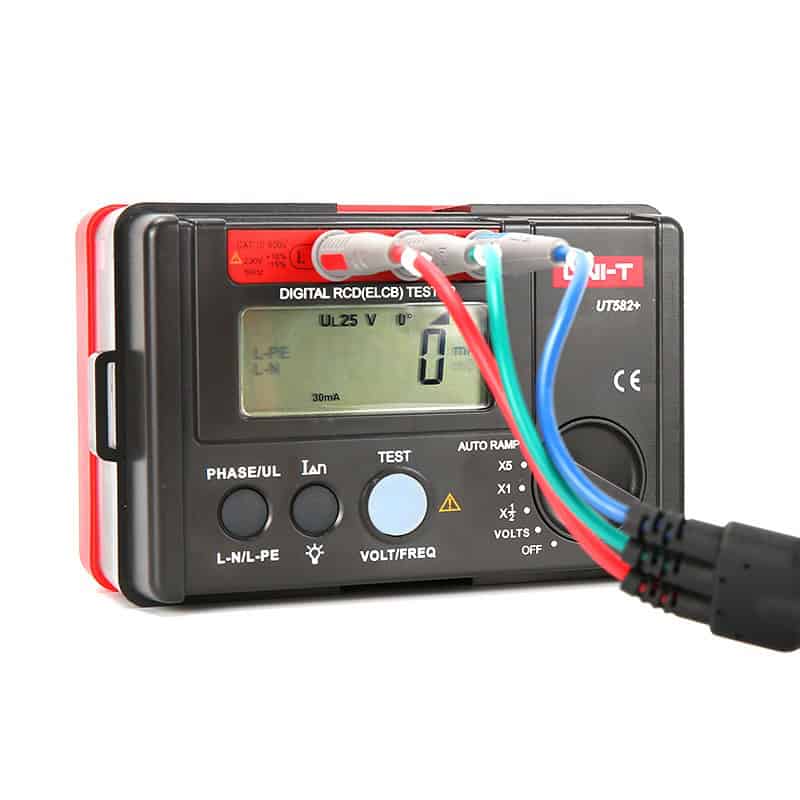

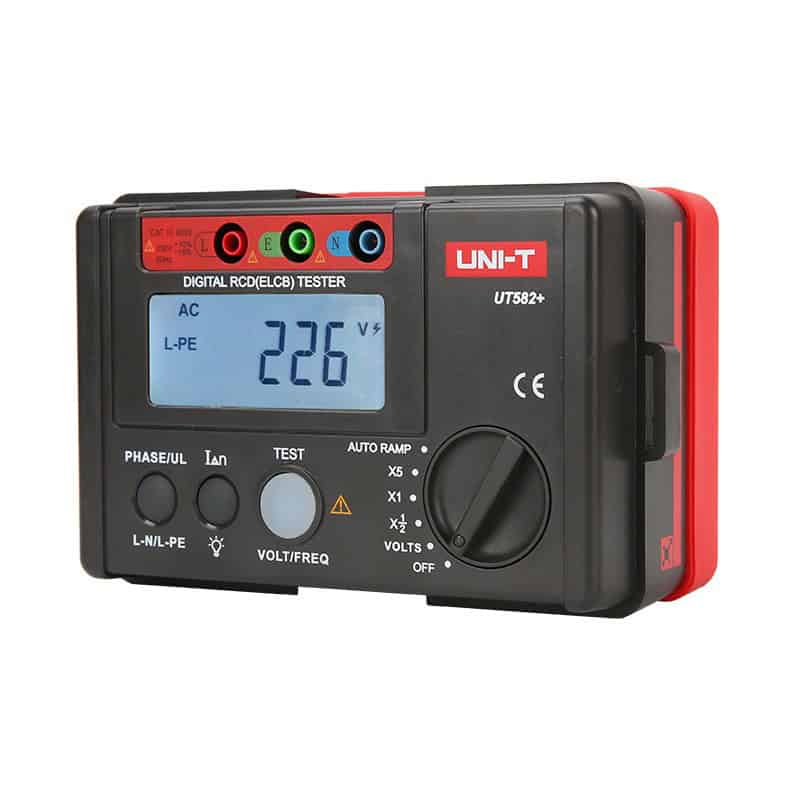

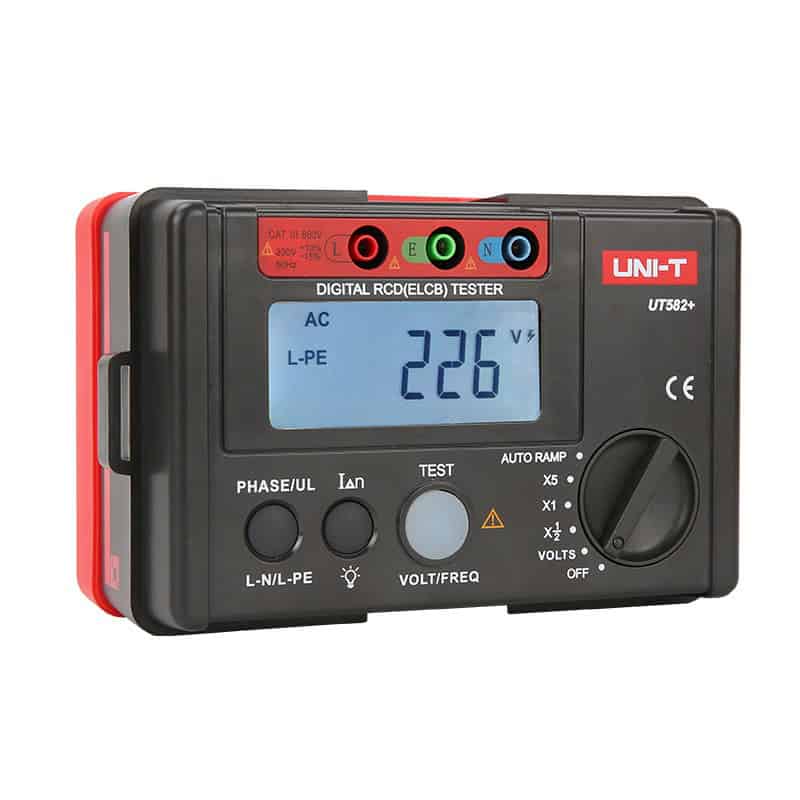

The UT582+ is mainly used to detect whether the RCD in the circuit can be triggered normally. It is only suitable for single-phase circuits with the supply voltage range of 195V~253V. Its voltage measurement range is 30V~600V, 45Hz ~65Hz.
FEATURES:
- CATIII 600V
- AUTO RAMP
- Large quality LCD display
- Simple robust design
- Over-load indicator
- Intelligent micro-processing controller to provide high-accuracy and reliability
- Insulation testing can be performed between 30~600V
- RCD testing at 10mA, 30mA, 100mA, 300mA and 500mA
- Continuity to 2000Ω
- Auto power off.
INCLUDES:
1 x UT582+, 1 x Test line, 1 x Carrying bag, 1 x Elastic strap, 1 x English user manual and 12-month warranty.
SPECIFICATIONS:
Specifications | Range | Accuracy | ||
RCD measurement | Range setting | Rated operating current | Trip time | |
X 1/2 | 10mA/20mA/30mA/100mA/300mA/500mA | 2000ms | -10%~0% | |
X 1 | 10mA/20mA/30mA/100mA/300mA | 1000ms | 0%~10% | |
500mA | 300ms | 0%~10% | ||
X 5 | 10mA/20mA/30mA | 40ms | 0%~10% | |
AUTO RAMP | 10mA/20mA/30mA/100mA/300mA/500mA | 300ms | -10%~10% | |
Trip time accuracy | ±(2%+2) | |||
Operating voltage (Freq.) | 195V~253V | |||
Voltage measurement | Voltage range | 30~600V | ||
Frequency | 45Hz~65Hz | |||
Resolution | 1V | |||
Accuracy | ±(3%+3) | |||
Features | ||||
Display count | 999 | |||
Power off gear | √ | |||
Low battery indication | <7.2V | |||
APO | Auto power off function | |||
LCD backlight | √ | |||
Data hold | √ | |||
Phase angle selection | 0° and 180° | |||
Connections check | Simultaneously test the trip time and trip current | |||
AUTO RAMP | √ | |||
Disconnect buzzer | √ | |||
Over-load indicator | OL | |||
Fused | √ | |||
Mis-operation buzzer | √ | |||
Power off buzzer | √ | |||
Full icon display | √ | |||
Compliance standard | IEC 61010-1, IEC 61010-2-030, IEC 61010-2-033, IEC 61557-1:2007;IEC 61557-6:2007, EN61326-1, EN61326-2-2 | |||
Lead sequence check | LCD | |||
General Characteristics | ||||
Power | 1.5V battery (LR6) x 6 | |||
Display | 71mm x 34mm | |||
Product colour | Red and grey | |||
Product net weight | 400g | |||
Product size | 160mm x 100mm x 71mm | |||
Standard accessories | Test line, carrying bag, elastic strap | |||
Standard individual packing | Box, English manual |
