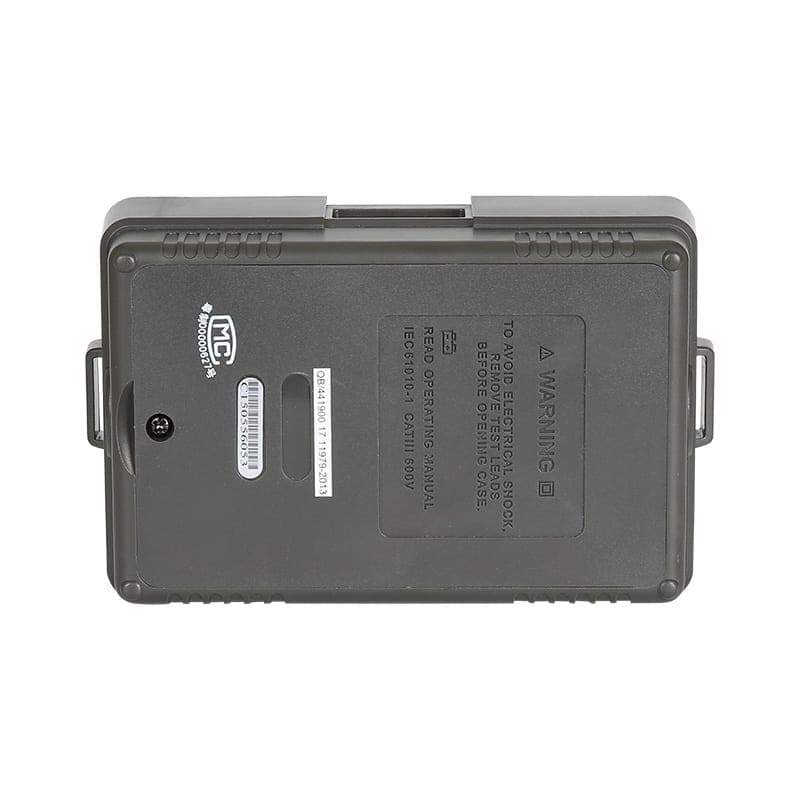

UNI-T UT522 Digital Earth Ground Resistance Tester

SKU: UT522
Where To BuyRequest A Quote

Can perform precise 3-wire and simple 2-wire earth resistance measurements for power and electrical systems, lightning protection equipment, and ground system of all electrical equipment.

Description

UT520 series can perform precise 3-wire and simple 2-wire earth resistance measurements for power and electrical systems, lightning protection equipment, and ground system of all electrical equipment. This series is UNI-T’s introductory earth resistance tester with high economic value. Its lightweight design is convenient for fieldwork.

FEATURES:

  • Manual range
  • Low battery indication
  • Data hold
  • LCD backlight/auto power off
  • Full icon display
  • Double insulation protection
  • Poor contact display: “…Ω”
  • Over-range display: Display “OL”
  • Simple 2-wire testing
  • Precise 3-wire testing.

INCLUDES:
1 x  UT522, Batteries, simple test leads with alligator clips, standard test leads with alligator clips, earth spike, gallus, 1 x English manual and 12-month warranty.

SPECIFICATIONS:

Specifications Range UT522
Earth resistance (Ω) 0~20Ω
0~200Ω
0~2000Ω
0~40Ω ±(2%+20)
0~400Ω ±(2%+3)
0~4000Ω ±(2%+3)
AC earth voltage (V) 0~200V
0~400V ±(1%+6)
Frequency: 50Hz/60Hz
Features
Display count 4000
Manual range
Auto power off Around 10 minutes
Low battery indication
Data hold
Data storage 20
LCD backlight
Full icon display
Double insulation protection
Poor contact display  “…Ω”
Over-range display Display “OL”
Simple 2-wire testing
Precise 3-wire testing
General Characteristics
Power 1.5V battery (LR6) x 6
Display 70.6mm x 34mm
Product Colour Red and grey
Product net weight 560g
Product size 160mm x 100mm x 70.5mm
Standard accessories Batteries, simple test leads with alligator clips, standard test leads with alligator clips,
earth spike, gallus
Standard individual packing Box, carrying bag, English manual
