Description

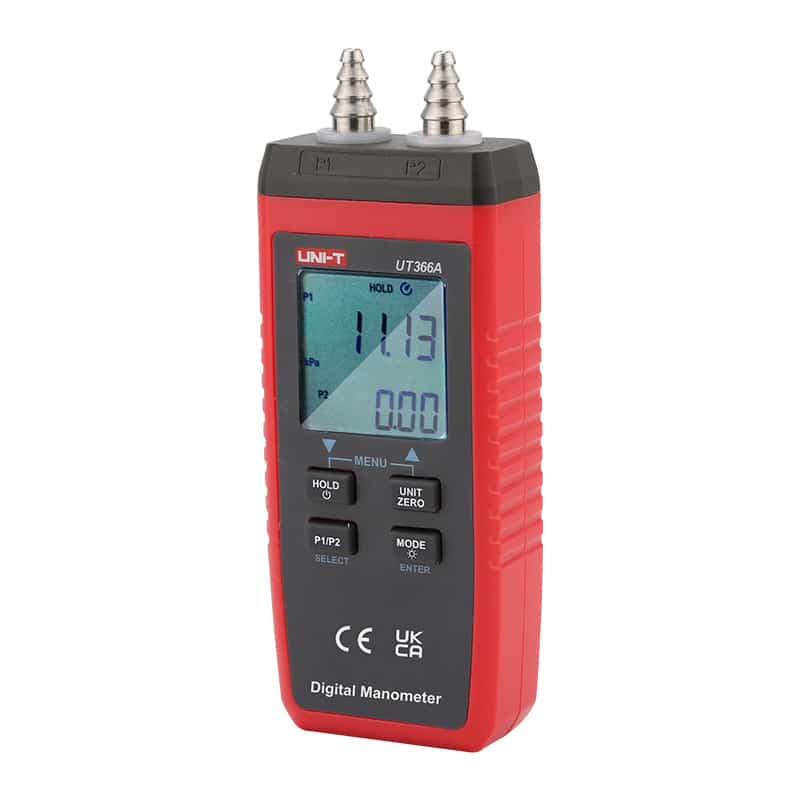

UT366A is a device designed for assessing gauge pressure and differential pressure. With LED indicators, it allows independent measurement of P1/P2 pressure. Its applications span across various industries such as industrial manufacturing, HVAC, and plumbing. Additionally, when paired with an optional pitot tube, UT366A is capable of wind speed measurement.
Features
● Certificates: CE, UKCA
● Low battery indication
● Unit memory
● Auto power off
● LCD backlight
● LED Indicator Lights
● MAX/MIN/AVG/HOLD

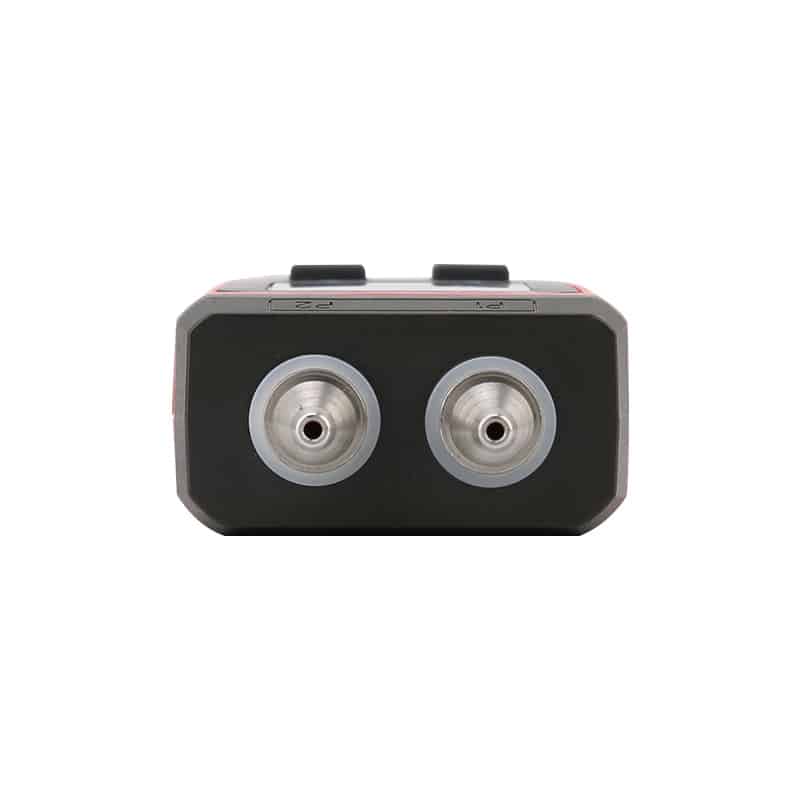

● P1/P2 measure independently
● Wind speed measurement (Optional)
| Specifications | Range | UT366A |
|---|---|---|
| Certifications | CE, UKCA | |
| Resolution | ||
| 0.00 ～ ±15.00 kPa | 0.01 kPa | |
| 0.0 ～ ±150.0 mbar | 0.1 mbar | |
| 0.000 ～ ±0.150 bar | 0.001 bar | |
| 0.000 ～ ±2.175 psi | 0.001 psi | |
| 0.0 ～ ±112.5 mmHg | 0.1 mmHg | |
| 0.00 ～ ±60.29 inH2O | 0.01 inH2O | |
| 0.000 ～ ±4.429 inHg | 0.001 inHg | |
| 0.00 ～ ±34.80 ozin² | 0.01 ozin² | |
| 0.000 ～ ±0.152 kgcm² | 0.001 kgcm² | |
| 0.000 ～ ±5.026 ftH2O | 0.001 ftH2O | |
| 0.0 ～ ±1531 mmH2O | 1 mmH2O | |
| 0.0 ～ ±150.0 hPa | 0.1 hPa | |
| 0.0～ 19999.9 m/s | 0.1 m/s | |
| 0～ 199999 fpm | 1 fpm | |
| Accuracy | ±0.5% FS@25℃ | |
| Unit conversion | kPa, mbar, bar, psi, mmHg, inH2O, inHg, ozin2, kgcm2, ftH2O, mmH2O, hPa, m/s(fpm) | |
| Auto power off | 5 Minutes | |
| Low battery indication | Support | |
| LCD Type | FSTN | |
| Backlight | White | |
| Drop test | 1m | |
| LED Indication | Positive pressure: green light; Negative pressure: red light | |
| Operating temperature/humidity | 0～50℃ ≤85%RH | |
| Storage temperature/humidity | 10～60℃ ≤75%RH | |
| General characteristics | ||
| Power | 3 *1.5V (AAA ) | |
| LCD Size | 31*32mm | |
| Product color | Red and gray | |
| Product size | 5330137.8mm | |
| Standard accessories | Battery, hose, carrying bag, magnetic hook | |
| Standard individual packing | Gift box, carrying bag, manual | |
| Standard quantity per carton | 10 |
