Description

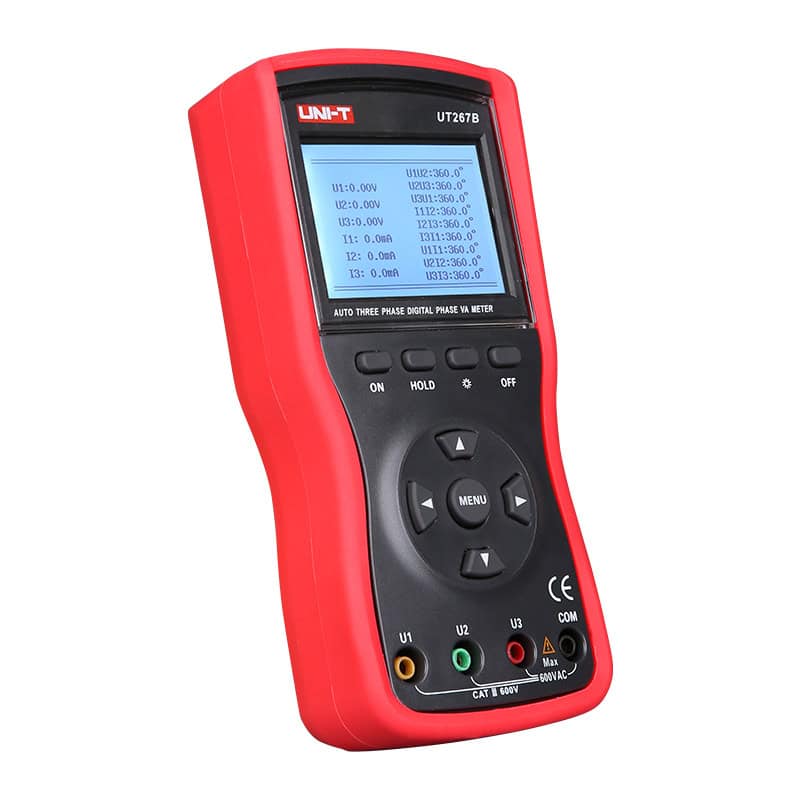

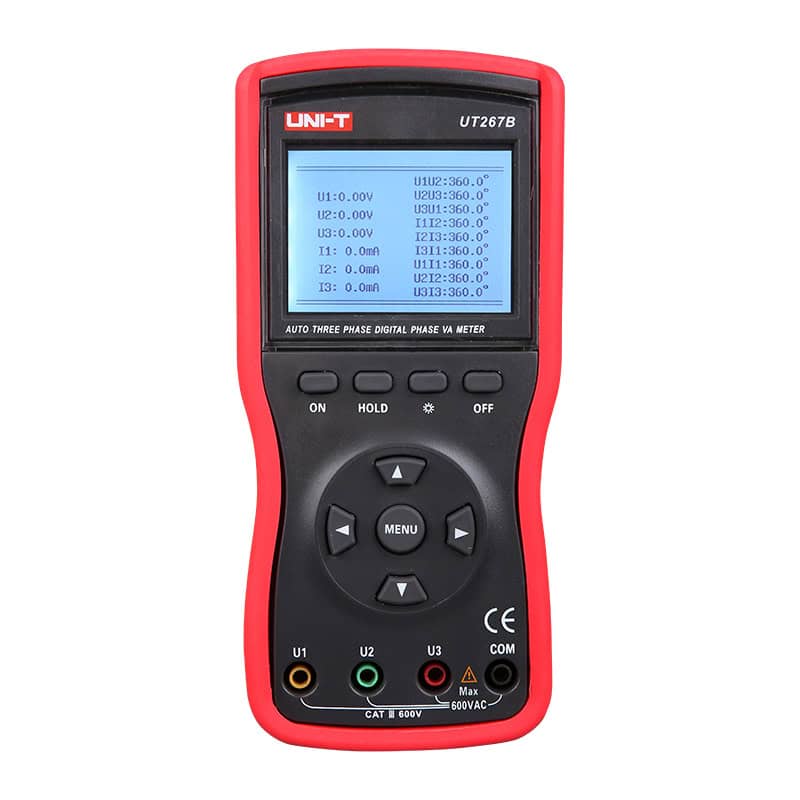

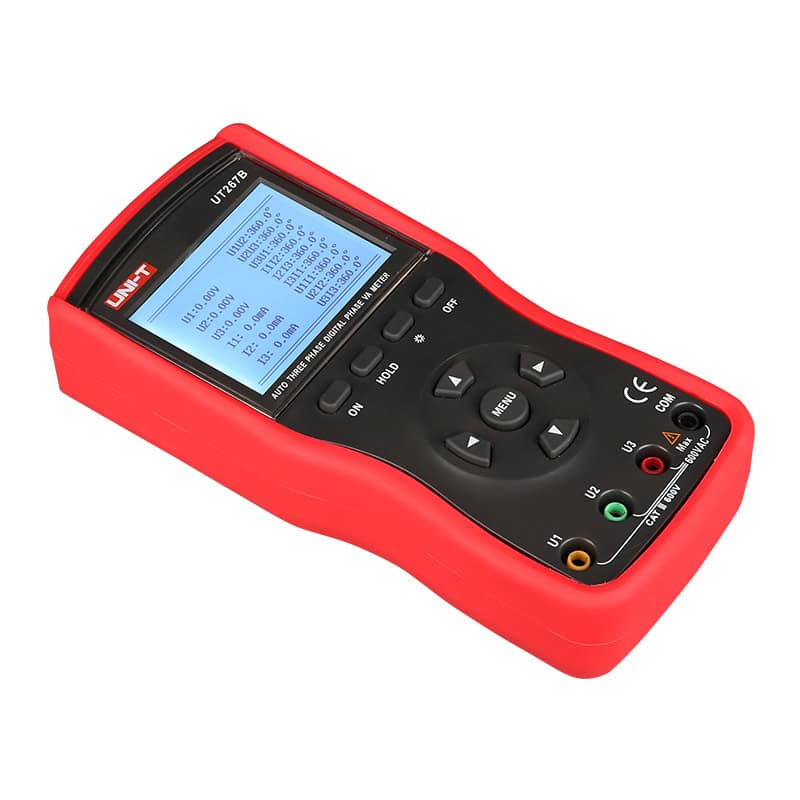

UT267B is an economical 3 phase meter. The meter is able to simultaneous measure 3 phase systems and display phase diagram on the LCD screen. The meter can be used to monitor electric distribution box, suitable for electricians, electrical maintenance, repair, and training personnel.
● Measures voltage, current, power, frequency, relationships between U-U, U-I, I-I all at the same time
● Auto range, 2/s sampling rate
● Data hold
● RS-232 interface
● Low power consumption (40mA), low battery indication
● Auto power off; LCD backlight
● Anti-vibration, anti-skidding, high-insulation case
● LCD: 240×160 pixel display
● Comes with 0.5A current clamp
INCLUDES:
1 x UT267B, tool box, English manual, Batteries, current clamps (3pcs), test leads (1 yellow, 1 green, 1 red, 1 black)
SPECIFICATIONS:
| Specifications | Range | UT267B |
| AC current (A) | 0mA~20A | ±(1.5%+3) |
| AC voltage (V) | 0V~600V | ±(1.5%+3) |
| Frequency (Hz) | 45Hz~65Hz | ±(2%+3) |
| Active power (W) | 0W~12kW | ±(3%+3) |
| Apparent power (VA) | 0VA~12kVA | ±(3%+3) |
| Reactive power (VAR) | 0VAR~12kVAR | ±(3%+3) |
| Power factor | -1~+1 | ±0.03 |
| Phase angle (°) | 0°~360° | ±1° |
| Current vector sum | 0mA~60A | √ |
| Phase sequence test | Forward rotation, U1-U2-U3 or I1-I2-I3; reverse rotation, U1-U3-U2 or I1-I3-I2 |
√ |
| Features | ||
| Display mode | LCD: 240 dots×160 dots | √ |
| Clamp size | Acuminate current clamp: 7.5mm×13mm (optional) Round jaw current clamp: 35mm×40mm (optional) |
|
| Auto range | √ | |
| RS-232 | √ | |
| Data storage | 99 | |
| LCD backlight | √ | |
| Data hold | √ | |
| Input impedance for DCV | ≥2MΩ | √ |
| Auto power off | About 15 minutes | √ |
| Low battery indication | √ | |
| Sampling rate | About 0.5 times/s | √ |
| General Characteristics | ||
| Power | 1.5V battery (LR6) x 6 | |
| Product color | Red and grey | |
| Product net weight | 550g | |
| Product size | 196mm x 92mm x 54mm | |
| Standard accessories | Batteries, current clamps (3pcs), test leads (1 yellow, 1 green, 1 red, 1 black) | |
| Standard individual packing | Gift box, tool box, English manual | |
| Standard quantity per carton | 1pcs | |
| Standard carton measurement | 337mm x 136mm x 333mm | |
| Standard carton gross weight | 3.3kg | |
