Description

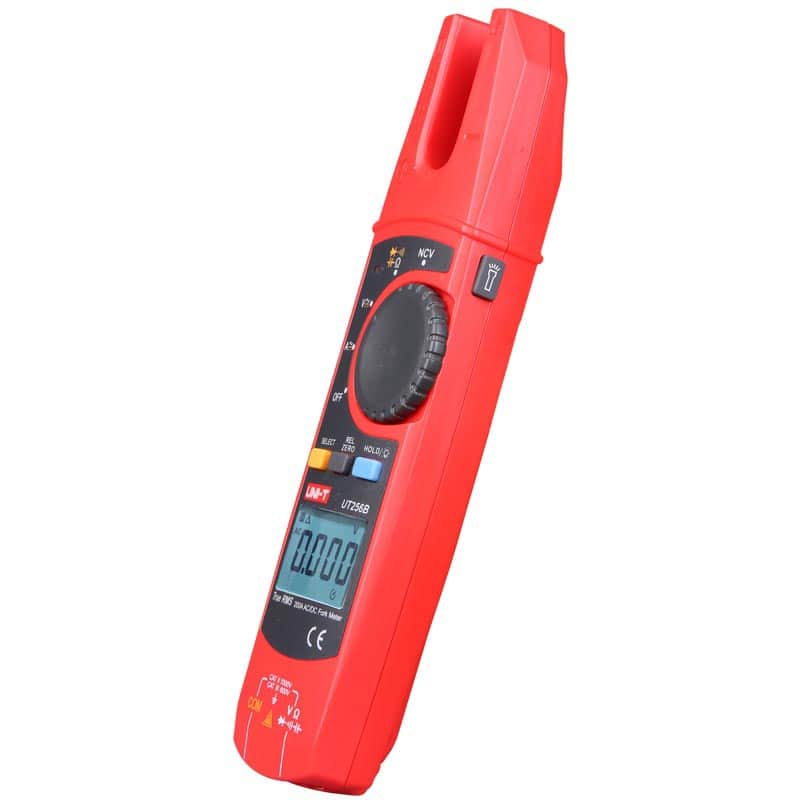

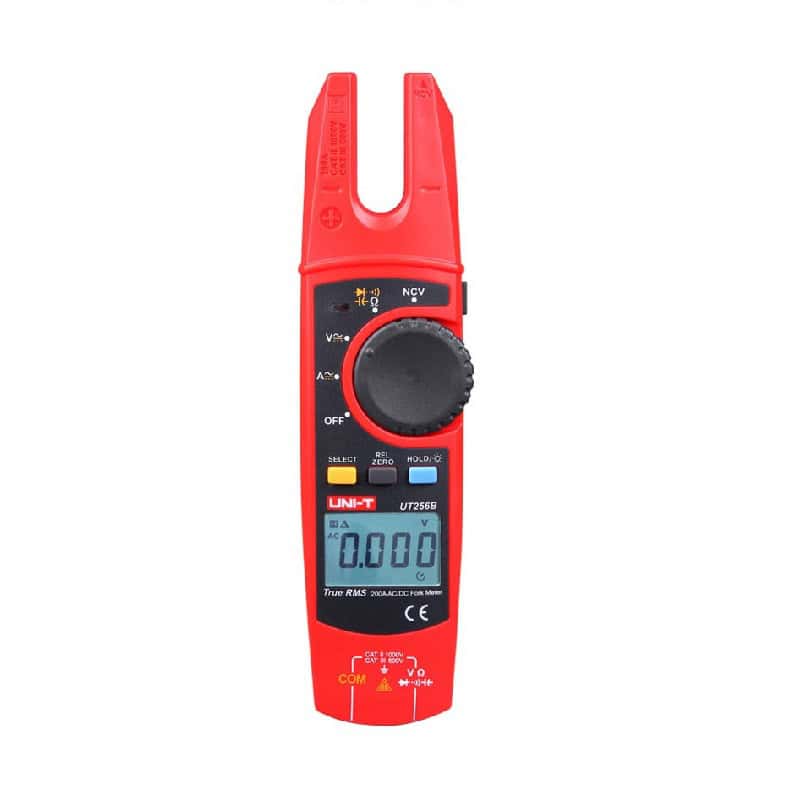

UT256B True RMS fork meter. Its unique design allows users to measure current by simply moving the wire of interest inside the opening of the ‘fork’ past the labelled mark. With no mechanical parts, this meter bares no risk from any type of mechanical failure.
The UT256B is a heavy-duty Fork Meter designed for professional residential, commercial and industrial applications.
FEATURES:
- CAT II 1000V, CAT III 600V
- Auto range
- True RMS
- AC/DC
- NCV
- Diode test
- Data hold
- Capacitance
- Auto power off
- Continuity buzzer
- Low battery indication: ≤2.4V
- Input protection
- LCD backlight.
INCLUDES:

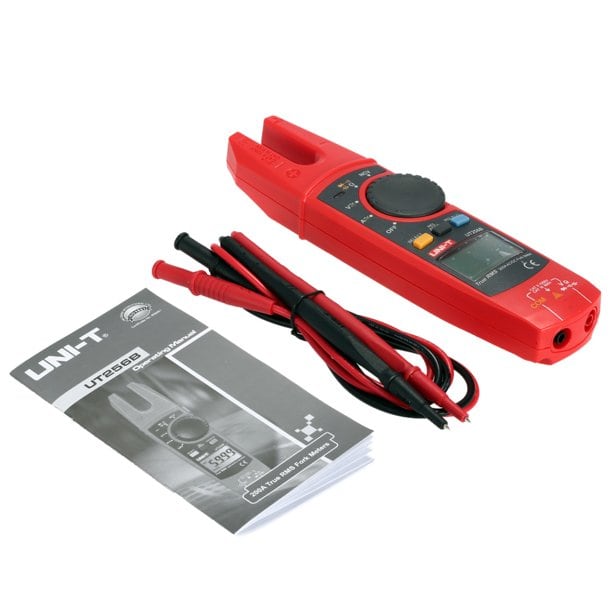

1 x UT256B, Batteries, test leads, carrying bag, 1 x English user manual and 12-month warranty.
SPECIFICATIONS:
| Specifications | Range | UT256B |
| Certifications | CE/RoHS/cETLus | |
| Safety ratings | CAT II 1000V, CAT III 600V | |
| AC current (A) | 200A | ±(2.5%+5) |
| DC current (A) | 200A | ±(2.5%+5) |
| AC voltage (V) | 750V | ±(1.2%+3) |
| DC voltage (V) | 1000V | ±(0.8%+3) |
| Resistance (Ω) | 60MΩ | ±(1%+2) |
| Capacitance (F) | 60mF | ±(4%+20) |
| Display count | 6000 | |
| Diode test | About 3V | √ |
| NCV | √ | |
| Zero mode | √ | |
| Relative mode | √ | |
| General Characteristics | ||
| Power | 1.5V battery (LR6) x 2 | |
| Display | 36.5mm x 24mm | |
| Product net weight | 248g | |
| Product size | 210mm x 53mm x 35mm | |
| Standard accessories | Batteries, test leads, English manual | |
| Standard individual packing | Box, carrying bag | |
