Description

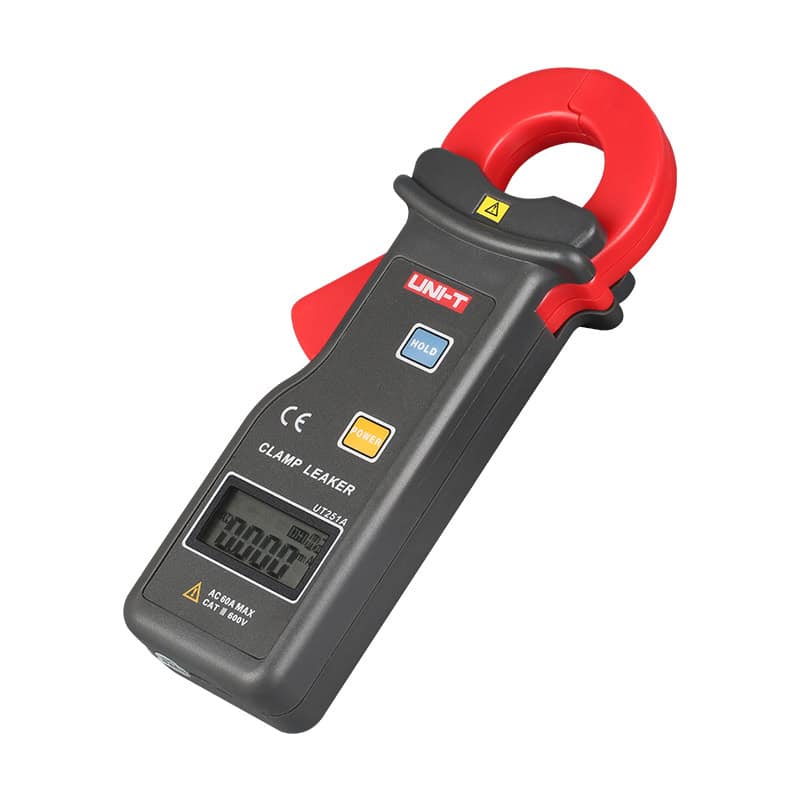

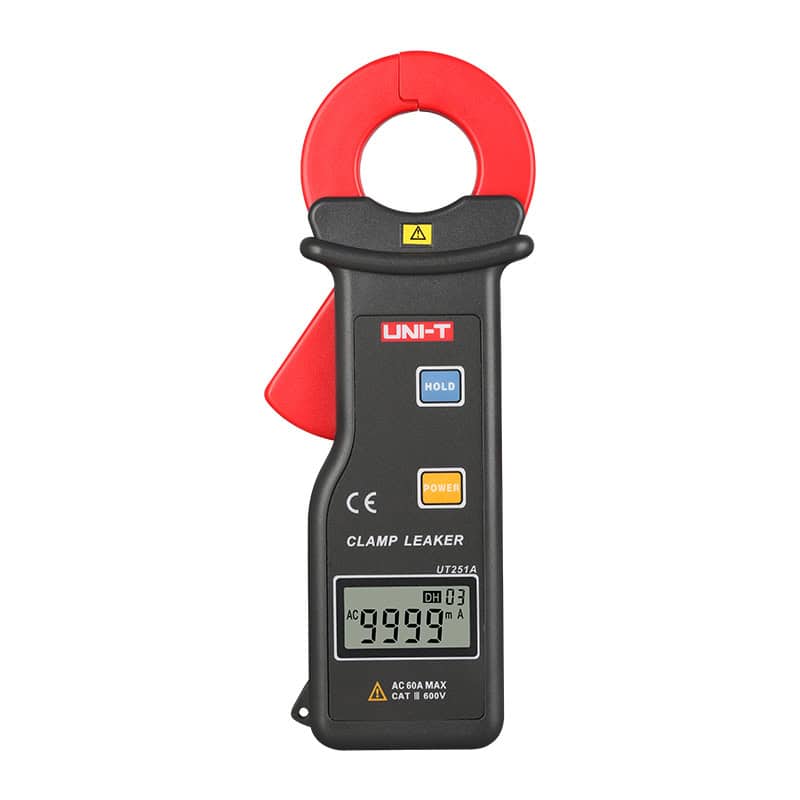

UT251A High Sensitivity Leakage Current Clamp Meter high-accuracy high sensitivity leakage current clamp meters are designed for testing AC leakage current. These high-resolution meters are great for applications such as checking leakage current for motor, home appliances, and other electrical equipment up to 600A.
Features
- 4-digit LCD digital display, 10000 display count
- Auto range, 2/s sampling rate
- Peaks hold
- Store 99 sets of data
- RS-232 interface
- Data hold
- Auto power off
- Overload indication, low battery indication
| Specifications | Range | UT251A |
| Leakage current (A) | 0.001mA～60A | ±(1.5%+5) |
| Voltage (Freq.) 0V~600V (50Hz/60Hz) | √ | |
| Resolution | 1uA | |
| Secondary Features | ||
| Display | 4 digits LCD | √ |
| Clamp size | 25mm x 30mm | |
| Auto range | √ | |
| RS-232 | √ | |
| Data storage | 99 | |
| Peak/Data hold | √ | |
| Overload protection | OL | √ |
| Auto power off | 5 minutes | √ |
| Low battery indication | ≤7.2V | |
| Over-range display | OL | √ |
| Test mode | Clamp CT, integral mode | √ |
| General Characteristics | ||
| Power | 9V battery (6F22) | |
| Display | 32mm x 15mm | |
| Product color | Red and grey | |
| Product net weight | 120g | |
| Product size | 175mm x 70mm x 38mm | |
| Standard accessories | Battery, RS-232 interface cable, PC software CD | |
| Standard individual packing | Gift box, carrying bag, English manual, toolbox | |
| Standard quantity per carton | 6pcs | |
| Standard carton measurement | 385mm x 290mm x 115mm | |
| Standard carton gross weight | 3.3kg | |
