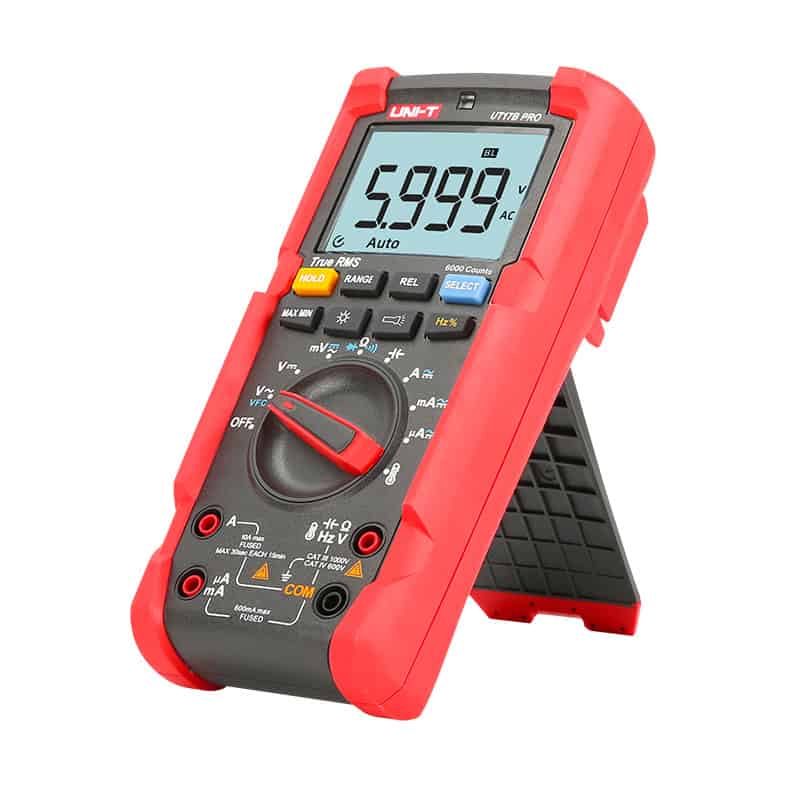

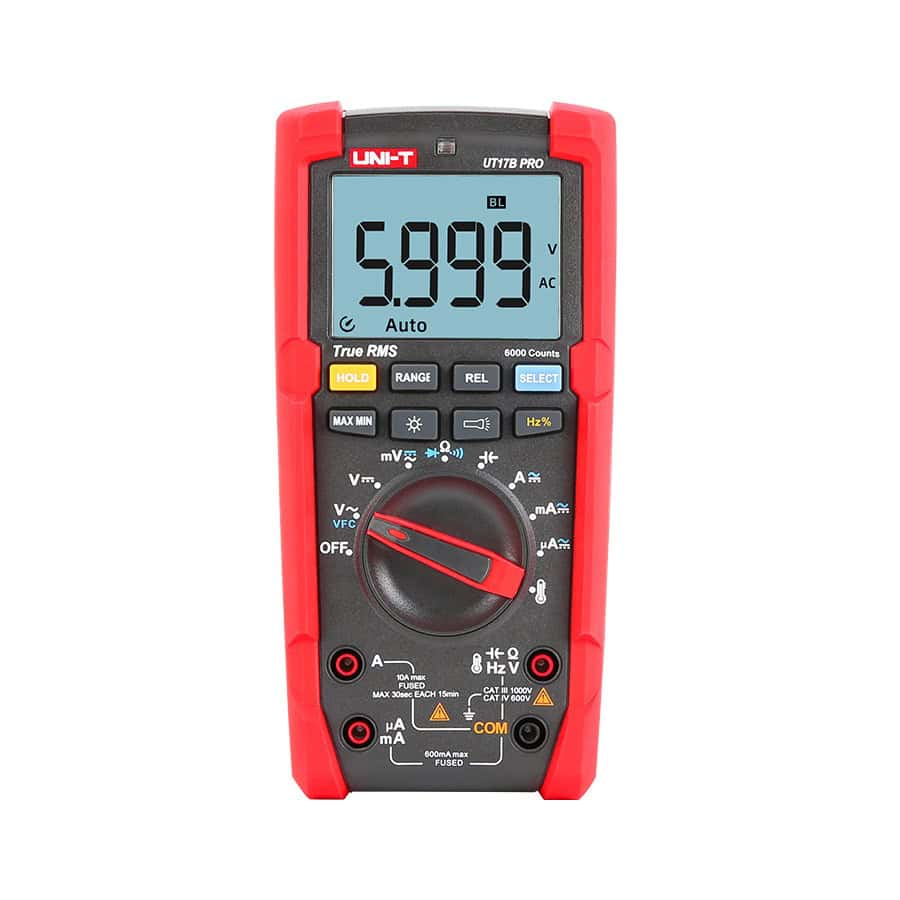

Uni-T UT17B-PRO Digital Multimeter

SKU: UT17B-PRO
Where To BuyRequest A Quote

UT17B PRO is highly reliable, safe and durable true RMS multimeters with CAT III 1000V/CAT IV 600V ratings.

SKU: UT17B-PRO Categories: ,

Description

UT17B PRO is highly reliable, safe and durable true RMS multimeters with CAT III 1000V/CAT IV 600V ratings. Equipped with a built-in VFC, it can filter interference, resulting in a more accurate voltage reading.

These meters come with gold plated test leads for quick and accurate measurement. UT15B PRO/UT17B PRO also provides full range 1000V protection, as well as 8kV transient voltage protection, which can
withstand sudden high voltage shocks.

FEATURES:

  • VFC
  • Auto range
  • Relative mode
  • Flashlight
  • True RMS
  • Continuity test
  • Diode test
  • Max/Min
  • Data hold
  • Low battery indication
  • Auto backlight
  • Auto power off.

INCLUDES:
1 x UT17B-PRO, test lead, temperature probe, cloth bag, 1 x English user manual and 12-month warranty.

SPECIFICATIONS:

Specifications Range UT17B PRO
Certifications CE/RoHS/cETLus
Safety ratings CAT III 1000V/CAT IV 600V
DC voltage (V) 1000V ±(0.5%+3)
AC voltage (V) 1000V ±(1%+3)
AC current (A) 10A ±(1%+3)
DC current (A) 10A ±(0.8%+3)
Resistance (Ω) 60MΩ ±(0.5%+2)
Capacitance (F) 6000μF ±(2%+5)
Frequency (Hz) 10Hz~100kHz ±(0.1%+3)
Duty cycle 1%~99% ±(1%+4)
Temperature (°C/℉)  -55℃~500℃/-67℉~932℉ ±(2%+1)
Display count 6000
AC frequency response 40~500Hz
General Characteristics
Power 1.5V battery (LR6) x 2
Product net weight 484g
Product size 195mm x 95mm x 58mm
Standard accessories English manual, test lead, temperature probe
Standard individual packing Box, cloth bag

Documents
