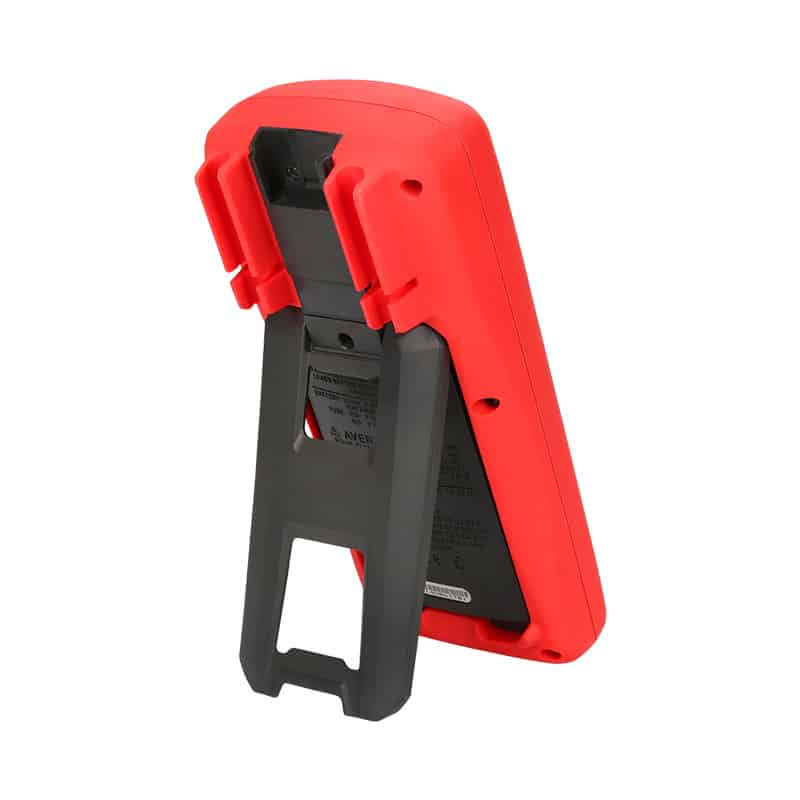

Uni-T UT171C Industrial True RMS Digital Multimeter

SKU: UT171C
Where To BuyRequest A Quote

UT171C is an industrial-grade multimeter used by professionals with USB/Bluetooth communication.

Description

UT171C is an industrial-grade multimeter used by professionals. Its built-in square wave output is useful for troubleshooting industrial control signals. Its LoZ (ACV) feature can be used to identify residual (ghost) voltage in large capacitors.

FEATURES:

  • AC+DC measurement
  • Peak hold
  • Rechargeable battery
  • VFC low-pass filtering
  • USB/Bluetooth communication.

APPLICATIONS:

  • Capacitance measurement
  • Resistance measurement.

INCLUDES:
1 x  UT171C, 1 x  carrying bag, 1 x English manual and 12-month warranty

SPECIFICATIONS:

Specifications Range UT171B UT171C
DC voltage (V) 1000V ±(0.025%+5) ±(0.025%+5)
AC voltage (V) 1000V ±(0.4%+40) ±(0.4%+40)
DC current (A) 10A ±(0.15%+2) ±(0.15%+2)
AC current (A) 10A ±(0.75%+5) ±(0.75%+5)
Resistance (Ω) 40MΩ
60MΩ ±(0.05%+2) ±(0.05%+2)
Admittance (nS) 60nS ±(1%+10) ±(1%+10)
Capacitance (F) 40mF
60mF ±(2.5%+40) ±(2.5%+40)
Frequency (Hz) 10Hz~10MHz ±(0.01%+5) ±(0.01%+5)
Temperature (°C)  -40°C~1000°C ±(1%+30) ±(1%+30)
Temperature (°F)  -40°F~1832°F ±(1.5%+50) ±(1.5%+50)
Features
Display count 60000 60000
Auto/Manual range
True RMS
Bandwidth (Hz) 100kHz
4~20mA loop 0~100%
LoZ (ACV) Around 3kΩ
Diode Around 3V
Continuity buzzer
Duty cycle 0.1%~99.9%
NCV/Data hold/MAX/MIN
Relative mode
Data storage 9999 9999
Display type EBTN OLED
Analog bar graph 31 31
LCD backlight
Mis-plug alarm
Low battery indication
Auto power off
Input protection
Input impedance for DCV
Input impedance for DCV Around 1GΩ
General Characteristics
Power 7.4V 2000mAh Li-ion battery
Display 70.6mm x 35.3mm
Product colour Red and grey
Product net weight 384g
Product size 206mm x 95mm x 55mm
Standard accessories Batteries, test leads, point contact temperature probe,
USB interface cable, power adaptor (UT171B/C), PC software CD
Standard individual packing Box, carrying bag, English manual
