Description

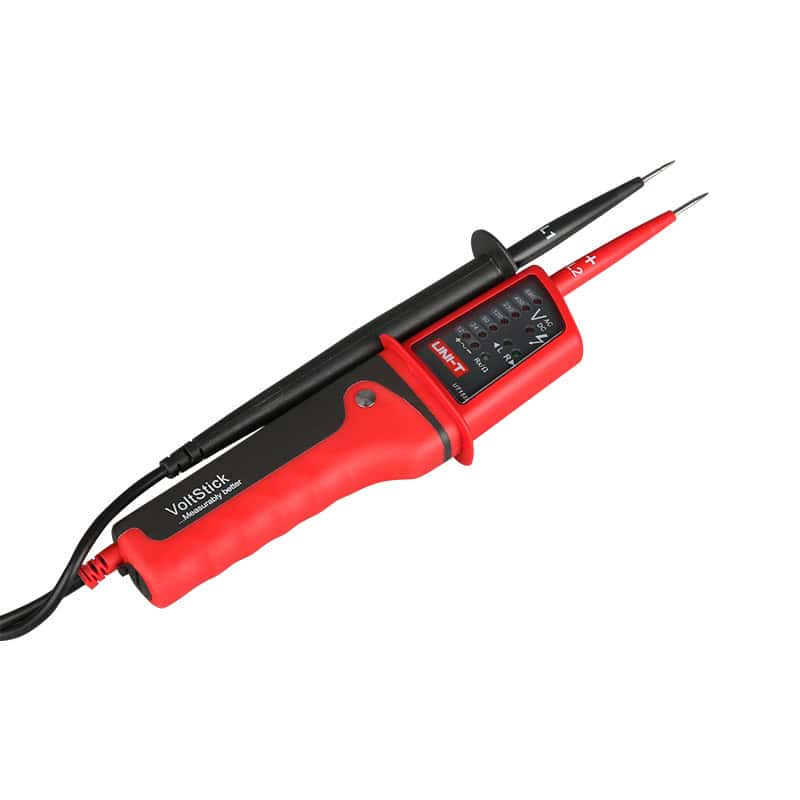

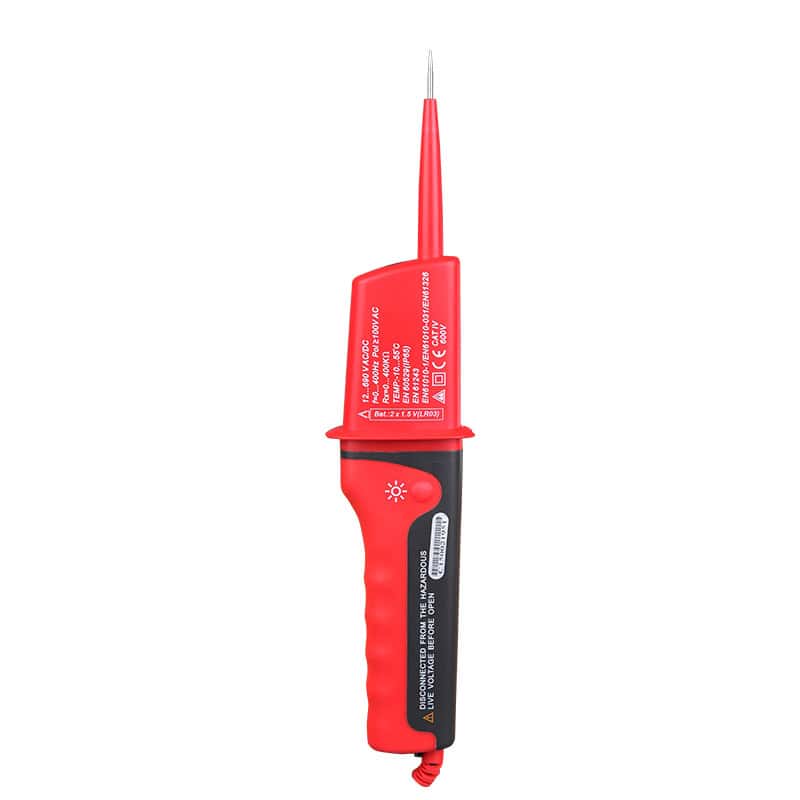

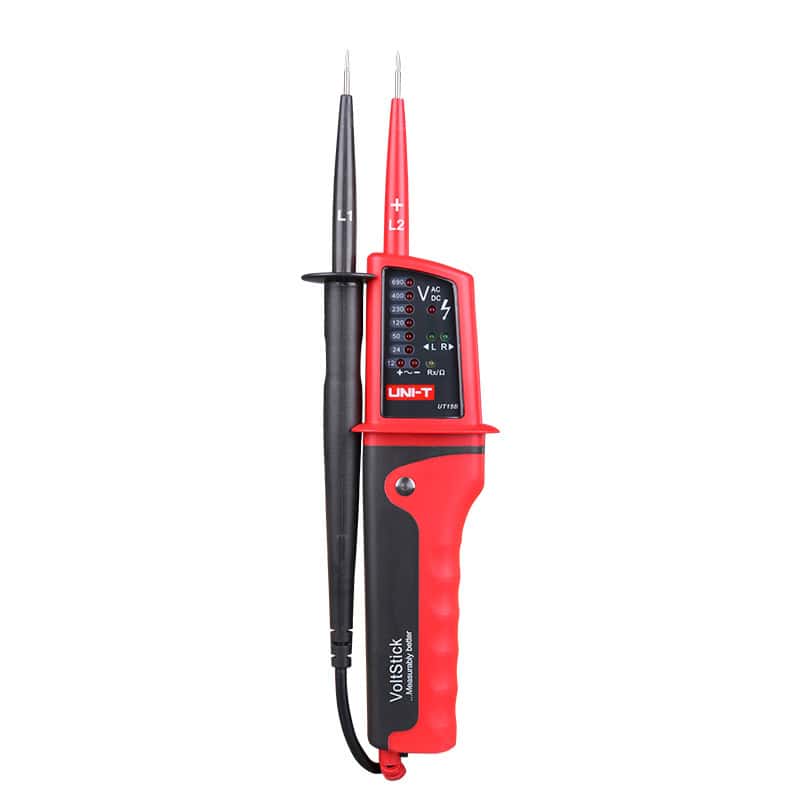

The UT15C test pen has the functions: AC/DC voltage measurement (include three-phase AC), phase position indication of three-phase AC, continuity test and single probe measurement (judge null wire or live wire). It can also solve the complex problems of electric, factory automation, etc.
FEATURES:
● AC/DC voltage measurement
● Continuity test
● Single probe measurement
● Phase position indication of three-phase AC
INCLUDES:
1 x UT15C, English manual, batteries, 12-month warranty
SPECIFICATIONS:
| Specifications | Range | UT15C |
|
LED AC/DC voltage indication (V)
|
12V | 0~12V |
| 24V | 17V±2V | |
| 50V | 35V±5V | |
| 120V | 80V±15V | |
| 230V | 165V±20V | |
| 400V | 300V±30V | |
| 690V | 510V±40V | |
|
Phase rotation test
|
Operating Voltage: 0V~690V |
√
|
| Frequency: 50Hz~60Hz | ||
|
Single lead (L2) voltage detection
|
Operating Voltage: 0V~690V |
√
|
| Frequency: 50Hz~400Hz | ||
|
Continuity test
|
Resistance: 0~100kΩ |
√
|
| Beeper and LED light Indicator | ||
| Polarity detection | Positive & Negative | √ |
| Features | ||
|
Water-proof (IP65)
|
√ | |
| Auto range | √ | |
| Work light | √ | |
| Low battery indication | Short circuit two leads, LED and beeper off when the bettery is low | √ |
| LCD AC/DC voltage display | 24V~690V | ±(3%+5) |
| General Characteristics | ||
| Power | 1.5V battery (R03) × 2 | |
| Display | UT15C- 23mm × 12mm | |
| Product color | Red and grey | |
| Product net weight | 210g | |
| Product size (W x H x D) | 275mm × 51mm × 30mm | |
| Standard accessories | Batteries | |
| Standard individual packing | Blister, English manual | |
| Standard quantity per carton | 30 pcs | |
| Standard carton measurement | 440mm × 395mm × 455mm (0.079CBM Per standard carton) | |
| Standard carton gross weight | 17kg | |
