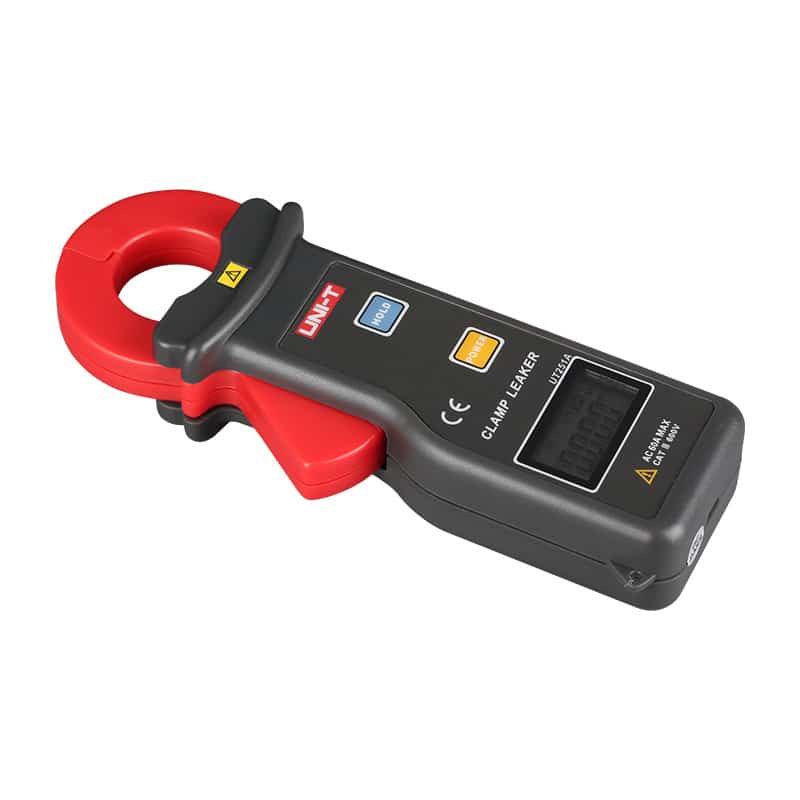

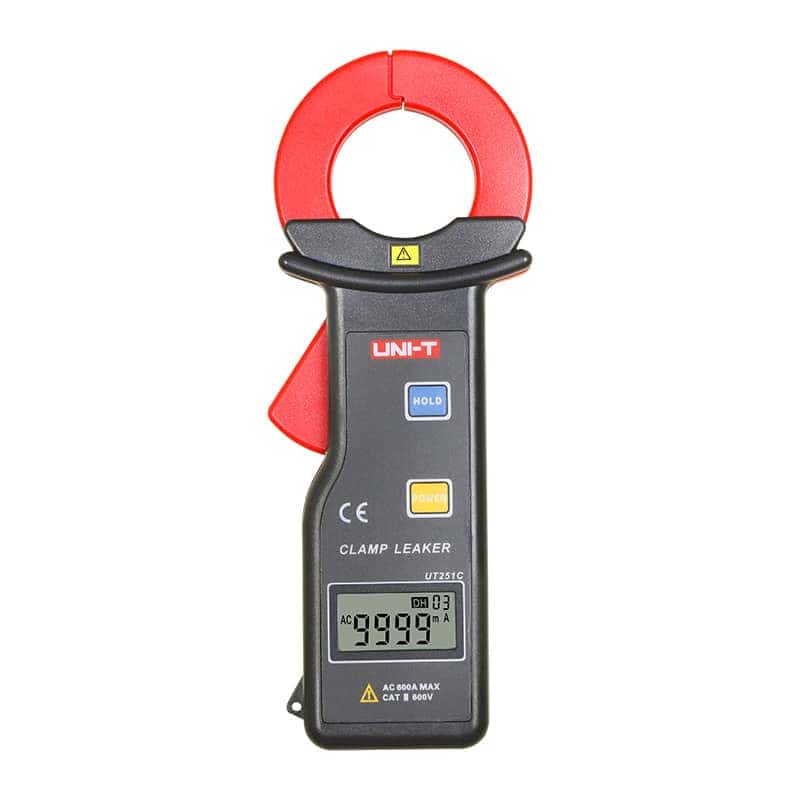

Uni-T 251C Leakage Current Clamp Meter

SKU: UT251C
Where To BuyRequest A Quote

High-resolution meters are great for applications such as checking leakage current for motors, home appliances and other electrical equipment up to 600A.

SKU: UT251C Categories: ,

Description

UT251 series high-accuracy high sensitivity leakage current clamp meters are designed for testing AC leakage current. These high-resolution meters are great for applications such as checking leakage current for motors, home appliances and other electrical equipment up to 600A.

FEATURES:

  • 4-digit LCD digital display, 10000 display count
  • Auto range, 2/s sampling rate
  • Peaks hold
  • Store 99 sets of data
  • RS-232 interface
  • Data hold
  • Auto power off
  • Overload indication, low battery indication.

INCLUDES:
1 x Leakage current clamp meter, 1 x English manual and 12-month warranty.

SPECIFICATIONS:

Specifications Range UT251C
Leakage current (A) 0.001mA~60A ±(1.5%+5)
60A~199.9A ±(2%+5)
200A~300A ±(3%+5)
300A~600A ±(4%+5)
Voltage (Freq.) 0V~600V (50Hz/60Hz)
Resolution 1mA
Features
Display 4 digits LCD
Clamp size 35mm x 40mm
Auto range
RS-232
Data storage 99
Peak/Data hold
Overload protection OL
Auto power off 5 minutes
Low battery indication ≤7.2V
Over-range display OL
Test mode Clamp CT, integral mode
General Characteristics
Power 9V battery (6F22)
Display 32mm x 15mm
Product colour Red and grey
Product net weight 120g
Product size 175mm x 70mm x 38mm
Standard accessories Battery, RS-232 interface cable, PC software CD
Standard individual packing Box, carrying bag, English manual, toolbox

Documents

Uni-T 251C Leakage Current Clamp Meter English Manual

Uni-T 251C Leakage Current Clamp Meter Software Instruction

Uni-T 251C Leakage Current Clamp Meter Flyer
