Description
The TA123DZ & TA123DZV are single-ball-valve, digital single-gauge manifolds designed for refrigerants R410A and R32, with a compact, user-friendly design.
Features:
- Single-service port: light and compact; both vacuum and refrigerant charging can be performed with a single valve and without changing hoses.
- Refrigerant Compatibility: R410A and R32, with saturation temperature scales for both. Also supports 8 refrigerants total: R410A, R32, R134a, R404A, R407C, R1234yf, R22, and R502
- Gauge: 78 mm diameter digital gauge, high precision; IP65-rated dust–water resistant.
- Power: Operates on a 3 V lithium battery (CR123A), with approx. 2 years of usage; Auto Power-Off after 10 minutes, with pressure display on restart
- Display: Backlit LCD screen for easy reading in low-light settings

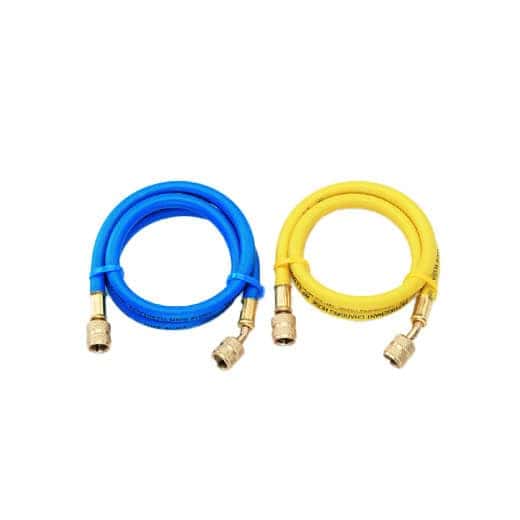

- Hoses: 2 x 92cm or 150cm hoses (blue/yellow)
- Connections: 5/16″ SAE flare; gauge mounting screw 1/8″ NPT. ABS resin case included
Specifciations:
| Model | Valve Type | Gauge Ports | Hose Fittings | Hoses | |
| TA123DZ-1-EXP | Ball-valve knobs | 1/8″ NPT | 5/16″ (½-20 UNF) | 3 × 92 cm hoses (R/B/Y) | |
| TA123DZ-2-EXP | Ball-valve knobs | 1/8″ NPT | 5/16″ (½-20 UNF) | 3 × 150 cm hoses (R/B/Y) | |
| TA123DZV-1-EXP | Ball-valve knobs | 1/8″ NPT | 5/16″ (½-20 UNF) | 3 × 92 cm hoses with ball valves (R/B/Y) | |
| TA123DZV-2-EXP | Ball-valve knobs | 1/8″ NPT | 5/16″ (½-20 UNF) | 3 × 150 cm hoses with ball valves (R/B/Y) | |
Options:
1 x TA123DZ-1-EXP Manifold with 2 x 92cm hoses (blue/yellow) and case
1 x TA123DZ-2-EXP Manifold with 2 x 150cm hose (blue/yellow) and case.
1 x TA123DZV-1-EXP Manifold with 2 x 92cm hoses with ball valves ( blue/yellow) and case
1 x TA123DZV-2-EXP Manifold with 2 x 150 hoses with ball valves (blue/yellow) and case
