Description

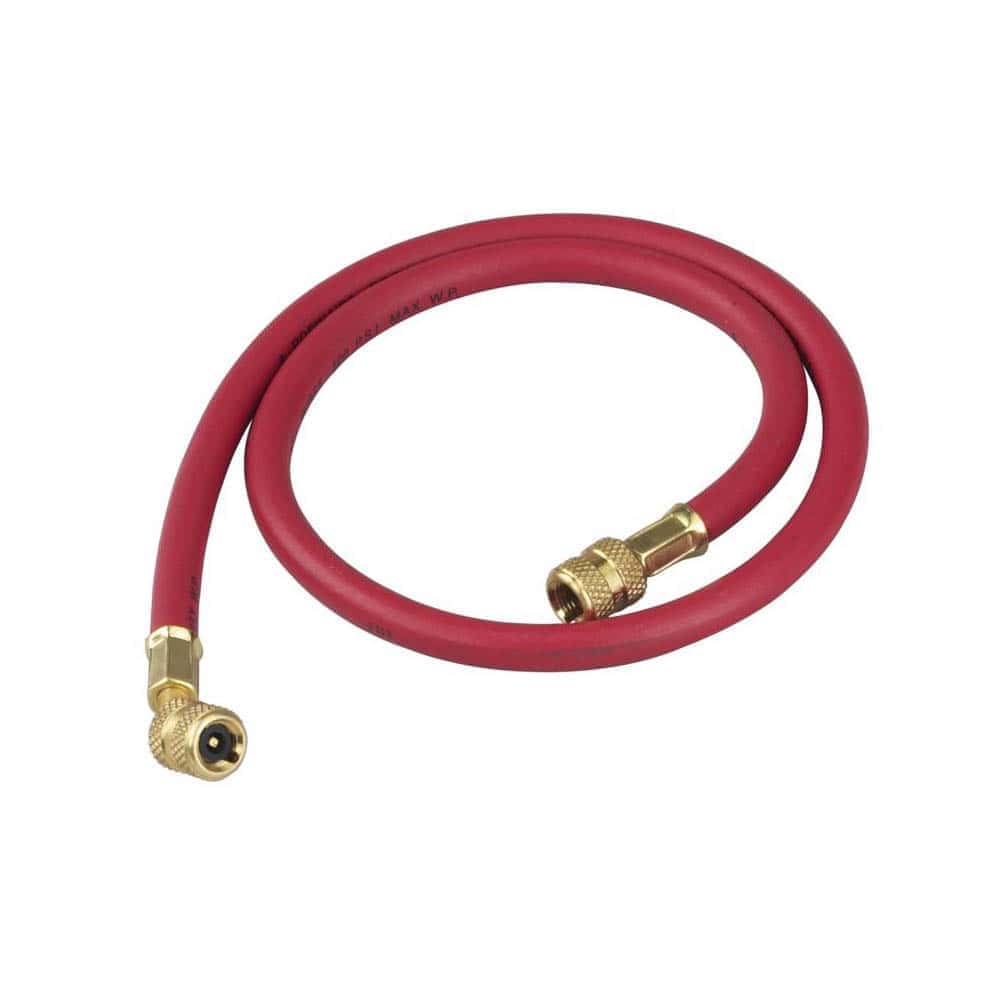

High-performance refrigerant charging hoses with standard 1/4″ FFL fittings, built for reliability and long life. Available in blue (low side) or red (high side) to match standard HVAC color coding.
FEATURES:
- 36 in (90 cm) hose length
- Working pressure: 800 psi
- Burst pressure: 3,800 psi
- Fittings: 1/4″ FFL (female flare) × 1/4″ FFL standard fittings
- Durable neoprene outer jacket with rugged crimps
- Knurled coupler nuts for easy hand tightening
- One end includes 45° bend and valve-core depressor for tight connections
OPTIONS:
RA-32036 –Â 1/4″ x 1/4″ Standard Hose 90cm, Red
RA-33036 – 1/4″ x 1/4″ Standard Hose 90cm, Blue
SPECIFICATIONS:
| Specification | RA-32036 (Blue) | RA-33036 (Red) |
|---|---|---|
| Length | 36 in (91 cm) | 36 in (91 cm) |
| Working Pressure | 500 psi | 500 psi |
| Burst Pressure | 2,500 psi | 2,500 psi |
| Fitting Type | 1/4″ FFL × 1/4″ FFL | 1/4″ FFL × 1/4″ FFL |
| Outer Jacket / Material | Neoprene, flexible & wear-resistant | Neoprene, flexible & wear-resistant |
| Crimp / Coupler Design | Six-sided crimp, deeply knurled nuts | Six-sided crimp, deeply knurled nuts |
| Additional Features | 45° bend fitting + valve core depressor | 45° bend fitting + valve core depressor |
| Use / Application | Low side charging / diagnosis hose | High side charging / diagnosis hose |
