Description

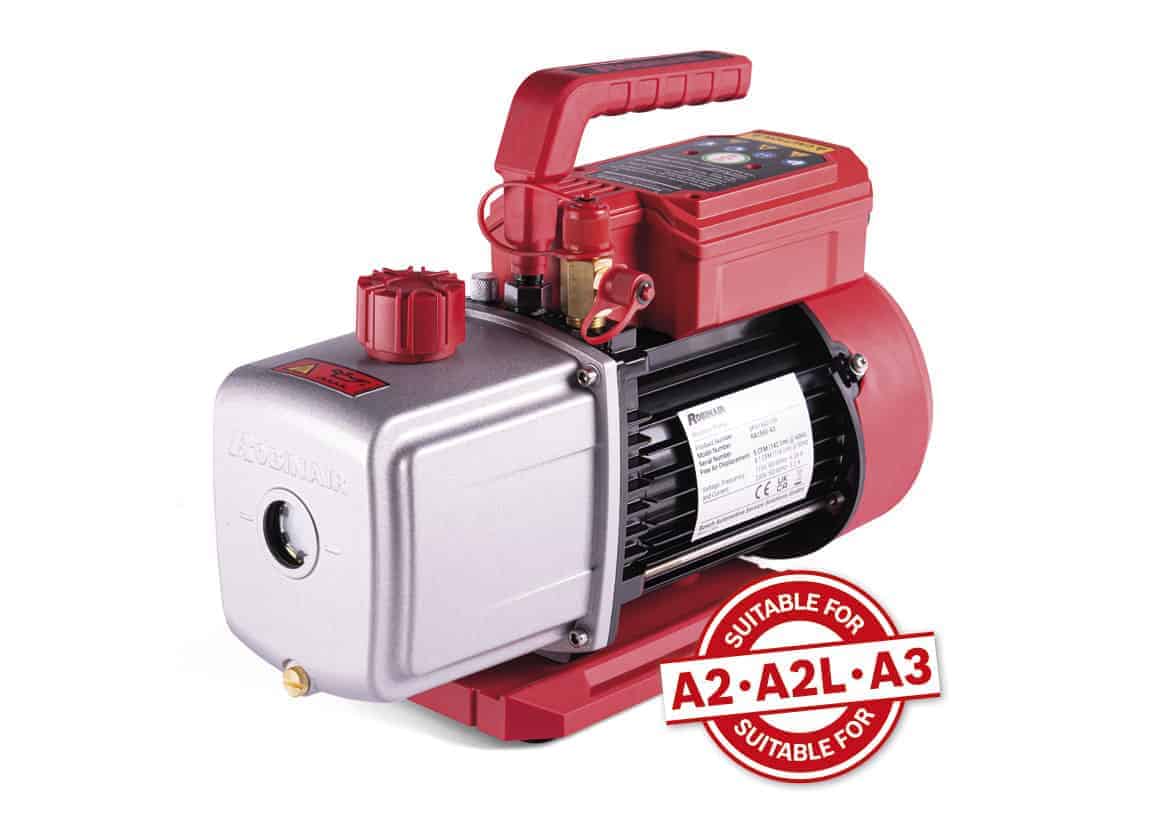

The new A3 VacuMaster high performance vacuum pumps from Robinair. Robinair A3 VacuMaster Vacuum Pumps are a 2‑stage rotary vane vacuum pump with a 3 CFM, 5CFM or 8CFM (cubic feet per minute) displacement, ideal for HVAC and refrigeration professionals.
Features:
- Spark proof components independently tested and validated against applicable sections of ANSI 12.12.01 standard
- For use on Class A1, A2, A2L or A3 refrigerant systems
- Dual voltage, dual frequency motor for use on 120 V or 230 V, 50/60 Hz power supplies
- 2 stage design to achieve lower ultimate vacuum, as low as 20 microns
- Gas ballast valve for deeper vacuum
- Dual inlet ports (1/4” MFL and 3/8” MFL)
- Rubber lined handle, skid resistant rubber base
- Free Air Displacement
– RA1530-A3 @50 Hz: 2.5CFM/71 l/min
– RA1550-A3 @50 Hz: 4,1CFM/116 l/min
– RA1580-A3 @50 Hz: 6.6CFM/187 l/min
Options:
RA-1530-A3 3CFM Vacuum Pump
RA-1550-A3 5CFM Vacuum Pump
RA-1580-A3 8CFM Vacuum Pump
Specifications:
| RA1530-A3 | RA1550-A3
|
RA1580-A3
|
|
| Maximum Current | 115 V 50/60 Hz – 5,84 A 230 V 50/60 Hz – 2,84 A | 15 V 50/60 Hz – 6,26 A 230 V 50/60 Hz – 3,2 A | 115 V 50/60 Hz – 9,87 A 230 V 50/60 Hz – 4,75A |
| Free Air Displacement | 3 cfm (85 l/m) @60 Hz 2.5 cfm (71 l/m) @50Hz | 5 cfm (142 l/m) @60 Hz 4.1 cfm (116 l/m)@50Hz | 8 cfm (227 l/m) @60 Hz 6.6 cfm (187 I/m) @50Hz |
| Ultimate Vacuum | 15 microns (2 Pa) | 15 microns (2 Pa) | 15 microns (2 Pa) |
| Stages | 2 | 2 | 2 |
| Motor | 300 watt | 350 watt | 660 watt |
| Intake Ports | 1/4” & 3/8” Flare | 1/4” & 3/8” Flare | 1/4” & 3/8” Flare |
| Oil Capacity | 560ml | 480ml | 610ml |
| Dimensions | 348 x 140 x 272mm | 348 x 140 x272mm | 382 × 160 × 285mm |
| Weight | 10.2kg | 11.2kg | 15.2kg |
