Description

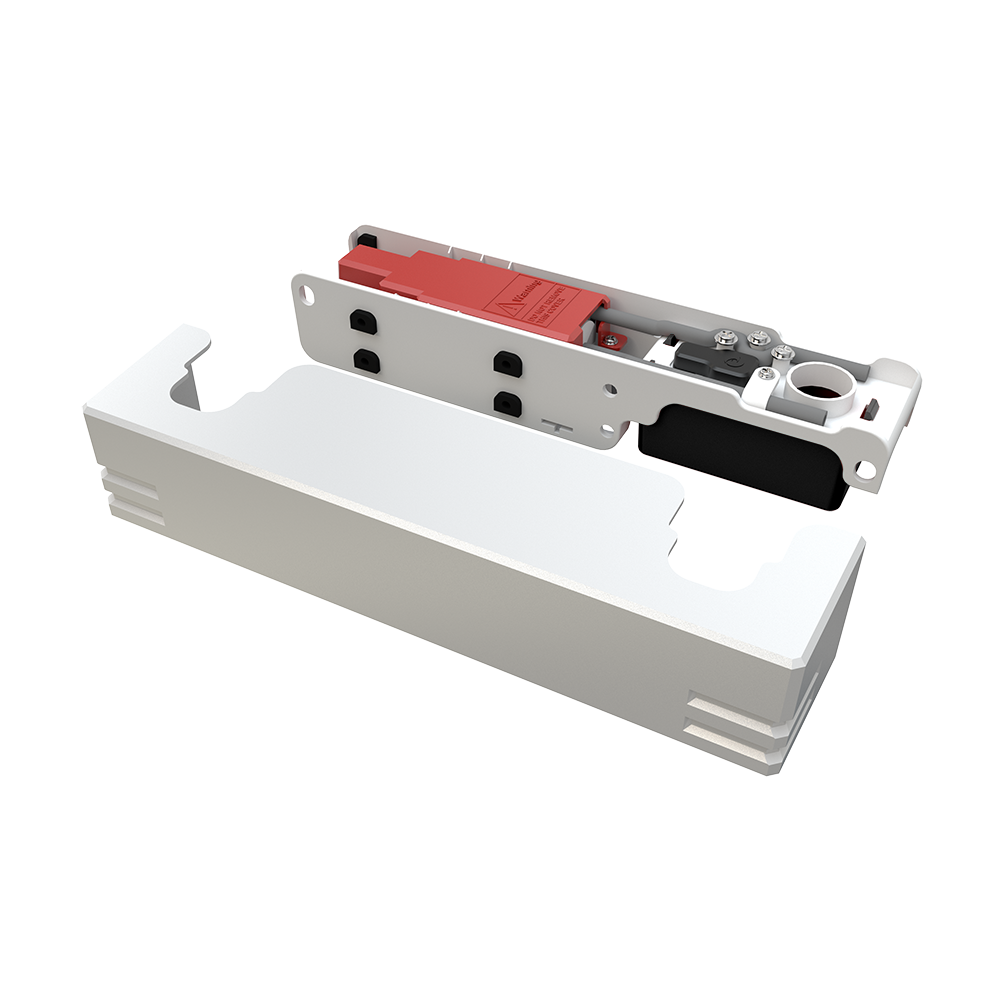

A mini condensate pump in the REDBOX series of pumps.
Designed to automatically remove the drainage liquid produced by air conditioners of a maximum 16kW cooling capacity.
Key Features
- capacity of ac Up to 54,000 BTU/h (16kW)
- power supply 100-240V 50/60Hz
- power consumption 2.5W
- Max. discharge head 20m
- max. flow rate 29 LPH
- size of outlet port 6mm
- available fluid Condensate of 1~40°C
- intermittant rating 3 minutes
- safety switch Max 3A
- Drink cycle 20ml
- dimensions (l x w x h) 282 X 62 X 59mm
- weight 0.5kg
Part No. Content
- Part Name: REDBOX-SLIM
- Description: REDBOX SLIM MINI CONDENSATE PUMP
- Suitable for use on: AC MAX 54,000 BTU/h (16kW
- Quantity: 1
- Brand: REDBOX
- Weight: 0.5kg
- Max head: 20m
- Max flow: 29 LPH
- External dimensions height: 59mm
- External dimensions width: 62mm
- External dimensions depth: 282mm
