Imperial 364-FHA Lever-type benders with Open-side type which slips over tube at any point.

Description

The Imperial 364FHA series has a swivel handle that can be repositioned midway through a bend when both handles begin to meet. This simple feature allows easy fabrication of bends up to 180° with reduced effort, better control and without the crossing of handles, typical of most other lever-type benders.

FEATURES:

  • Each tool bends only one size.
  • Conforms to Federal Specification GGG-B-191a Type III, Class 2.
  • For bending annealed copper, Brass, Steel, Stainless Steel and aluminium tubing only.

SPECIFICATIONS:

1 x Lever Tuber Bender (1 size)  and packaging box.

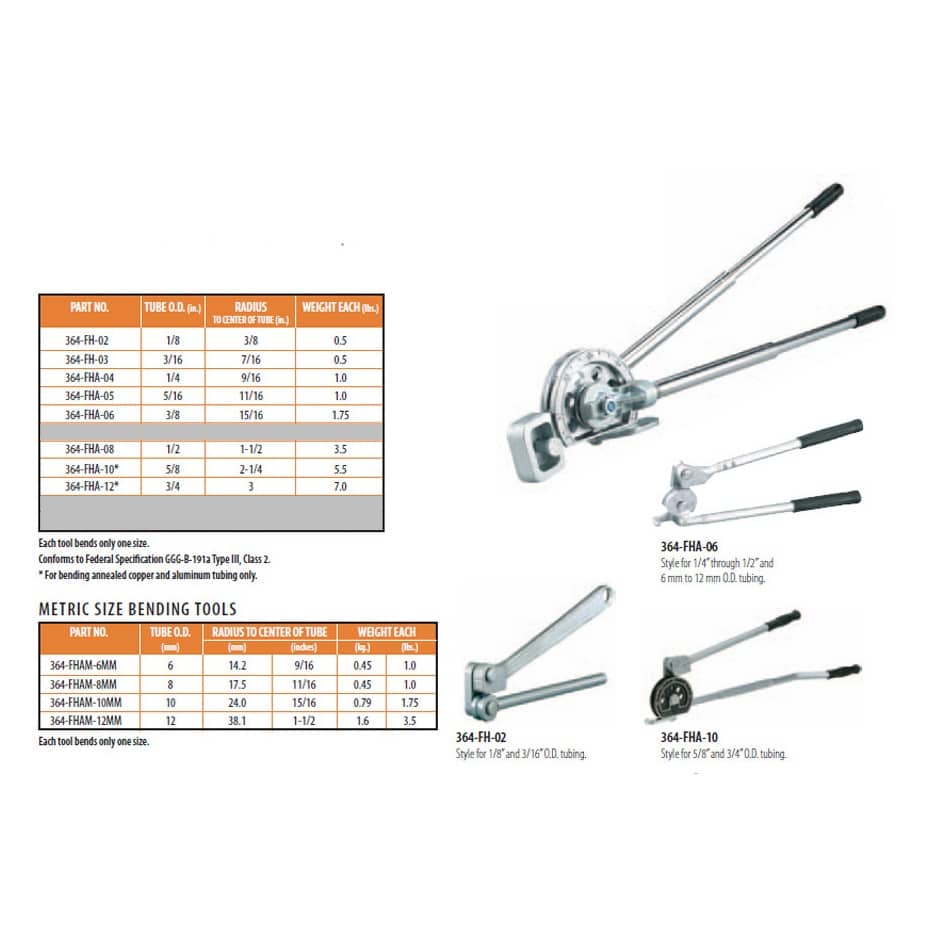

SPECIFICATIONS:

Part No



Tube O.D

(In)

Radius

(To Center of the tube)

WEIGHT EACH

(lbs)

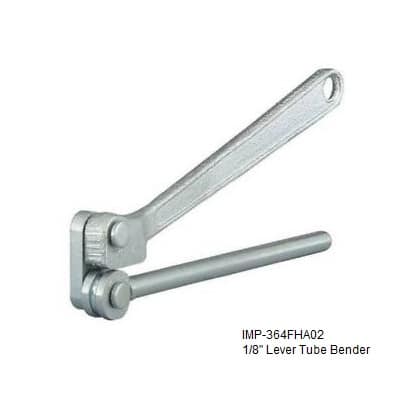

IMP-364FHA02 1/8 3/8 0.5
IMP-364FHA04 1/4 9/16 1.0
IMP-364FHA05 5/16 11/16 1.0
IMP-364FHA06 3/8 15/16 1.75
IMP-364FHA08 1/2 1 1/2 3.5
       IMP-364FHA10 5/8 2 1/4 5.5
IMP-364FHA12 3/4 3 7.0



Additional information

Option

IMP-364FHA02, IMP-364FHA04, IMP-364FHA05, IMP-364FHA06, IMP-364FHA07, IMP-364FHA12, IMP-364FHA10, IMP-364FHA08
