Description

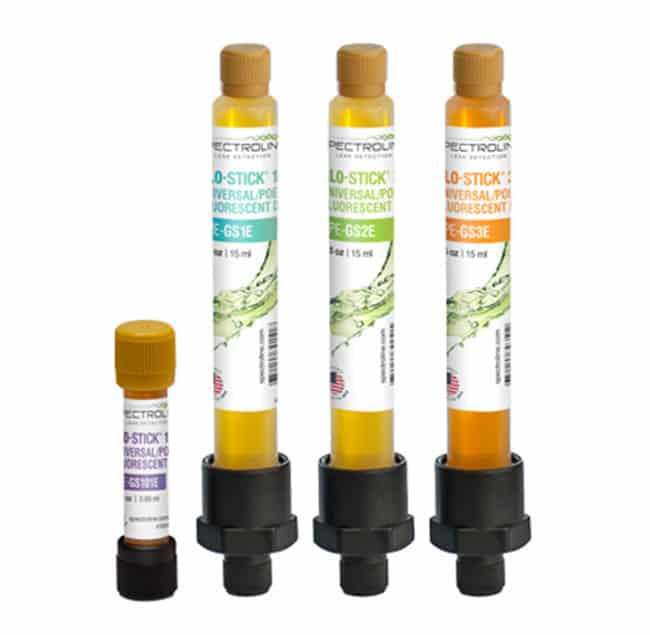

FLUORESCENT DYE CAPSULE SYSTEM
For Small to Medium Size Systems
These prefilled, disposable capsules allow dye to be injected into pressurized systems using refrigerant.
Connect the GLO-STICK® capsule via the low-pressure gauge of a charged manifold and the service port using bleed valves.
Available in 4 sizes / concentrations for different sized AC&R systems. Fast and easy servicing. Works in all systems, including high-pressure R-410A systems!
GLO-STICK® Fluorescent Dye Capsule System Convenient, mess-free, single-dose capsules. Add refrigerant and fluorescent dye in one simple step. „Available in 4 sizes/concentrations to match the capacity of the system. Inject dye while charging with refrigerant, or when connecting from the high side to the low side.
FEATURES:
- For use with Spectroline GLO-STICK® COMPLETE Fluorescent Leak Detection Kit SPE-HVLGSE
- One capsule, one system
- Easy to add
- Four simple sizes
OPTIONS:
SPE-GS101E-P6 Pack of 6 x 8.9 ml (0.3 oz) universal/POE dye capsules
SPE-GS1E-P6 – Pack of 6 x 15 ml (0.5 oz) universal/POE dye capsules
SPE-GS2E-P6 Pack of 6 x 15 ml (0.5 oz) universal/POE dye capsules
SPE-GS3E-P6 Pack of 6 x 15 ml (0.5 oz) universal/POE dye capsules
SPECIFICATIONS:
SPE-GS101E-P6 GLO-STICK® 101E
(6) GLO-STICK® 101E 0.03 oz (0.89 ml) fluorescent dye capsules. Each capsule treats up to 15 oz (445 ml) of lubricant or 2.9 lbs (1.3 kg) of refrigerant.
SPE-GS1E-P6 GLO-STICK® 1E
(6) GLO-STICK® 1P 0.5 oz (15 ml) fluorescent dye capsules. Each capsule treats up to 15.1 oz to 1.6 qt (445 ml to 1.5 L) of lubricant or 3 to 4.9 lbs (1.4 to 2.2 kg) of refrigerant.
SPE-GS1E-P6 GLO-STICK® 2E
(6) GLO-STICK® 2PVE 0.5 oz (15 ml) fluorescent dye capsules. Each capsule treats up to 1.7 to 3.2 qt (1.6 to 3.0 L) of lubricant or 5 to 9.9 lbs (2.3 to 4.5 kg) of refrigerant.
SPE-GS1E-P6 GLO-STICK® 3E
(6) GLO-STICK® 3PVE 0.5 oz (15 ml) fluorescent dye capsules. Each capsule treats up to 3.3 qt to 2 gal (3.1 to 7.6 L) of lubricant or 10 to 25 lbs. (4.6 to 11.3 kg) of refrigerant.
