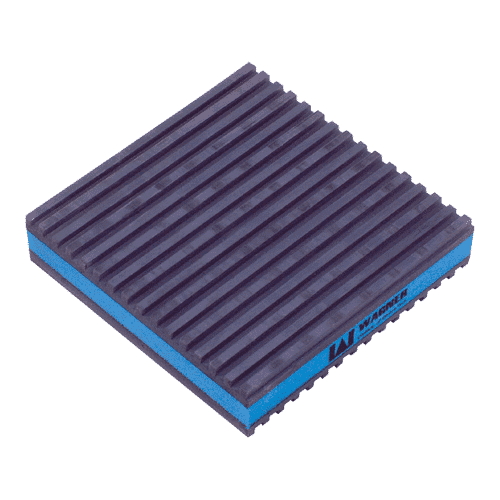

Diversitech E.V.A Anti-Vibratrion Pad

Description

The BEST Performer E.V.A. (Extreme Vibration Attenuation) is the latest generation in vibration dampening technology. In the most severe vibration extremes, testing shows the E.V.A. pad outperforms cork and rubber by greater than 3:1 and outperforms our competitor’s “waffle” pad by greater than 8:1! The enhanced performance comes from the special composite foam center which is structurally more sound than cork. E.V.A. is not affected by oils or chemicals that can break down cork and is much more effective at vibration dampening than solid rubber. Designed to withstand 50 psi.

FEATURES:

• Superior performance is due to the special composite polymeric foam centre
• Rubber pads are corrugated on both sides and laminate to the polymeric foam rubber centre
• The top and bottom ribs are 90 degrees opposed to one another which provides a natural resistance to “creep” or “walking” associated with vibrations
• The EVA pad is highly resistant to water absorption, acid, alkali, gasoline, oil, aromatic hydrocarbons, ketones, oxidation and ozone
• Ideal for air conditioners, refrigeration equipment, compressors, cooling towers, presses, machines or anywhere vibration control is needed
• Designed to withstand loads of 50 psi
• Can be used indoors or outdoors.

OPTIONS:

• DT-MP-2E : CTN-48
• DT-MP-3E : CTN-36
• DT-MP-4E : CTN-24
• DT-MP-6E : CTN-24
• DT-MP-12E : CTN-12
• DT-MP-18E : CTN-6

SPECIFICATIONS:
