DiversiTech BG-101 Secondary Drain Pan Condensate Sensor

SKU: DT-BG-101
Where To BuyRequest A Quote

BG-101 connects and protects the HVAC circuit by eliminating intermittent condensate tripping thanks to a reliable latching snap action.

Description

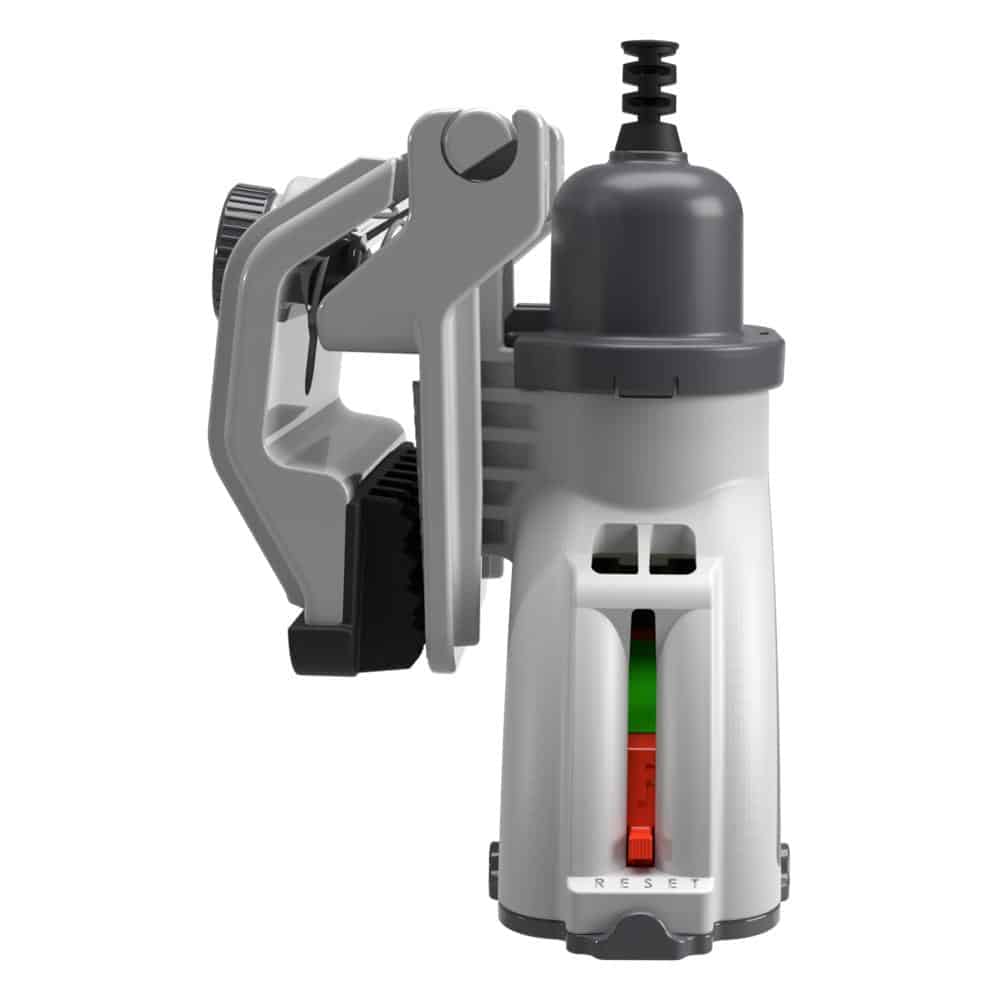

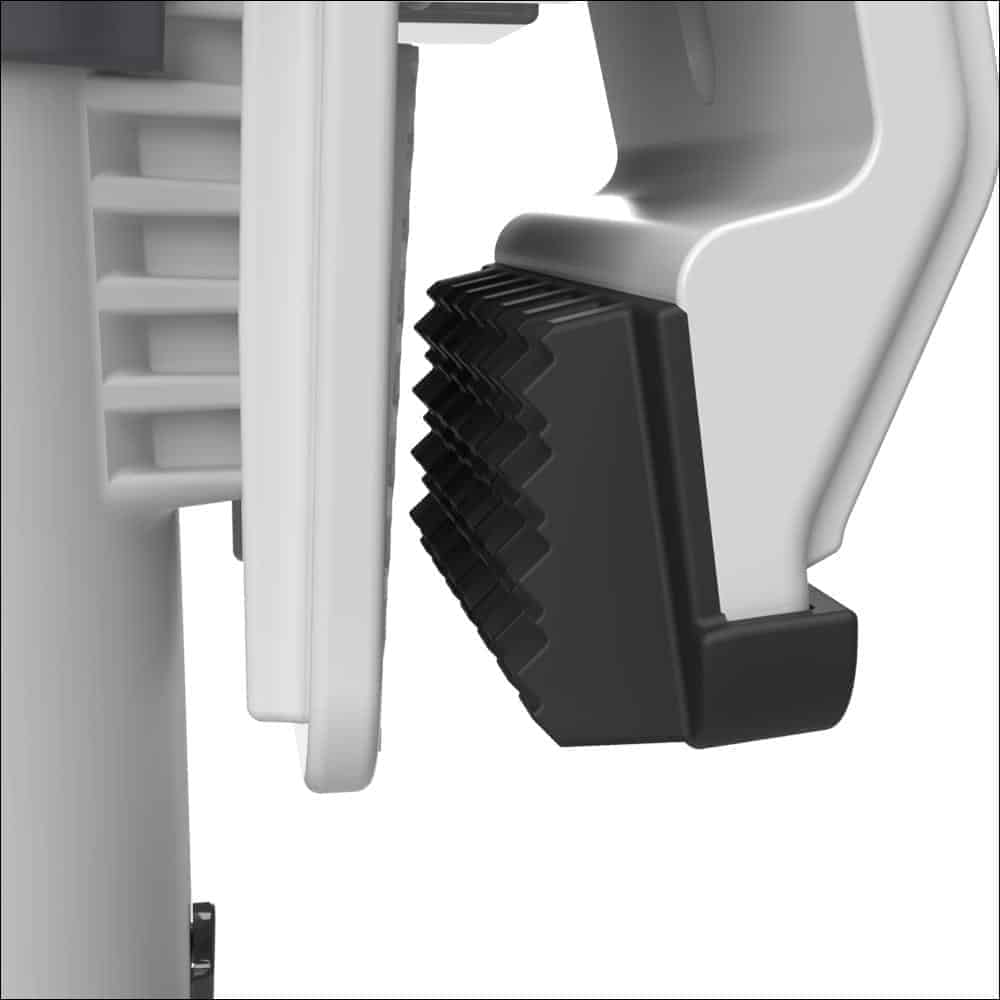

The BG-101 is a revolutionary latching float switch designed with industry-leading innovation and quality. The BG-101 is attached to the side of the secondary drain pan, clamps in place for a secure hold, and it adjusts to the deepest pans on the market. With a triggered depth of 9 mm or .375″ inches, the HVAC system as well as property and valuables will be safe.

The BG-101 connects and protects the HVAC circuit by eliminating intermittent condensate tripping thanks to a reliable latching snap action. Once the latch mechanism is triggered, the power to your air handler will be interrupted, and the system will shut down. The BG-101 will stay latched and the system will remain off, even if the water has receded until it is physically reset by hand.

FEATURES:

  • No more short cycling
  • No more intermittent condensate tripping
  • Easier to diagnose, saving time & money
  • Reliable switch action based on Water level measure
  • Will not false trip due to positive or negative air pressure

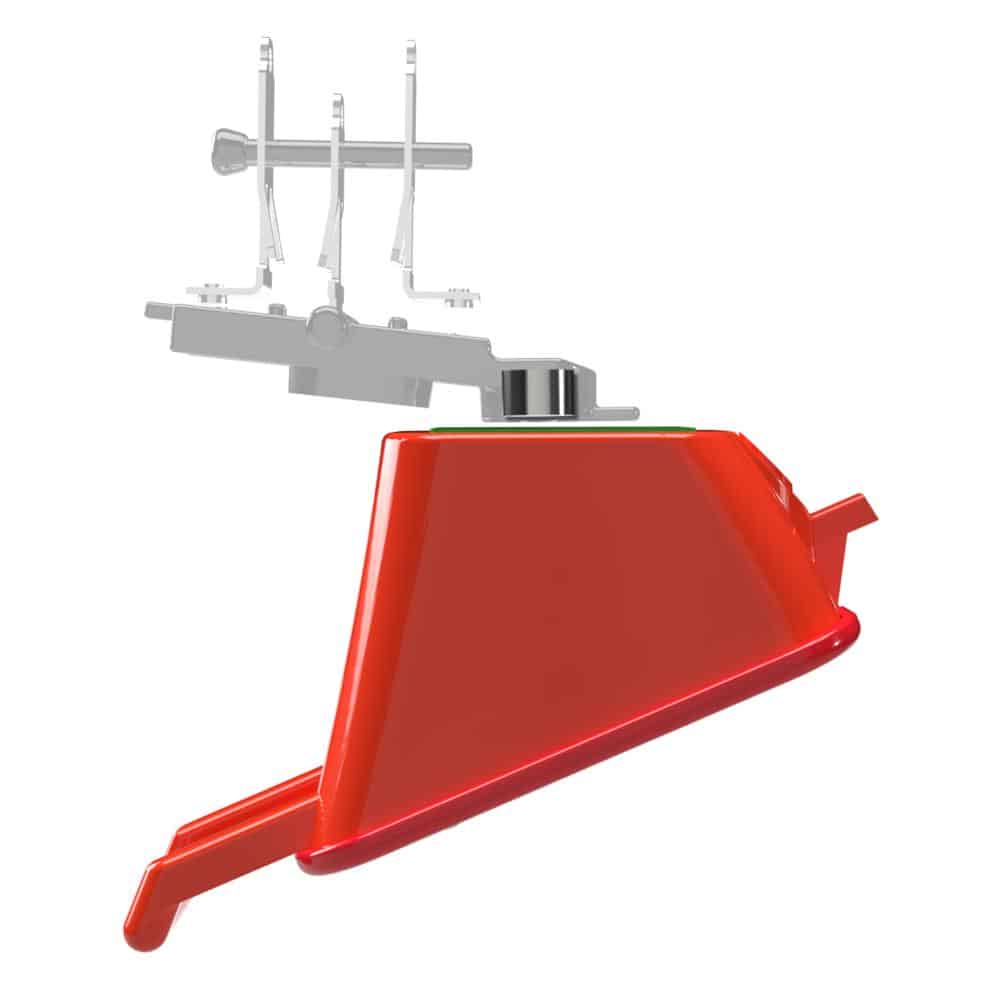

  • Latching snap float switch.

INCLUDES:
1 x  BG-101 Secondary Drain Pan Condensate Sensor, 1 x English manual and 12-month warranty.

SPECIFICATIONS:

  • 24 VAC, 4 AMP
  • UL 508 Approved
  • Wire Length: 60 inches (stripped wires)

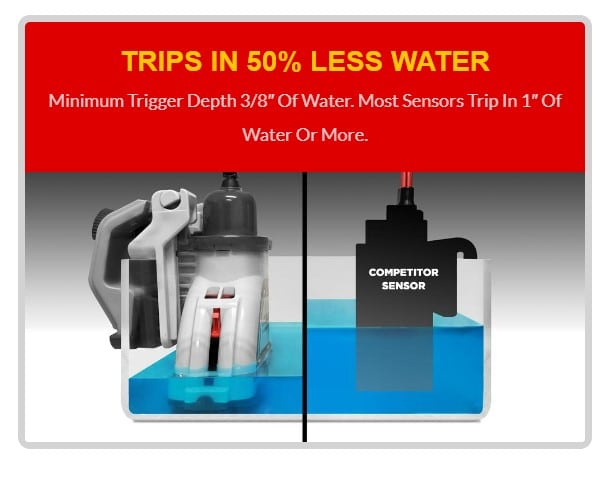

  • Trigger Depth: 3/8 inch.
  • Brand: BigGoose by DiversiTech
