Description

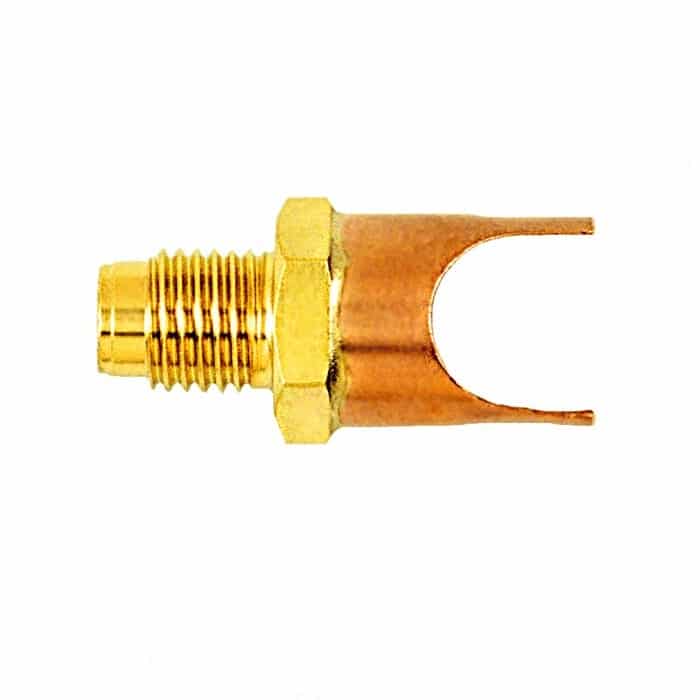

The M-Series is the first and best braze-on, self-piercing copper saddle valve. It is widely used and easily installed on a charged line. After brazing the saddle portion onto the line, the steel pin with the valve core penetrates the line and is locked into place simply by tightening the cap.
FEATURES:
- The first and best braze-on, self-piercing copper saddle valve
- Widely used and easily installed on a charged line
- After brazing the saddle portion onto the line, the steel pin with the valve core penetrates the line and is locked into place simply by tightening the cap.
OPTIONS:
- CD5512: 1/2″ Self Piercing Saddle – Pack of 4
- CD5514: 1/4″ Braze On Piercing Saddle – Pack of 6
- CD5518: 1-1/8″ Self Piercing Saddle Pack of 2
- CD5534: 3/4 Self Piercing Saddle Pack of 2
- CD5538: 3/8 Self Piercing Saddle Pack of 6
- CD5558: 5/8 Self Piercing Saddle Pack of 3.
SPECIFICATIONS:
- Brand: C&D
- Material: Copper
- Maximum Working Pressure: 700 psi
- Country of origin: USA.
