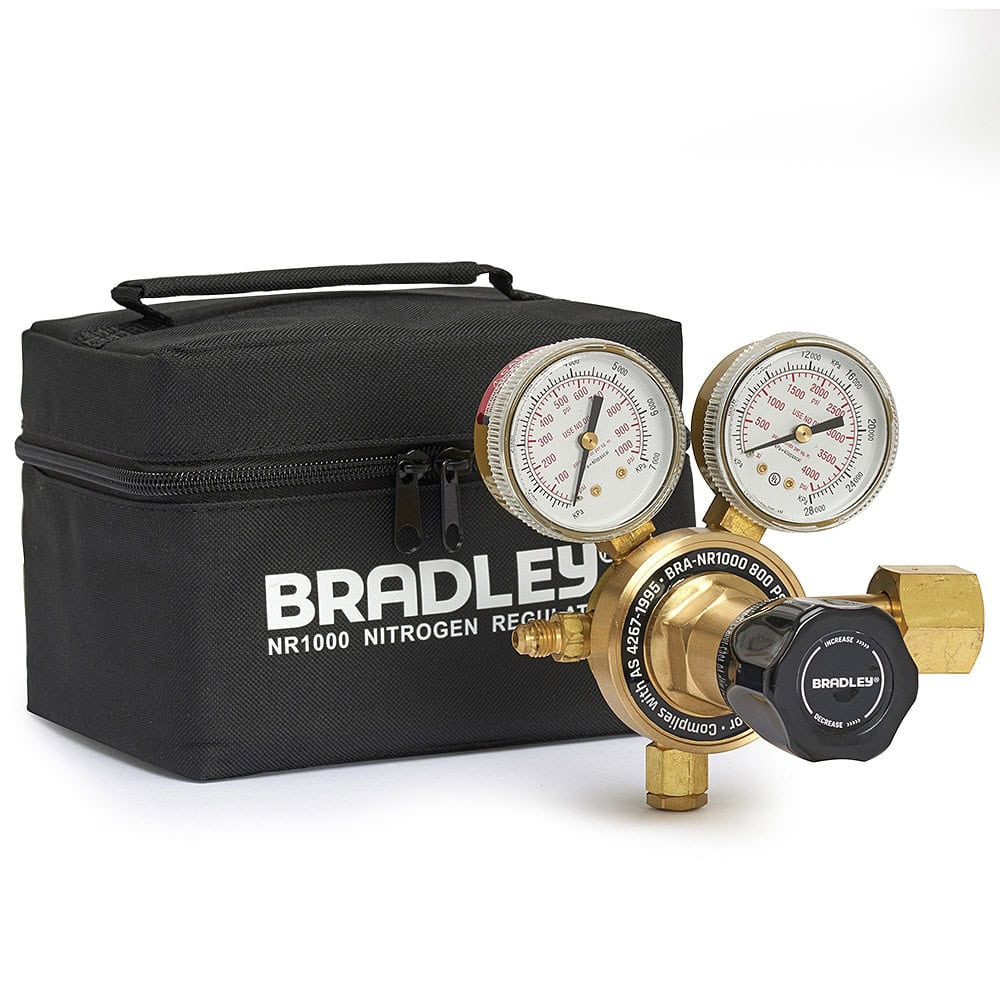

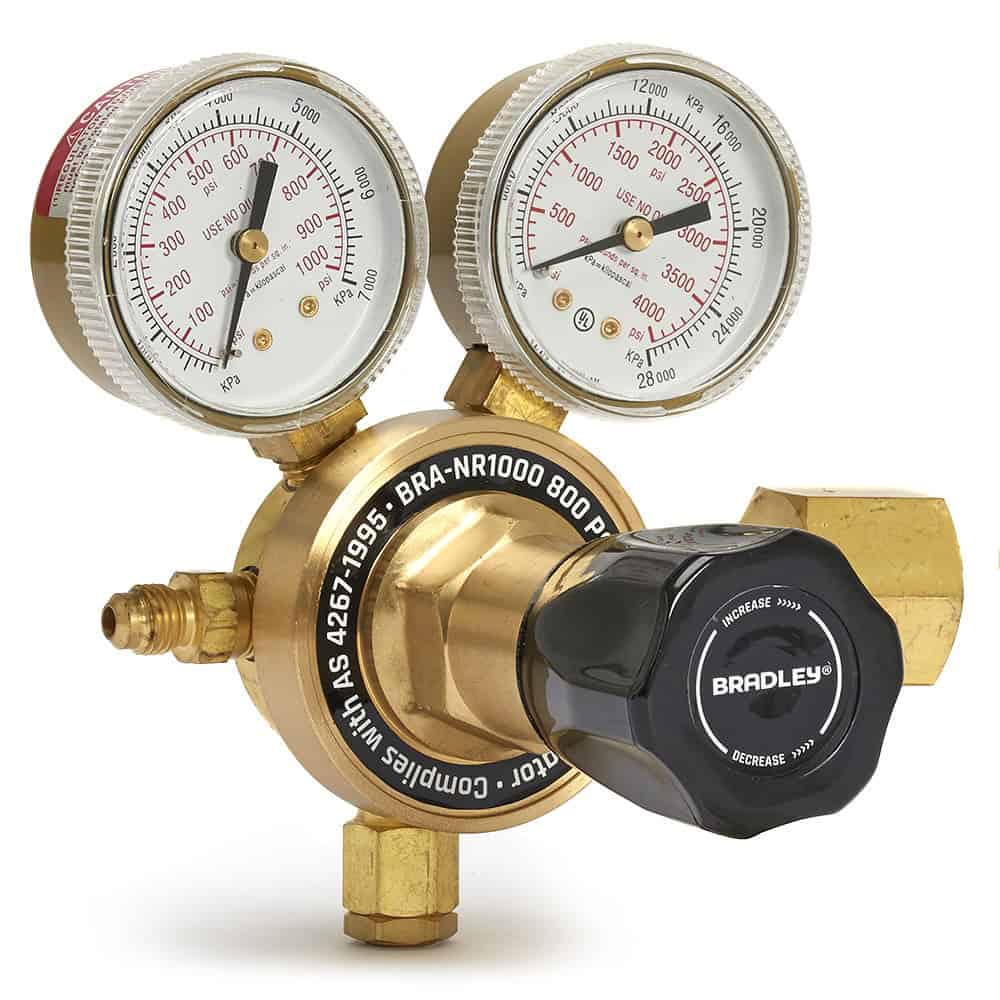

Bradley NR1000 High Pressure Nitrogen Regulator

SKU: BRA-NR1000
Where To BuyRequest A Quote

Bradley NR1000 0 – 800 psi Nitrogen Regulator designed for HVAC/R professionals.

SKU: BRA-NR1000 Categories: , ,

Description

Bradley NR1000 0 – 800 psi Nitrogen Regulator

The Bradley NR1000 Nitrogen Regulator is specifically designed for HVAC/R technicians, testing up to 800 psi for all your testing and evaluating needs. Suitable for high pressure AC systems including R410A and R32. The regulators feature a piston actuated seat for durability and quality neoprene diaphragms.

The NR1000 nitrogen regulator has easy-to-read psi and KPa scale 50mm gauges, with steel case construction and polycarbonate lenses. The regulators include a porous metal inlet filter and a fine mesh filter screen between the inlet and seat. Regulation is by a convenient heavy duty control knob well packaged in a convenient eva foam carry case for easy storage.

FEATURES:

  • Single stage construction
  • Forged brass body & bonnet
  • Neoprene diaphragms
  • Safety relief valve
  • Inlet filter to trap impurities
  • 0 – 800 psi working pressure
  • Complies with AS 4267-1995
  • 12 month warranty.

INCLUDES:

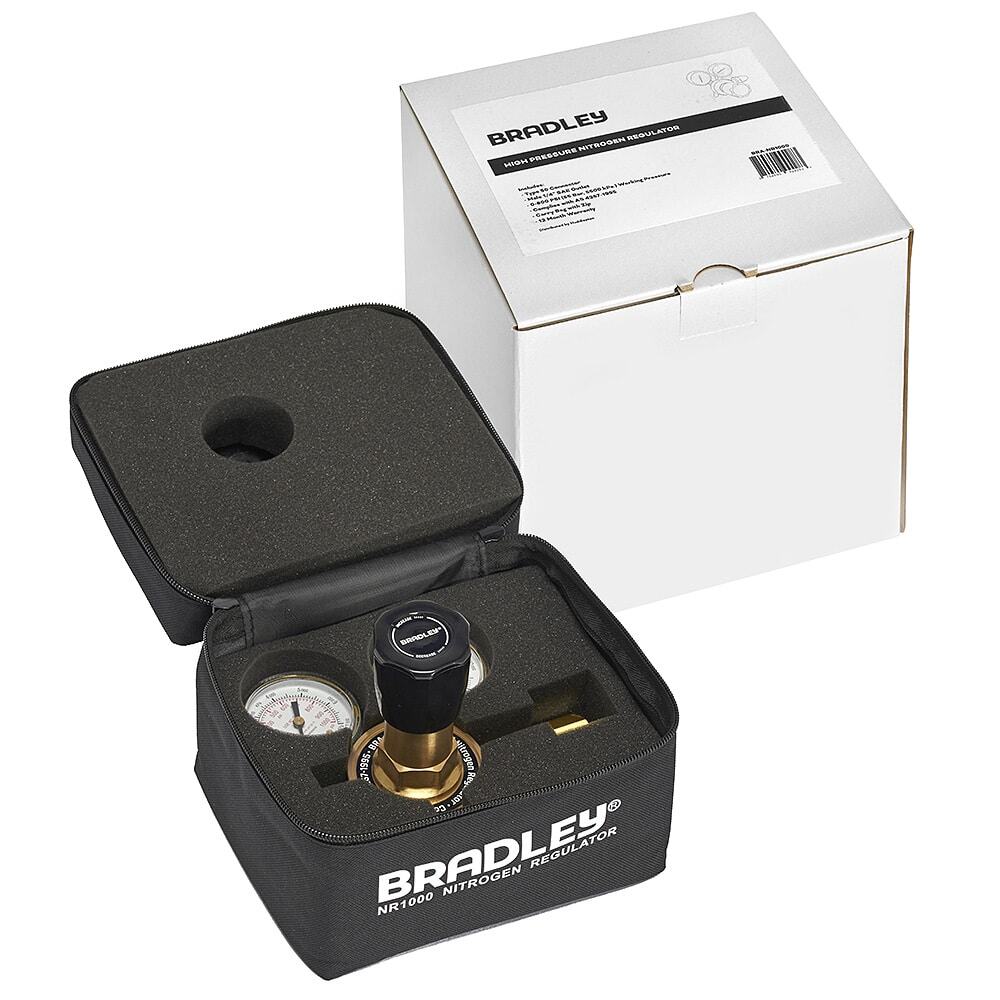

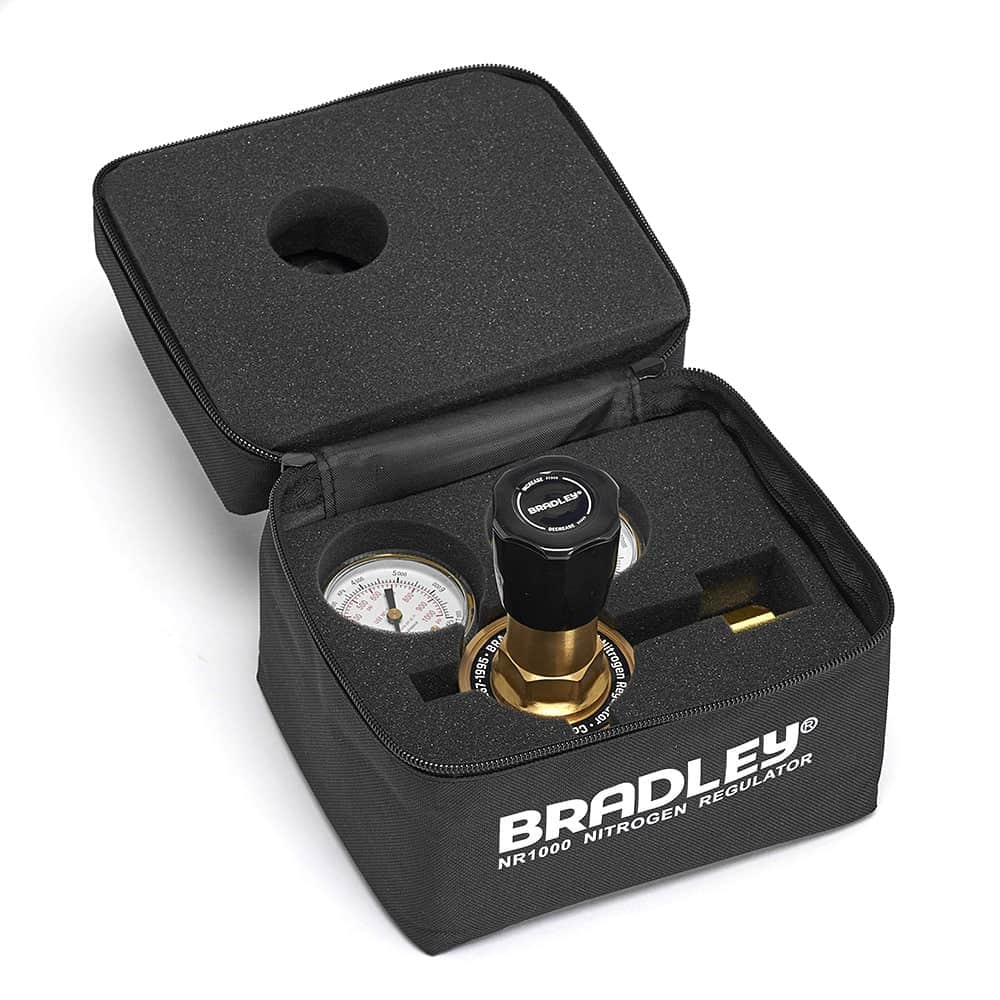

1 X BRA-NR1000 Nitrogen Regulator, 1 x Instruction Manual, 1 x Carry Bag with Zip, 1 x 12 Month Warranty.

SPECIFICATIONS:
INLET FITTING: Type 50 Connector
OUTLET FITTING: Male 1/4″ SAE
WORKING PRESSURE: 0-800 psi (55 (5500 kPa)
GAUGE MEASUREMENTS:  psi & kPa.
SAFETY VALVE MAX PRESSURE:  800 psi
MATERIALS: Brass and Alloy
COUNTRY OF ORIGIN: Taiwan
BRAND: BRADLEY
WARRANTY: 12 Months
PRODUCT WEIGHT: 1.35 KG without case, 1.70 Kg with case.
DIMMENSIONS: 180mm x 150mm x 135mm.

Documents

BRADLEY NR1000 Nitrogen Regulator Instructions
