Accutools BluVac+ Micro Wireless Digital Micron Gauge

SKU: AT-A10730
Where To BuyRequest A Quote

The BluVac+ Micro can be operated stand-alone or in conjunction with an iOS or Android compatible app.

Description

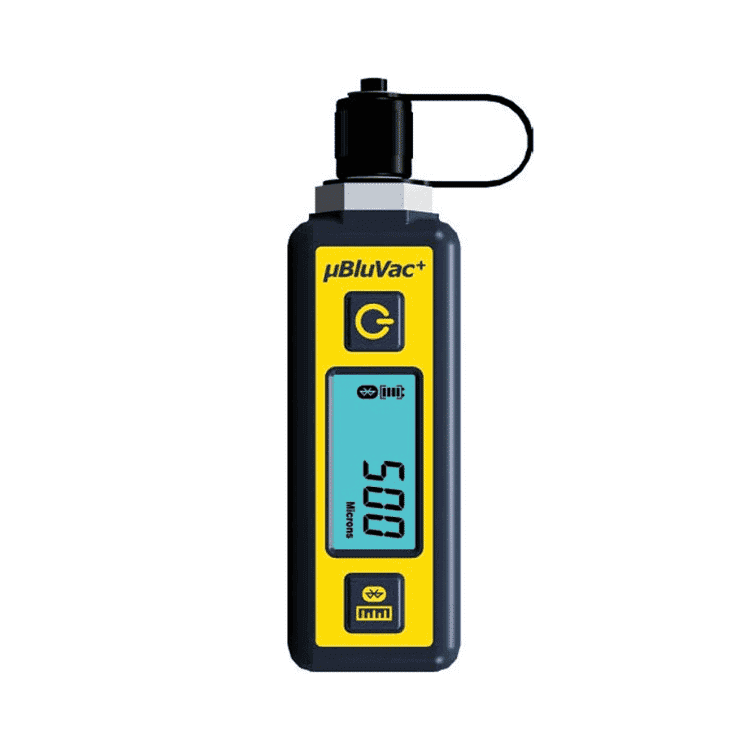

The low-cost AccuTools® BluVac+ Micro Wireless Digital Micron Gauge represents a breakthrough in economical vacuum measurement. Small and light enough to fit in a shirt pocket, the BluVac+ Micro has Bluetooth Smart® wireless capability and is a full-featured basic micron gauge that utilizes our famous patented BluVac+ technology to provide the highest accuracy and dependability at the lowest possible cost. The BluVac+ Micro accurately and quickly measures vacuum in Microns, Pascals, Millibar, mmHg, and Torr with a resolution down to 1 micron. Sporting a large back-lit display, the BluVac+ Micro operates for up to 100 hours on two AAA batteries and at temperatures below freezing.

The BluVac+ Micro can be operated stand-alone or in conjunction with an iOS or Android compatible app.

Possessing the same accuracy and reliability of the BluVac+ Pro gauge, the BluVac+ Micro is ideal for budget-conscious technicians without sacrificing performance.

Innovative Oil Sensor and Self-Diagnostics ensure accuracy. The BluVac+ series of Micron Gauges are the only field-calibratable vacuum gauges that require no special equipment for calibration.



FEATURES:

  • Bluetooth smart® wireless capability
  • 0 to 25,000-micron range with 1-micron resolution
  • Measures vacuum in Microns, Pascals, Millibar, mmHg, and Torr
  • Large, high-visibility back-lit LCD display
  • Long battery life — up to 100 Hours on Two ‘AAA’ alkaline batteries
  • Wide operating temperature range — operates below freezing
  • Automatic oil sensor
  • Rugged, compact design — fits in a shirt pocket
  • Calibration Self Test — can Be Field Calibrated with no special equipment
  • Sensor withstands overpressure up to 500 PSI
  • Ideal for HVAC/R Service, Industrial, and scientific use.

APP FEATURES:

  • View vacuum on digital gauge or graph
  • Leak check feature
  • Record evacuation process
  • Export as graphical PDF
  • Export as comma-delimited CSV.

INCLUDES:

1 x BluVac+ Micro Wireless Digital Micron Gauge, Female-to-Female ¼” Flare Coupler, Storage/Carrying Pouch, Batteries (Two ‘AAA’ Alkaline), Instruction Manual.

SPECIFICATIONS:

Range 0 – 25,000 Microns
(3330 Pa, 33.3 mBar, 25 mmHg, 25 Torr)
Vacuum Accuracy ±5% of Reading ± 5 Microns
Vacuum Resolution 1 Micron at less than 1000 Microns
10 Microns between 1,000 and 10,000 Microns
100 Microns between 10,000 and 25,000 Microns
Maximum Overpressure 1000 PSI
Warm-up Time Instant
Response Time Instant
Power Two ‘AAA’ Alkaline Batteries
Battery Life Up to 100 Hours
Operating Temperature 10°F – 122°F (-12°C – 50°C)
Weight 2.7 oz. (77g) Including Batteries
Dimensions 4.3” x 1.3” x 1”
(11cm x 3.3cm x 2.5cm)
Vacuum Port Fitting ¼” Male Flare
Anodized Aluminum for Weight & Durability
Captured Dust Cap Included
U.S. Patent Nos. 8,504,313 and 8,768,633

Documents

BluVac+ Micro Wireless Digital Micron Gauge English Manual

Technical Matrix BluVac Vacuum Gauges
