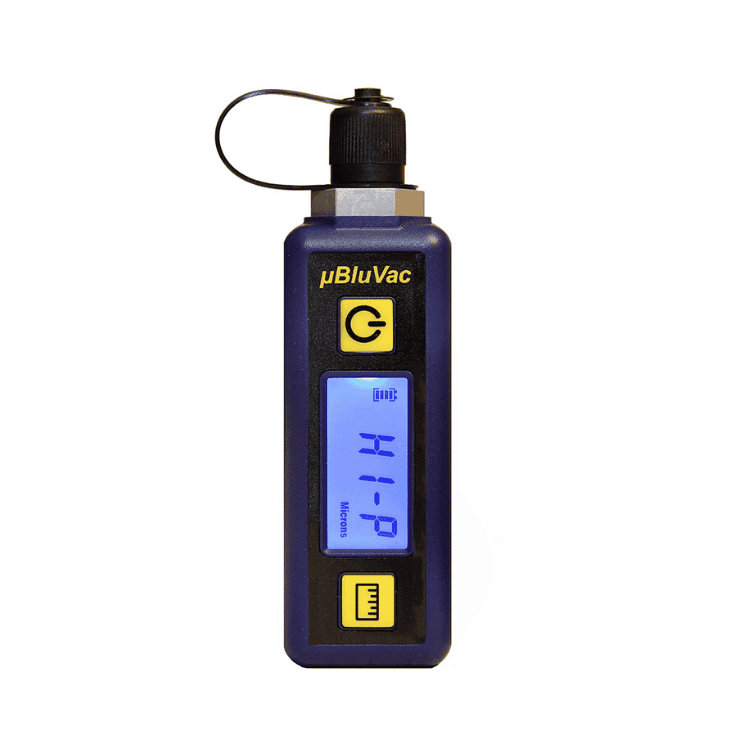

Accutools µBluVac Digital Micron Gauge

SKU: AT-A10673
Where To BuyRequest A Quote

µBluVac is ideal for budget-conscious technicians without sacrificing performance.


AccuTools® µBluVac Digital Micron Gauge represents a breakthrough in economical vacuum measurement. Small and light enough to fit in a shirt pocket, the µBluVac is a full-featured basic micron gauge that utilizes our famous patented BluVac technology to provide the highest accuracy and dependability at the lowest possible cost.The µBluVac accurately and quickly measures vacuum in Microns, Pascals, Millibar, mmHg, and Torr with a resolution down to 1 micron. Sporting a large back-lit display, the µBluVac operates for up to 100 hours on two AAA batteries and at temperatures below freezing.

Possessing the same accuracy and reliability of the standard BluVac gauge, the µBluVac is ideal for budget-conscious technicians without sacrificing performance.

Innovative Oil Sensor and Self-Diagnostics ensure accuracy. The BluVac series of Micron Gauges are the only field-calibratable vacuum gauges that require no special equipment for calibration.


  • 0 to the 25,000-micron range with 1-micron resolution
  • Measures vacuum in microns, pascals, millibar, mmHg, and torr
  • Large, high-visibility back-lit LCD display
  • Long battery life — up to 100 hours on two ‘AAA’ alkaline batteries
  • Wide operating temperature range — operates below freezing
  • Automatic oil sensor
  • Rugged, compact design — fits in a shirt pocket
  • Calibration self-test — can be field calibrated with no special equipment
  • Sensor withstands overpressure up to 500 PSI
  • Ideal for HVAC/R service, industrial, and scientific use.


1 x µBluVac Digital Micron Gauge, 1 x  Female-to-Female ¼” Flare Coupler 1 x Storage/Carrying Pouch, Batteries (Two ‘AAA’ Alkaline) Instruction Manual and 12 Month Warranty.


Range 0 – 25,000 Microns
(3330 Pa, 33.3 mBar, 25 mmHg, 25 Torr)
Vacuum Accuracy ±5% of Reading ± 5 Microns
Vacuum Resolution 1 Micron at less than 1000 Microns
10 Microns between 1,000 and 10,000 Microns
100 Microns between 10,000 and 25,000 Microns
Maximum Overpressure 1000 PSI
Warm-up Time Instant
Response Time Instant
Power Two ‘AAA’ Alkaline Batteries
Battery Life Up to 100 Hours
Operating Temperature 10°F – 122°F (-12°C – 50°C)
Weight 2.7 oz. (77g) Including Batteries
Dimensions 4.3” x 1.3” x 1”
(11cm x 3.3cm x 2.5cm)
Vacuum Port Fitting ¼” Male Flare
Anodized Aluminum for Weight & Durability
Captured Dust Cap Included
U.S. Patent Nos. 8,504,313 and 8,768,633
